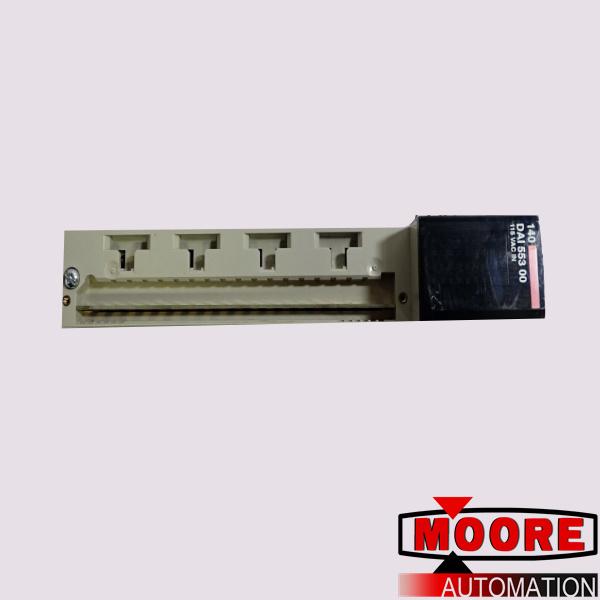

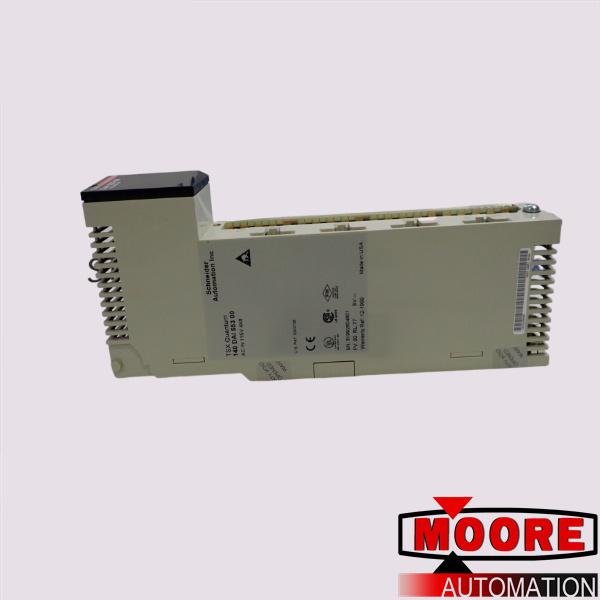

140DAI55300 | Schneider | AC input module

Brand/ Manufacturer:
SCHNEIDER
Dimensions:
5.1cm*10.2cm*25.4cm
Weight:
0.5kg
Country of Origin: :
FRANCE
Description:
Digital Input Module

Inquiry now

Mfr. Part Number:	140DAI55300

Manufacturer:	Schneider

Description:	Schneider Modicon Quantum 140DAI55300 AC Input Module IN STOCK READY TO SHIP

Full Description:	Product Parameters: 140DAI55300 AC Input ModuleINPUT MODULE;DISCRETE;32 POINT;115 VAC

Sales manager: Tiffany Guan plcsale@mooreplc.com + 86 18030235313 dddemi33 2851195473

Main
Range of product	Modicon Quantum automation platform
Product or component type	VAC discrete input modules
Software name	Unity Pro
Discrete input number	32

Complementary
Group of channels	4
Addressing requirement	2 input words
Discrete input voltage	115 V AC
Input current	11.1 mA at 57...63 Hz 13.2 mA at 47...53 Hz
Voltage state 1 guaranteed	79...132 V AC at 57...63 Hz 85...132 V AC at 47...53 Hz
Voltage state 0 guaranteed	0...20 V AC at 57...63 Hz 0...20 V AC at 47...53 Hz
Input impedance	12000 Ohm capacitive at 57...63 Hz 14400 Ohm capacitive at 47...53 Hz
Network frequency limits	47…63 Hz
maximum leakage current	2.1 mA
Absolute maximum input	132 V continuous
Response time	4.9...0.75 ms x line cycle Off-On
Isolation between group	1780 Vrms for 1 minute
Isolation between group and bus	1780 Vrms for 1 minute
Bus current requirement	250 mA
Maximum power dissipation in W	10.9 W
