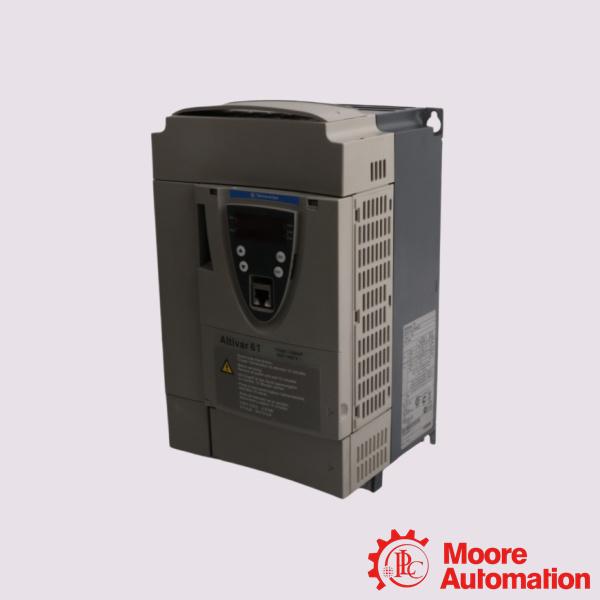

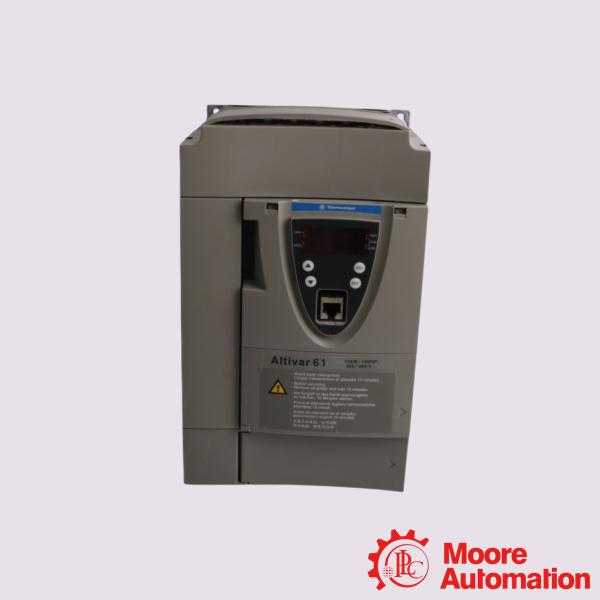

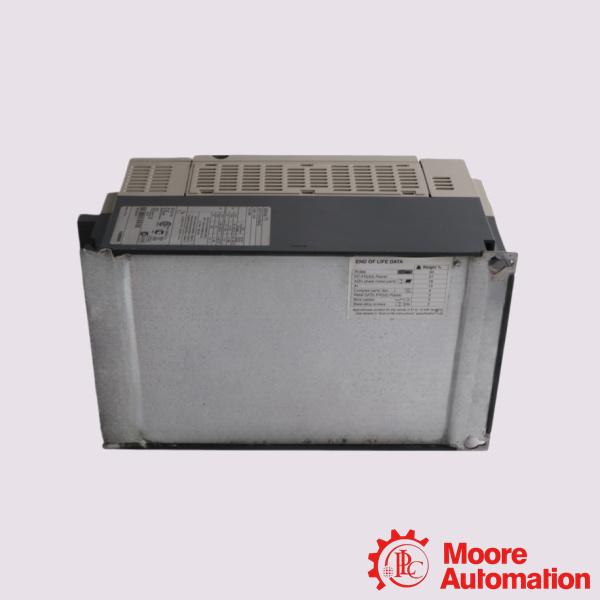

ATV61HD75N4 | Schneider Variable speed drive

in stock#

Brand/ Manufacturer:
Schneider
Dimensions:
17.5x16x32cm
Weight:
5.54 kg
Country of Origin: :
FRANCE
Description:
Schneider ATV61HD75N4 Variable speed drive

Inquiry now

Mfr. Part Number:	ATV61HD75N4

Manufacturer:	Schneider

Description:	Schneider ATV61HD75N4 Variable speed drive

Full Description:	The Schneider ATV61HD75N4 Variable Speed Drive is a 3-phase system

Status:	In stock

Click to get price : : plcinfo@mooreplc.com : +86 18020776786 : mooreplc

Moore Automation Limited is not affiliated with or a distributor for Schneider. The depiction, description, or sale of products featuring names, trademarks, brands, and logos is for identification and/or reference purposes only and does not indicate any affiliation with or authorization by any rights holder.

Product Description:
The Schneider Electric ATV61HD75N4 is a variable-speed drive ideal for a wide range of motor control scenarios. It power output of 75 kW, translating to a maximum horsepower rating of 100 HP.This drive achieves versatility in voltage, accommodating supply voltages from 380 to 480 V in a three-phase format. A key feature is its integrated EMC filter, which enhances system performance by mitigating electromagnetic disturbances. Switching frequency is highly adaptable, with a range from 1 kHz to 16 kHz.

It is particularly effective in optimizing motor control dynamics at a typical nominal frequency setting of 12 kHz.This drive can handle transient currents up to 94.8 A for short bursts lasting 60 seconds, making it suitable for applications that experience variable load conditions. With an apparent power rating of 55.3 kVA at 380 V in a three-phase setup, the ATV61HD75N4 is prepared for demanding operational requirements.

Application:

Water treatment and municipal engineering: Flow regulation of booster pumps, aeration fans and dosing pumps.
Industrial production support: Cooling water circulation systems in chemical plants and steel mills.
Dust removal systems: High-power exhaust fans in cement plants and wood processing factories.
Oil and gas: Small and medium-sized oil fields' injection pumps and fluid transportation pumps in oil refineries.

Frequently Asked Questions (FAQ)

Q:What is the motor power rating of the Schneider ATV61HD75N4?
A:The Schneider ATV61HD75N4 supports a motor power of 75 kW for 3-phase systems operating at 380–480 V.

Q:What communication interface does the Schneider ATV61HD75N4 support?
A:The Schneider ATV61HD75N4 supports a 2-wire RS485 interface using Modbus protocol for reliable industrial communication and integration.

Q:What shipping methods are used for ATV61HD75N4?
A:Major carriers like FedEx, DHL, and UPS are primarily used for worldwide delivery.

If you need other brands products like below, please feel free write email to plcinfo@mooreplc.com

You will get Best price and Professional service (24/7)

Detailed Parameter	Part Number: ATV61HD75N4
Motor Power	75 kW (3 phases at 380...480 V)
Rated Supply Voltage	380...480 V (-15...10%)
Network Number of Phases	3 phases
Nominal Switching Frequency	12 kHz
Supply Voltage Limits	323...528 V
Supply Frequency	50...60 Hz
Output Frequency	0.1...500 Hz
Analogue Input Number	2
Physical Interface	2-wire RS 485 for Modbus
Shock Resistance	15 gn for 11 ms
Ambient Air Temperature for Operation	-10...50 °C without derating
Ambient Air Temperature for Storage	-25...70 °C
