Schneider TSXP573634M Modicon Premium high-performance automation processor

Description

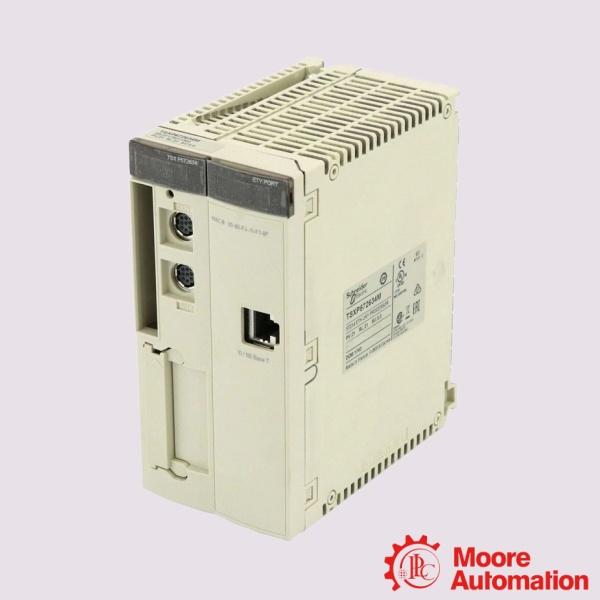

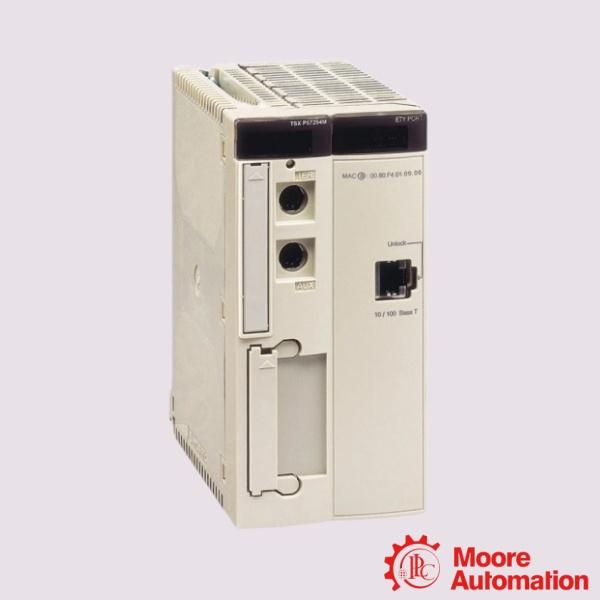

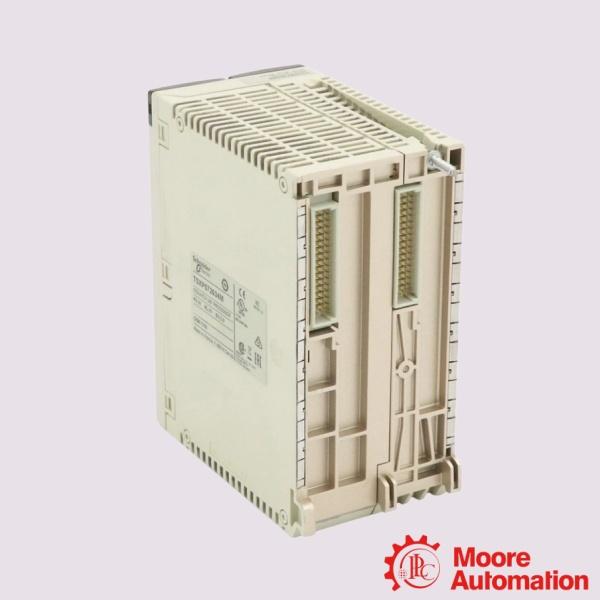

The Schneider Electric TSXP573634M is a Unity processor for the Modicon Premium automation platform. It manages the execution of the PLC application, communication services, and data exchange for the complete controller station. The processor includes an integrated 10/100Base-T Ethernet TCP/IP interface together with a non-isolated RS-485 serial port, allowing communication with supervisory systems, programming software, and compatible field devices. The processor contains 192 KB of internal RAM for application data and supports PCMCIA memory cards for program storage and additional data capacity. It can be installed in systems containing up to eight 12-slot racks or sixteen 4-, 6-, or 8-slot racks, providing support for as many as 1024 discrete I/O points and 128 analog I/O points. Application execution includes one master task, one fast task, and up to sixty-four event tasks, allowing different control functions to operate within the same controller. The TSXP573634M operates with Unity Pro engineering software and forms the central processing unit of the Modicon Premium PLC system. It exchanges data with local and remote I/O modules, communication modules, and operator interfaces while maintaining program execution, diagnostics, and network communication during normal system operation.

Parameter

Model: TSXP573634M Modicon Premium high-performance automation processor
Number of process control channel: 15 up to 45 simple loops
Current consumption: 1900 mA 5 V DC
Ambient air temperature for operation: 32 to 140 °F (0 to 60 °C)
Ambient air temperature for storage -13 to 158 °F (-25 to 70 °C)
Operating altitude: 0 to 6561.68 ft (0 to 2000 m)
IP degree of protection: IP20

Frequently asked questions

Q:What is the Schneider TSXP573634M?
A:The TSXP573634M is a Unity processor for the Modicon Premium automation platform. It performs program execution, I/O management, communication handling, and system diagnostics for the PLC station.

Q:Which programming software is used with the TSXP573634M?
A:The processor is programmed with Unity Pro engineering software and is intended for Modicon Premium controllers using the Unity platform.

Q:What task structure does the TSXP573634M support?
A:The processor operates with one master task, one fast task, and up to sixty-four event tasks, allowing different control functions to run within the same PLC application

Application areas

• Paint, Coating, & Resin Blending Skids: Controls automated ingredient feed-valves and mixer agitation motors, executing precision multi-recipe batch cycles programmed via Unity Pro software.
• Automotive Body Shop & Parts Assembly Lines: Deployed across multi-rack setups (up to eight 12-slot configurations) to aggregate pneumatic limit switches, safety light curtains, and proximity sensors governing robot cell operations.
• Automated Bottling, Filling, & Capping Machinery: Executes high-speed product sensing and injection tracking on high-output liquid filling lines, coordinating conveyor encoders and pneumatic reject gates without processing lag.
