NTAI05 | ABB | Termination Unit

Order(MOQ):
1
Brand/ Manufacturer:
ABB
Dimensions:
18cm*17.6cm*2cm
Weight:
0.4kg
Country of Origin: :
Sweden
Description:
Analog Input Termination Unit

Inquiry now

Mfr. Part Number:	NTAI05

Manufacturer:	ABB

Description:	ABB Type Designation:NTAI05 Catalog Description:AI Termination Unit High Level 16 CH In stock ready to ship

Full Description:	The NTAI05 Analog Input Termination Unit inputs 15 or 16 channels of analog signals depending on slave module type. It connects a slave module to field equipment and Bailey Controls smart transmitters.

Sales manager: Tiffany Guan plcsale@mooreplc.com + 86 18030235313 dddemi33 2851195473

General Information
Product ID:NTAI05
ABB Type Designation:NTAI05
Catalog Description:AI Termination Unit High Level 16 CH
Long Description:Use with FEC, NKTU

Termination units provide an input from the plant equipment to the INFI 90® modules. The NTAI05 Analog Input Termination Unit connects the IMASM01 and NASM01 Analog Slave Modules, or the IMASI02 and NASI02 Analog Slave Input Modules, or the IMFBS01 Field Bus Slave Module with two-wire transmitters.

The NTAI05 Analog Input Termination Unit inputs 15 or 16 channels of analog signals depending on slave module type. It connects a slave module to field equipment and Bailey Controls smart transmitters. The signals pass through slave modules to the IMMFP01, IMMFP02 and IMMFP03 INFI 90 Multi-Function Processors, IMAMM03 Analog Master Modules or NMFC03, NMFC04 and NMFC05 Multi-Function Controllers.

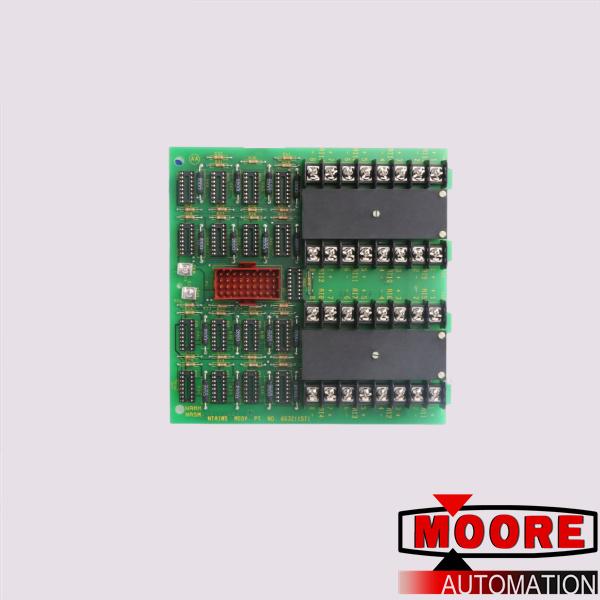

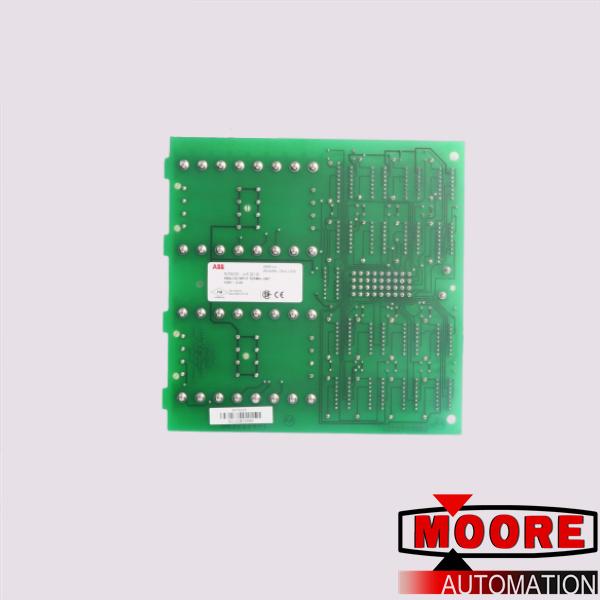

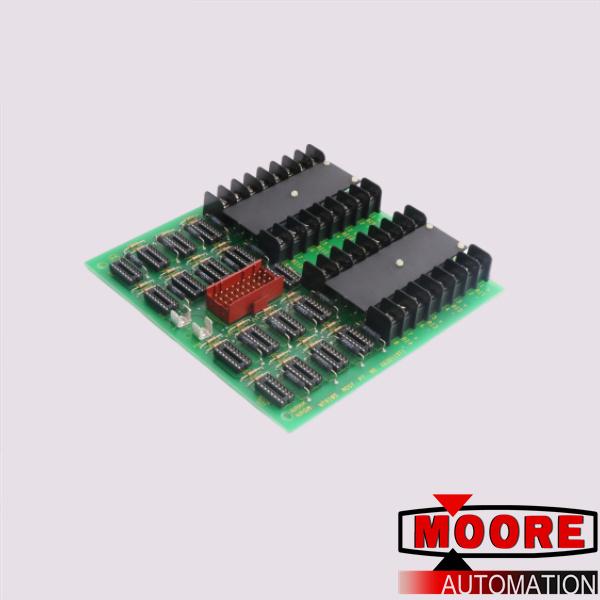

The NTAI05 unit is a single printed circuit board that mounts to an NFTP01 Field Termination Panel. The termination unit (TU) has one cable connector for signals. P1 carries the inputs to the slave module through the cable. The terminal blocks for field wiring are on the termination unit.

The dipshunts on the NTAI05 unit set the input type. Refer to the appendix for the switch settings of the slave module used. Be sure to check the switch setting before inserting the module into the module mounting unit (MMU).
