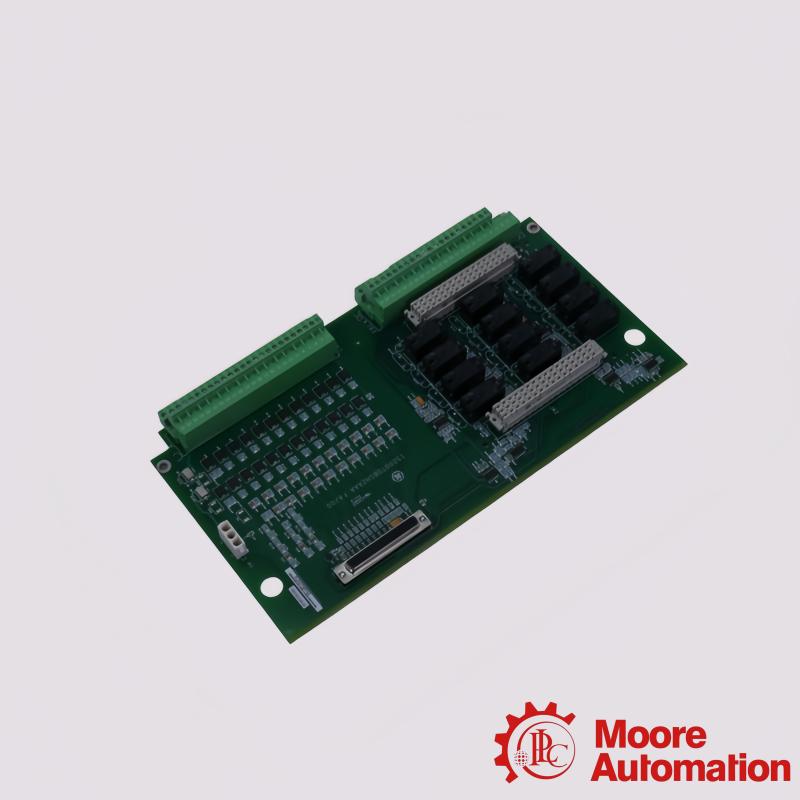

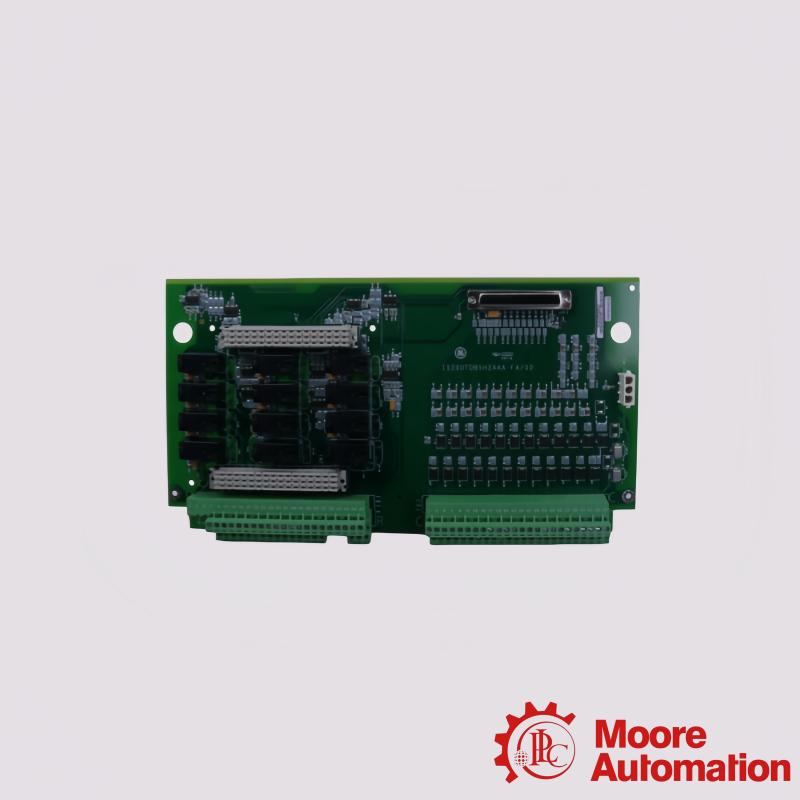

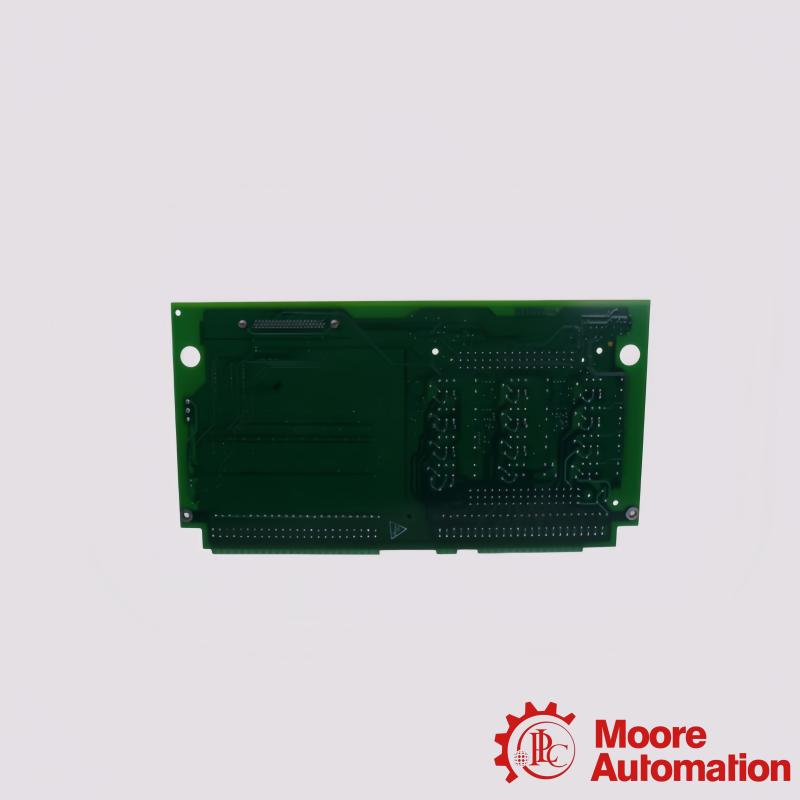

IS200TDBTH2A | General Electric Discrete Input/Output Terminal Board

Description

The General Electric IS200TDBTH2A is a discrete I/O terminal board supporting 24 group-isolated contact inputs and 12 Form-C relay outputs in low-voltage 24 Vdc applications. Featuring conformal coating, this DIN-rail mounted unit operates with PDIO I/O packs for turbine control and supports Triple Modular Redundancy (TMR) configurations. It operates in conjunction with the PDIO I/O pack to facilitate discrete signaling in turbine control applications.

Parameter

Input Channels: 24 Group-Isolated Contact Inputs
Output Channels: 12 Form-C (SPDT) Relay Outputs
Nominal Wetting Voltage: 24 Vdc (Voltage range: 16 to 32 Vdc)
Connector Ports: Three 37-pin D-type connectors (JR1, JS1, JT1)
Inputs 1 through 21 are current-limited to 2.5 mA.
Relay Contact Rating: Supports up to 5 A of current; designed with a voltage clearance of over 250 V AC.

Frequently asked questions

What I/O pack can the IS200TDBTH2A work with?
It can be used with the PDIO I/O pack.

Are there any option boards that can be connected to the IS200TDBTH2A?
Yes,it can be used to provide power distribution with inductors and fuses for the first 6 outputs. The board also provides a dedicated power supply for the last output.

Does the IS200TDBTH2A contain configurable hardware jumpers?
No. It has no hardware jumpers or DIP switches; all input and output functions are logically configured by the connected I/O packs via software.

Application areas:
Power Generation: This is the primary application scenario for this module, used in Speedtronic control systems for gas turbines and steam turbines.

Oil & Gas: Used for energy management, compressor control, and related automation links on onshore or offshore platforms.

Petrochemicals: Responsible for acquiring field signals and executing control commands in complex chemical processes.

Heavy Industrial Manufacturing: Widely used in paper, printing, metallurgical, and steel plants requiring highly reliable PLC systems.
