IS200EDEXG1A | General Electric EX2100 De-Excitation Module

in stock#

Brand/ Manufacturer:
General Electric
Dimensions:
2.5 cm x 10.8 cm x 12.7 cm
Weight:
0.1 kg
Country of Origin: :
USA
Description:
General Electric IS200EDEXG1A EX2100 De-Excitation Module

Inquiry now

Mfr. Part Number:	IS200EDEXG1A

Manufacturer:	General Electric

Description:	General Electric IS200EDEXG1A EX2100 De-Excitation Module

Full Description:	General Electric IS200EDEXG1A EX2100 De-Excitation Module The GE Industrial Systems IS200EDEXG1A is a De-Excitation Board is the Main Board in a De-Exitation Module for the EX2100 Series. Specifically, the G1A (Group 1) version functions for SCR De-excitation

Status:	In stock

Click to get price : : plcinfo@mooreplc.com : +86 18020776786

: live:onlywnn_1 : mooreplc

Moore Automation Limited is not affiliated with or a distributor for . The depiction, description, or sale of products featuring names, trademarks, brands, and logos is for identification and/or reference purposes only and does not indicate any affiliation with or authorization by any rights holder.

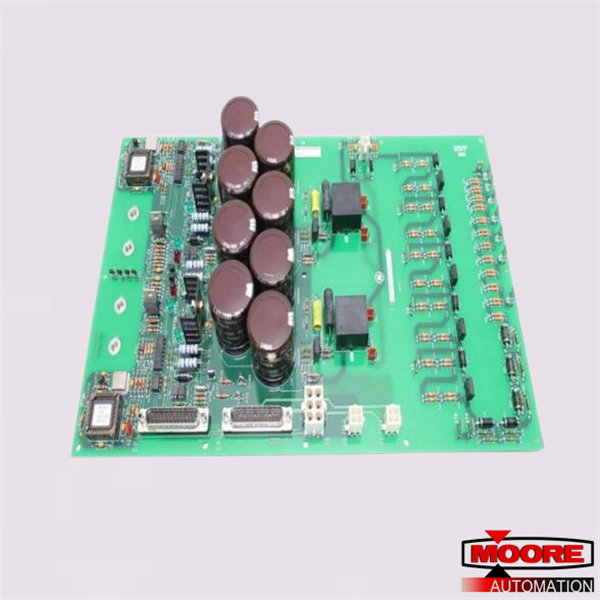

The GE Industrial Systems IS200EDEXG1A is a De-Excitation Board is the Main Board in a De-Exitation Module for the EX2100 Series. Specifically, the G1A (Group 1) version functions for SCR De-excitation. Both the G1 and G2 version of the EDEX Board are covered in-depth in the GEI-100466 product instruction manual. The IS200EDEXG1A receives power input of 24VDC from the EPSM module which coverts it from 125VDC.

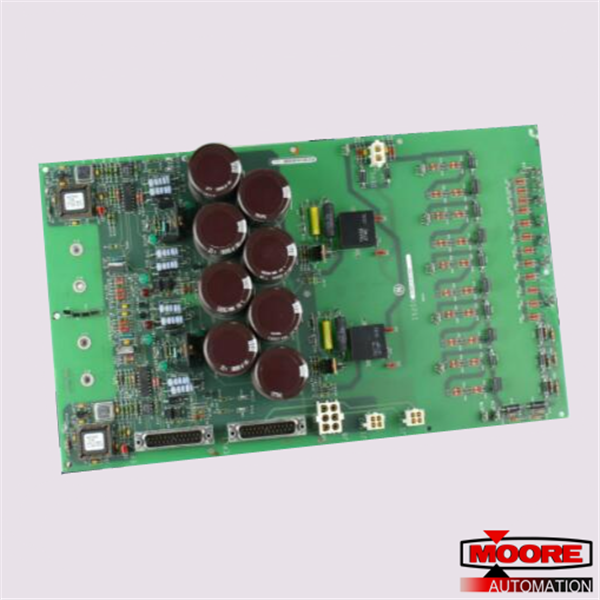

The IS200EDEXG1A Board has the following on-board hardware and connection ports. It features 6 configurable jumpers from JP1-JP6 along with ports at J1, DEPL, J8, and EPL. It features Qty 8 35v 1800uF Capacitors. This board also has Hall Effect conduction sensors that sense the magnetic field when it is rendered by discharge current that is passing through the thyristor.

If you need other brands products like below, please feel free write email to plcinfo@mooreplc.com

You will get Best price and Professional service (24/7)

Common Revisions	ABA
Configurable Jumpers	JP1, JP2, JP3, JP4, JP5, JP6
Functional Acronym (Abbreviation)	EDEX
Manual	GEI-100466 (Series Manual GEH-6632)
Manufacturer	GE Industrial Systems, General Electric Company USA
Part / Model Number	IS200EDEXG1A
Product Type	De-Excitation Module Main Board
Repairable Y/N	Yes
Series	EX2100 Excitation Control System
Version	Group 1 (G1) - Designed for SCR De-Excitation
Weight	3lbs 6oz
