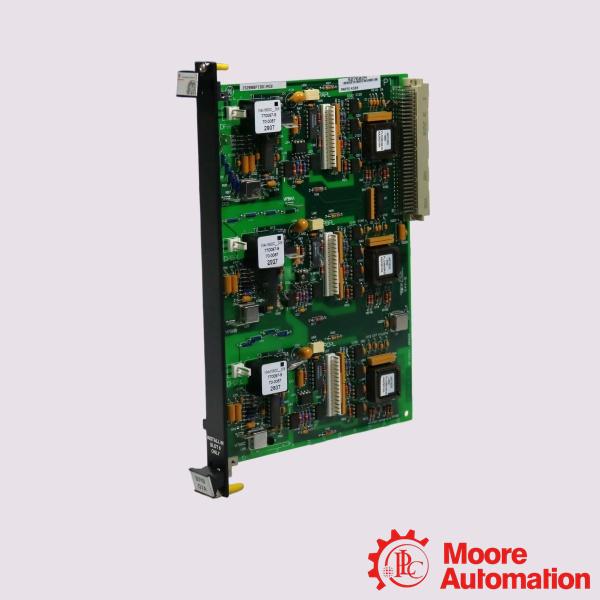

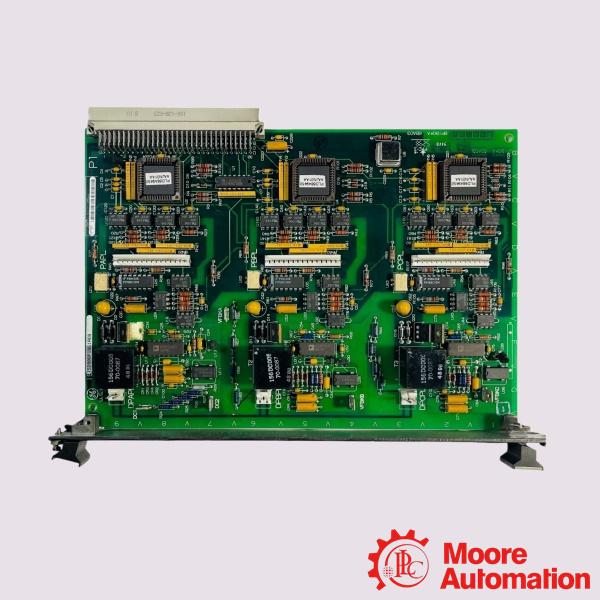

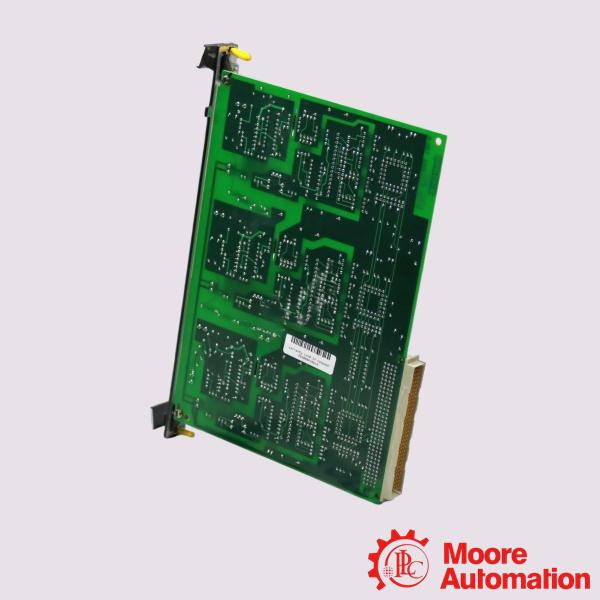

The GE IS200BPIBG1A / IS200BPIBG1AEB Phase Logic Interface Module is designed as part of GE’s industrial control and protection systems, providing reliable phase logic processing and signal interfacing. It features a 1024-bit serial memory chip and supports up to 40 input channels, enabling efficient handling of multiple control signals in complex automation environments.

The module operates on a 24 VDC supply and delivers an output current range of 0.5 A to 2 A, making it suitable for a variety of industrial control loads. It also provides strong electrical isolation with a rating of 2500 V, ensuring system safety and noise immunity. With a fast response time of less than 10 ms, the GE IS200BPIBG1A / IS200BPIBG1AEB ensures precise and timely signal processing in demanding real-time applications.

Application:
Electric power industry: Management and protection systems for gas turbines and steam turbines.
Energy management: Source bridge excitation cabinets in the excitation control system of power plants.
Heavy industry drives: High-voltage frequency converters are responsible for the signal processing and fault capture of IGBT power devices.
Oil and gas: Power station control for offshore platforms or refineries.
