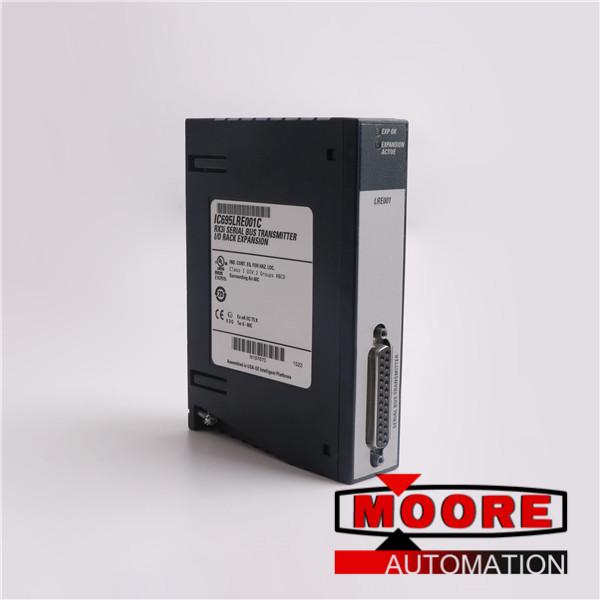

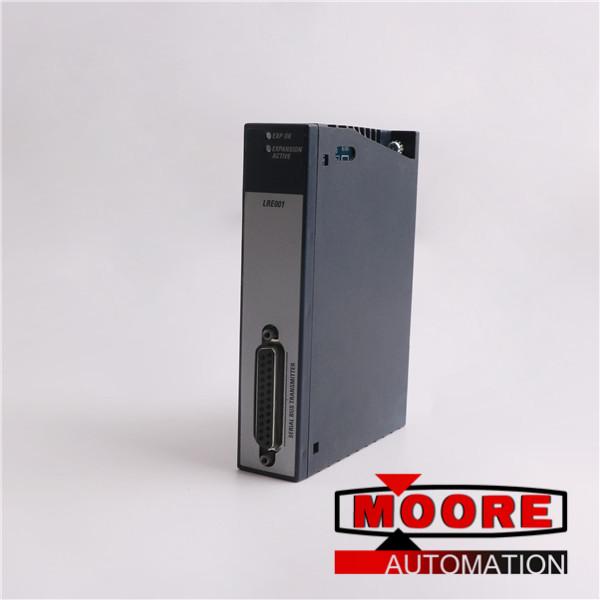

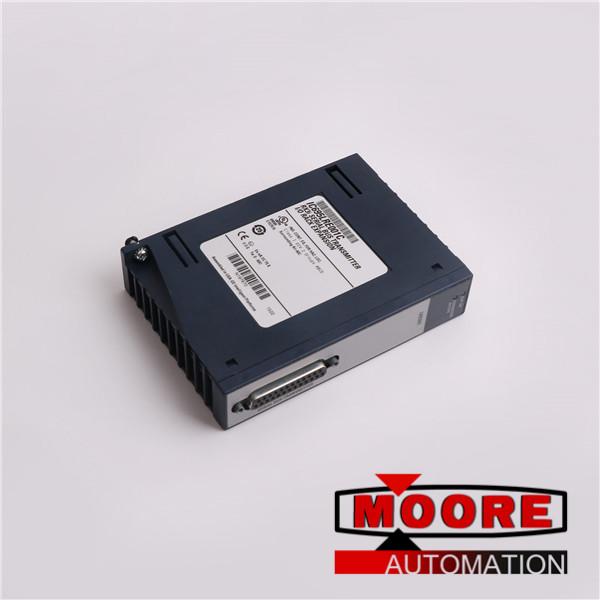

IC695LRE001B | IC695LRE001 General Electric Serial Bus Transmitter module

in stock#

Brand/ Manufacturer:
General Electric
Dimensions:
2.8 cm x 10 cm x 13 cm
Weight:
0.14 kg
Country of Origin: :
USA
Description:
General Electric IC695LRE001 IC695LRE001B Serial Bus Transmitter module

Inquiry now

Mfr. Part Number:	IC695LRE001 IC695LRE001B

Manufacturer:	General Electric

Description:	General Electric IC695LRE001 IC695LRE001B Serial Bus Transmitter module

Full Description:	General Electric IC695LRE001 IC695LRE001B Serial Bus Transmitter module

Status:	Discontinued by manufacturer

Click to get price : : plcinfo@mooreplc.com : +86 18020776786

: live:onlywnn_1 : mooreplc

Moore Automation Limited is not affiliated with or a distributor for . The depiction, description, or sale of products featuring names, trademarks, brands, and logos is for identification and/or reference purposes only and does not indicate any affiliation with or authorization by any rights holder.

The GE Fanuc IC695LRE001 module is a serial bus transmitter module manufactured by GE Intelligent Platforms/GE Fanuc as part of the RX3i series. This module is designed and intended to provide communications between the serial expansion and remote backplanes and the RX3i PacSystems universal backplane. Its function is to translate the levels within the universal backplane to signal levels as needed by the serial expansion backplane. The IC695LRE001 serial bus terminal has a single slot. It comes with the RS-232 serial port for communication purposes and it has an effective data rate of 500 KB per second. Other specifications include a maximum cable length of 50 feet for the expansion backplane and 700 feet for the remote backplane. The IC695LRE001 module must reside inside the special expansion connector found on the right side of the universal backplane. This unit features LEDs that indicate the operation status of the module and the expansion link.

When a backplane power of 5 Volts is applied to the GE Fanuc IC695LRE001 serial bus transmitter module, the "Expansion OK" LED turns on. The "Expansion Active" LED shows the expansion bus status, with the LED turning on when the expansion module communicates with the expansion backplanes. The "Expansion Active" LED turns off when the module and expansion backplanes are not communicating with each other. The IC695LRE001 serial bus transmitter module also features a connector on the front side that is used for attaching the expansion cable. Other specifications of this module include 132 milliamps of current that is required from the backplane at 5 Volts and 0 milliamps of required current at 3.3 Volts.

If you need other brands products like below, please feel free write email to plcinfo@mooreplc.com

You will get Best price and Professional service (24/7)

Brand	GE Fanuc
Series	RX3i PacSystem
Part Number	IC695LRE001
Brand	GE Intelligent Platforms/GE Fanuc
Product Line	RX3i
Catalog	IC695
Module Type	Serial Bus Transmitter
Number of Slots	1 (single slot)
Current Required	132 mA at 5 V DC
Communication	RS-232
Effective Data Rate	500 kbps
Maximum Cable Length	50 ft
Remote Expansion Cable Length	700 ft
Electrical Isolation	Non-isolated differential communications
LED Indicators	2
