Transfer Rate: Network link speed of 2.1 Gbits/sec
User Memory: 128MB SDRAM
Input Power: 660 mA @ +3.3 VDC
Insertion Loss: 0.35 dB (maximum)
Return Loss: -30dB

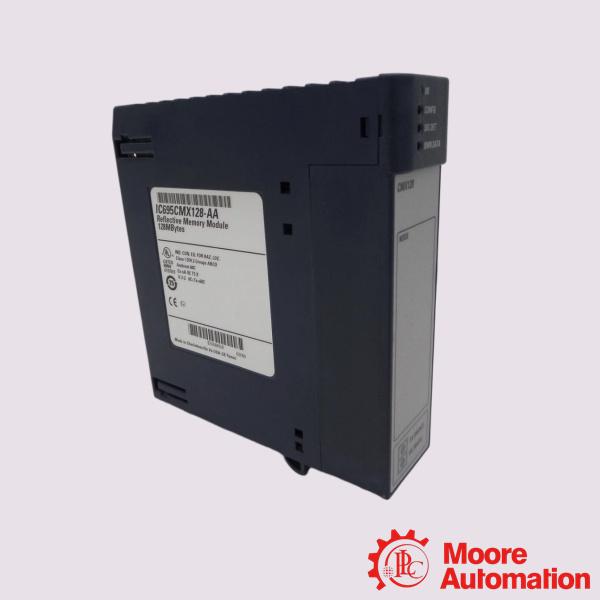

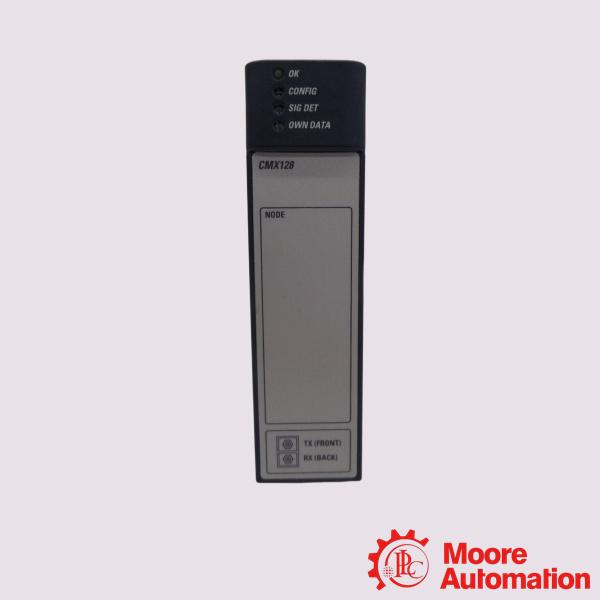

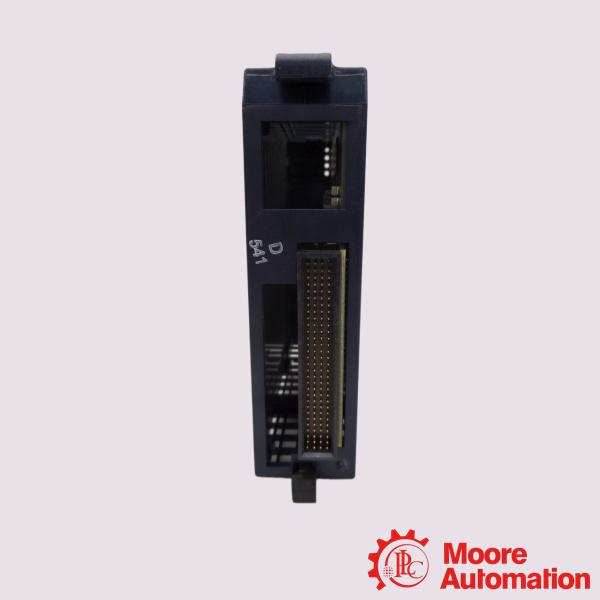

The IC695CMX128 Control Memory Xchange (CMX) module provides deterministic sharing of data among PLCs and other computing devices on a highspeed fiber optic network, using reflective memory technology.A reflective memory network can contain up to 256 nodes. Each node in the network can be any reflective memory device that is compatible with the 5565 family. When data is written to one node, all nodes on the network are automatically updated with the new data.
