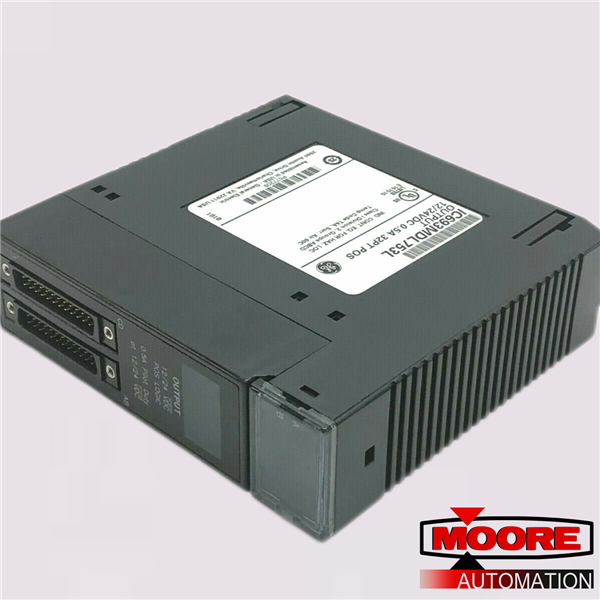

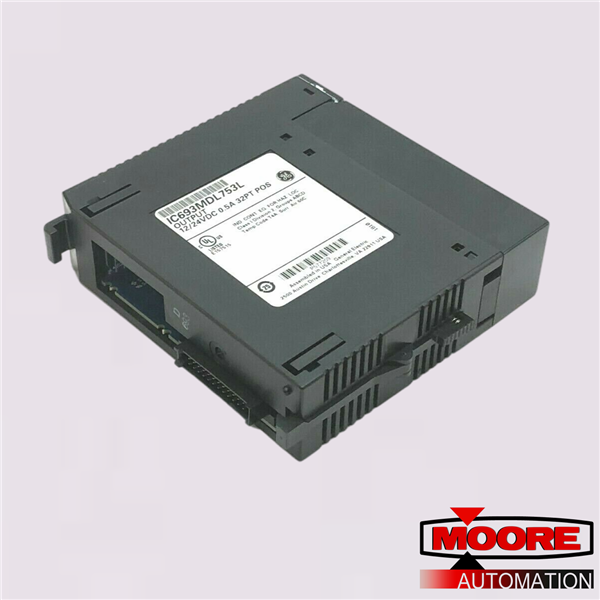

IC693MDL753 | General Electric Output Module

in stock#

Brand/ Manufacturer:
General Electric
Dimensions:
15.2 cm x 5.1 cm x 15.2 cm
Weight:
0.3 kg
Country of Origin: :
USA
Description:
General Electric IC693MDL753 Output Module

Inquiry now

Mfr. Part Number:	IC693MDL753

Manufacturer:	General Electric

Description:	General Electric IC693MDL753 Output Module

Full Description:	General Electric IC693MDL753 Output Module The IC693MDL753 I/O module is a 32-point digital I/O module. The IC693MDL753 I/O module has been developed by GE Fanuc for Series 90-30 of the GE programmable logic controllers or PLCs.

Status:	In stock

Click to get price : : plcinfo@mooreplc.com : +86 18020776786

: live:onlywnn_1 : mooreplc

Moore Automation Limited is not affiliated with or a distributor for . The depiction, description, or sale of products featuring names, trademarks, brands, and logos is for identification and/or reference purposes only and does not indicate any affiliation with or authorization by any rights holder.

The IC693MDL753 is a Series 90-30 positive logic discrete output module. This module is formerly produced by GE Fanuc, now acquired by Emerson Automation. It features Thirty-Two (32) discrete output channels in Four (4) groups of Eight (8) channels. Each channel is configurable to deliver an output voltage range of 12-24 VDC with an output current of 0.5 Amperes per point and 4 Amperes per group and 3 Amperes maximum per common pin. It has 260 mA from 5VDC backplane specifically, 3 mA + 3 mA per point ON + 4.7 mA per LED indicator.
The IC693MDL753 I/O module is a 32-point digital I/O module. The IC693MDL753 I/O module has been developed by GE Fanuc for Series 90-30 of the GE programmable logic controllers or PLCs. The peak current consumption rating of the module is 260 milliamps when it is using 5 Volts DC voltage that is supplied from the PLC backplane. Each output point consumes 16 milliamps of current when it is in the ON state and the indicator LED for each output point consumes 4.7 milliamps of current. The 32 points are arranged into 4 groups of 8 outputs. When running on 24 Volts DC voltage, each group of points consumes 16.5 milliamps of current when all 8 outputs in the group are in the ON state. When running on 12 Volts DC voltage, each group consumes 9.6 milliamps of current when all 8 outputs in the group are in the ON-state.

If you need other brands products like below, please feel free write email to plcinfo@mooreplc.com

You will get Best price and Professional service (24/7)

Brand	GE Fanuc
Series	Series 90-30
Manufacturer	GE Fanuc; Emerson Automation (Current)
Series	Series 90-30
Part Number	IC693MDL753
Product Description	Discrete output module
Product Description	Discrete output module
Product type	Digital I/O
No of Channels	Thirty-Two (32)
No. of output groups	Four (4)
Compatibility	GE Fanuc 90-30 PLCs
No. of groups	Four (4)
Channels per group	Eight (8)
Output points	32
No. of channels per group	Eight (8)
Output voltage range	10.2-28.8 VDC
Module current draw	260 milliamps
Isolation:	1500 volts between field side and logic side; 250 Volts between groups
