IC693CPU392 | GE Bus Expansion Baseplate

in stock#

Brand/ Manufacturer:
GE FANUC
Dimensions:
3.5 cm x 13 cm x 13.5 cm
Weight:
0.3 kg
Country of Origin: :
USA
Description:

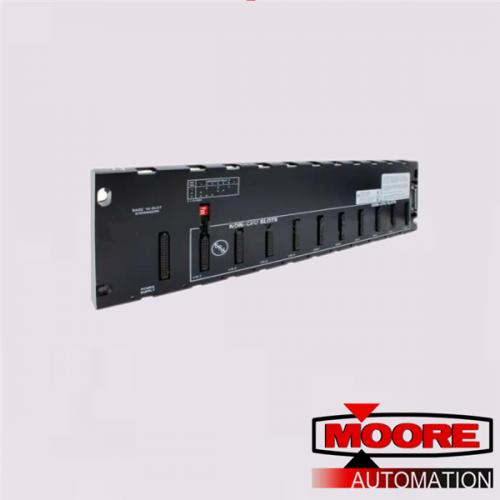

GE IC693CPU392 Bus Expansion Baseplate

Inquiry now

Mfr. Part Number:	IC693CPU392

Manufacturer:	GE FANUC

Description:	GE IC693CPU392 Bus Expansion Baseplate

Full Description:	GE IC693CPU392 Bus Expansion Baseplate The 25-pin Female D-type 10-slot I/O Bus Expansion Baseplate, IC693CHS392, has several uses. It is basically used as a PLC local chassis but can also be used to extend I/O to other locations close by (called local I/O expansion) that are not more than 50 feet (15 meters) apart.

Status:	In stock

Click to get price : : plcinfo@mooreplc.com : +86 18020776786

: live:onlywnn_1 : mooreplc

Moore Automation Limited is not affiliated with or a distributor for GENERAL ELECTRIC. The depiction, description, or sale of products featuring names, trademarks, brands, and logos is for identification and/or reference purposes only and does not indicate any affiliation with or authorization by any rights holder.

The 25-pin Female D-type 10-slot I/O Bus Expansion Baseplate, IC693CHS392, has several uses. It is basically used as a PLC local chassis but can also be used to extend I/O to other locations close by (called local I/O expansion) that are not more than 50 feet (15 meters) apart. Local I/O expansion allows users to increase a PLC’s I/O and enhances control under the monitoring of a single processor. There is no CPU on the baseplate. Local I/O expansion is a good option for smaller PLC systems with I/O situated close to the local chassis.

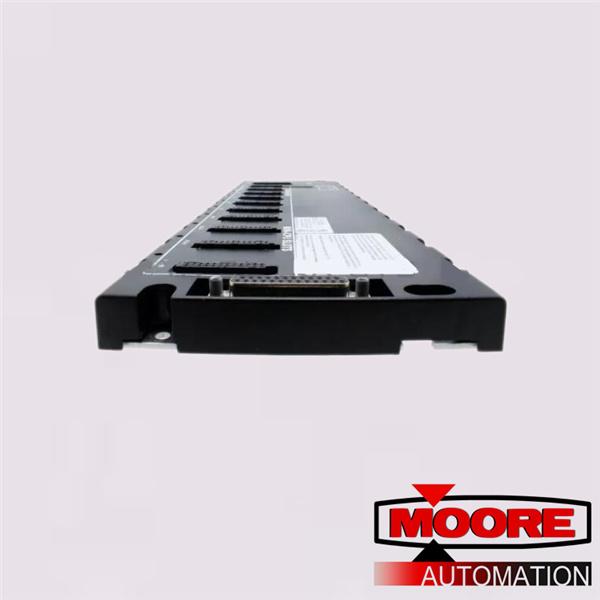

The IC693CHS392 expansion baseplate has a 25-pin female D-type I/O Bus Expansion connector that is mounted at its right end. This connector is used for making connections to other baseplates. It has 10 slots labeled serially from 1 to 10. The baseplate cannot stand alone. It must be mounted in a CPU baseplate of a system having a CPU, either in a PLC or in a Personal Computer that has a Personal Computer Interface (PCI) Card. The first expansion baseplate is connected to the CPU’s baseplate via a short parallel cable which provides seamless parallel data transfer between the CPU baseplate and the locally expanded I/O baseplates. The type of the CPU determines the maximum number of Expansion baseplates that can be installed in a system. CPUs 331, 340, and 341 allows a maximum of 4 while CPUs 350 and higher can allow up to 7 baseplates. Power must be supplied to the expansion baseplate and must be calculated based on the baseplate’s modules as well as and the local load that will be placed on each baseplate’s power supply.

If you need other brands products like below, please feel free write email to plcinfo@mooreplc.com

You will get Best price and Professional service (24/7)

General
Manufacturers	GE
Brand	GE Fanuc
Part Number/Catalog No.	IC693CPU392
Condition	New and Original with One year Warranty
