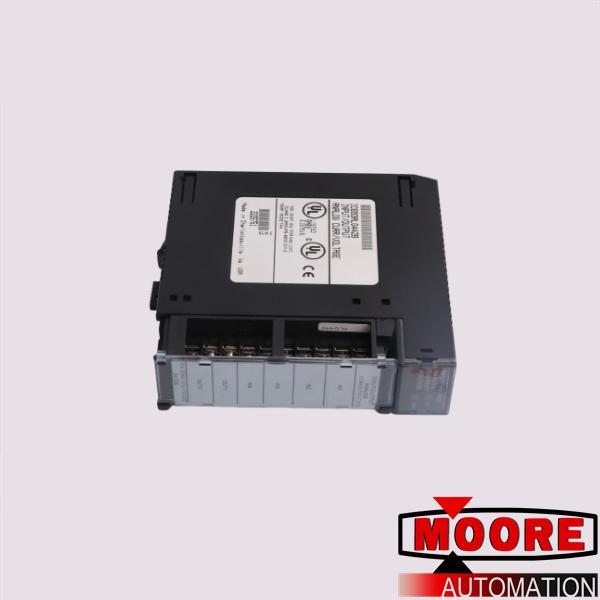

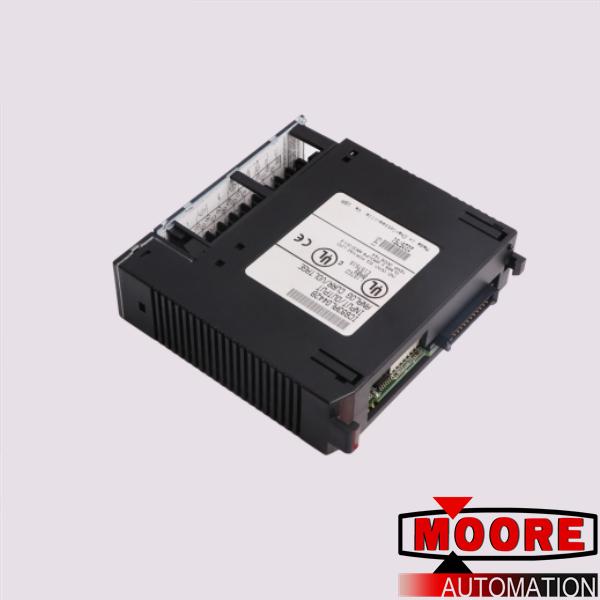

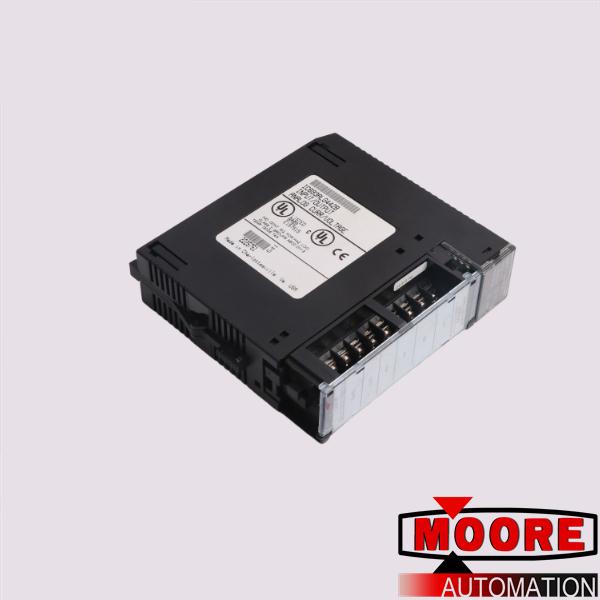

IC693ALG442B | GE Fanuc | Discrete Input Module

Brand/ Manufacturer:
General Electric
Dimensions:
15.2cm*15.2cm*5.1cm
Weight:
0.4kg
Country of Origin: :
United States
Description:
Analog I/O Module

Inquiry now

Mfr. Part Number:	IC693ALG442B

Manufacturer:	General Electric

Description:	The GE Fanuc IC693ALG442 is a Series 90-30 module. This module is an analog voltage / current combination module. In stock ready to ship

Full Description:	It features Four (4) input channels compatible with 0 to +10 volts (unipolar), –10 to +10 volts (bipolar), 0 to 20 mA, 4 to 20 mA, and 4 to 20 mA Enhanced input signals.

Sales manager: Tiffany Guan plcsale@mooreplc.com + 86 18030235313 dddemi33 2851195473

Brand	GE Fanuc
Part Number	IC693ALG442
Series	Series 90-30
Product Description	Analog Current/Voltage Combination Module
No of Output Channels	2, single-ended
Update Rate	4 milliseconds
Output Current Range	0-20 mA, 4-20 mA

The IC693ALG442 is a combination module from GE Fanuc’s Series 90-30 Programmable Logic Control (PLC) platform. Being a combination module, this module is designed with Four (4) input channels compatible with 0 to +10 volts (unipolar), –10 to +10 volts (bipolar), 0 to 20 mA, 4 to 20 mA, and 4 to 20 mA Enhanced input signals and Two (2) analog outputs providing 0 to +10 volts (unipolar), –10 to +10 volts (bipolar), 0 to 20 mA, 4 to 20 mA output signals.

The input channels supports differential inputs with each channel exhibiting an update rate of 8 ms. Individual input type resolution includes 5 µA (1 LSB = 5 µA) for 0-20 mA; 5 µA (1 LSB = 5 µA) for 4-20 mA and 5 µA (1 LSB = 5 µA) for 4-20 mA, enhanced with absolute accuracy of ± 0.25% of full scale @25°C (77°F) and ± 0.5% of full scale over specified operating temperature range.

The output channels are single-ended outputs with update rate of 4 ms and individual resolution of 0.625 µA (1 LSB = 0.625 µA) and 0.5 µA (1 LSB = 0.5 µA) for 4-20 mA and absolute accuracy of ± 0.1% of full scale @25°C (77°F), typical; ± 0.25% of full scale @25°C (77°F), (maximum); and ± 0.5% of full scale over operating temperature range (maximum).
