in stock#
Brand/ Manufacturer:
General ElectricDimensions:
3.6 cm x 13 cm x 13.5 cmWeight:
0.35 kgCountry of Origin: :
USADescription:

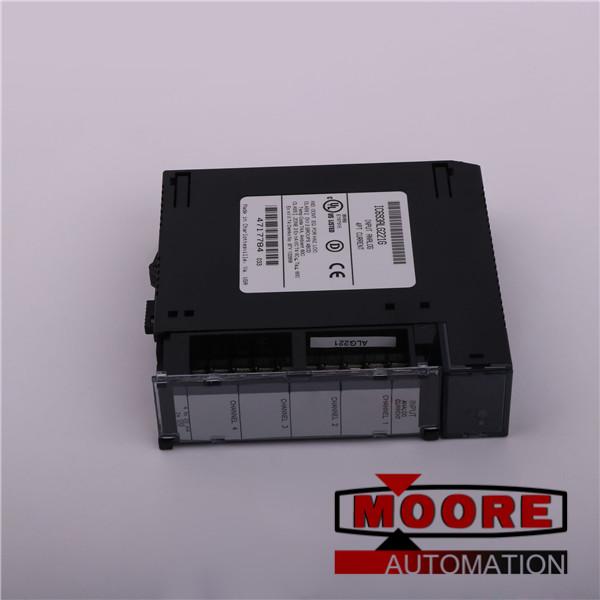

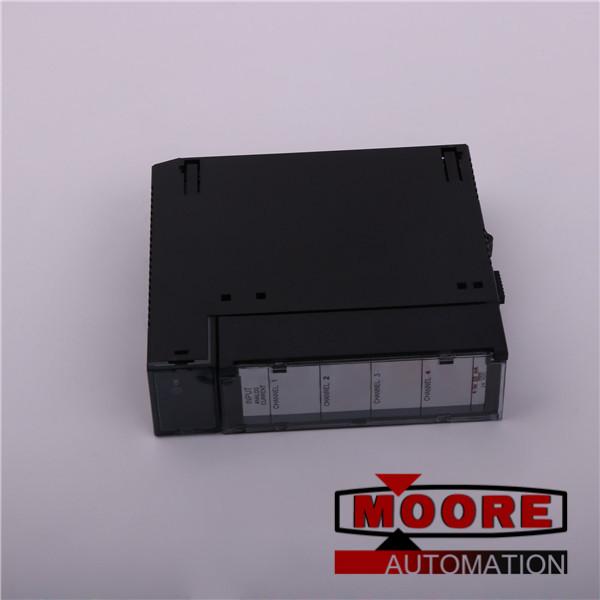

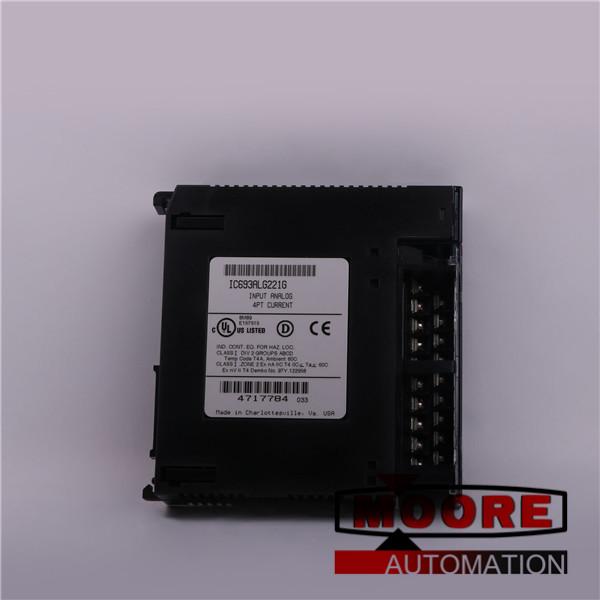

General Electric IC693ALG221 Analog Input, Current, 4 Channels
| Mfr. Part Number: |
IC693ALG221
|
| Manufacturer: | General Electric |
| Description: | General Electric IC693ALG221 Analog Input, Current, 4 Channels |
| Full Description: | General Electric IC693ALG221 Analog Input, Current, 4 Channels |
| Status: | Discontinued by manufacturer |
Click to get price :
: plcinfo@mooreplc.com
: +86 18020776786
: live:onlywnn_1
: mooreplc
Moore Automation Limited is not affiliated with or a distributor for . The depiction, description, or sale of products featuring names, trademarks, brands, and logos is for identification and/or reference purposes only and does not indicate any affiliation with or authorization by any rights holder.
The IC693ALG221 is an analog input module that is part of the Series 90-30 Programmable Logic Control (PLC) system. This module is a component module that functions as an analog input module. This module features Four (4) input channels, receiving 0-20 mA and 4-20 mA input signals from field devices and instruments. This module is equipped with an internal Analog to Digital converter (ADC) which enable the PLC to process and further condition the signal for use in the user program.
The IC693ALG221 has input resolution of 12-bit with each input range having a resolution of 4 µA (1 LSB = 4 µA) for 4-20 mA input signal and 5 µA (1 LSB = 5 µA) for 0-20 mA input signal. It has an absolute accuracy of 0.1% full scale + 0.1% reading with common mode voltage of 200V. Additionally, this module has linearity of < 1 Least Significant Bit and input filter response of 325 Hz.
The IC693ALG221 default channel setting is 4-20 mA. When a 4-20 mA signal is received, the module internally converts the signal range to 0-32000, a unitless measurement representing the value of the input register. 0 corresponds to 4 mA while 32000 corresponds to 20 mA. Values in between is also represented within the register, with measurement point dictated by module’s resolution. This internal conversion also applies to 0-20 mA input range. Input signal type selected is hardware configured via shorting specific terminals in the module’s removable terminal block. To range jumpers are provided, one for channels one and two, and the other for channels three and four.
If you need other brands products like below, please feel free write email to plcinfo@mooreplc.com
You will get Best price and Professional service (24/7)
|
Accuracy |
0.1 % full scale |
|
Isolation |
1500 Volts RMS field to the logic side |
|
Part Number |
IC693ALG221 |
|
Series |
Series 90-30 |
|
Brand |
GE Fanuc |
|
Product Lifecycle Status* |
Discontinued/Obsolete |
|
Product Description |
Analog Current Input |
|
Product Description |
Analog Current Input |
|
No of Channels |
4 |
|
Range |
4-20 mA, 0-20 mA |
|
Update Rate |
2 ms all channels |
|
Resolution at 4-20 mA |
4 microamps |
|
Resolution at 0-20 mA |
5 microamps |
|
Input Impedance |
250 ohms |
|
Input Filter Response |
325 Hertz |
|
Internal Power Consumption |
25 mA at 5 VDC, 100 mA at 24 VDC Isolated |
|
