IC670GBI002 | GE Fanuc | Bus Interface Unit

Brand/ Manufacturer:
General Electric
Dimensions:
7.6 cm x 10.2 cm x 12.7 cm
Weight:
0.5kg
Country of Origin: :
United States
Description:
Bus Interface Unit

Inquiry now

Mfr. Part Number:	IC670GBI002

Manufacturer:	General Electric

Description:	General Electric in Stock, Request for Quotation or Order Now Fast Delivery. Assured Quality. 24 Months warranty

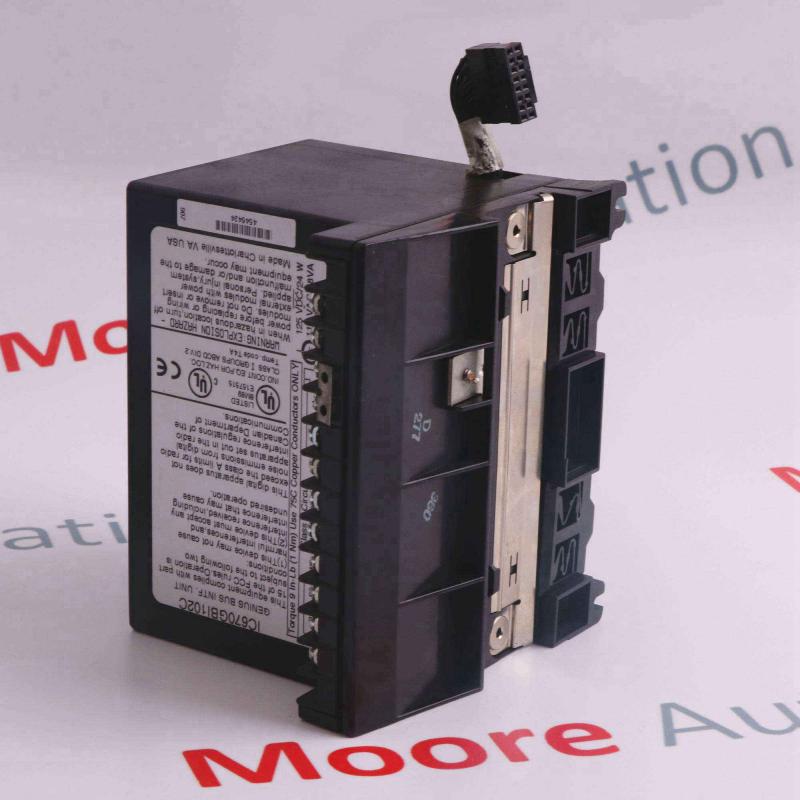

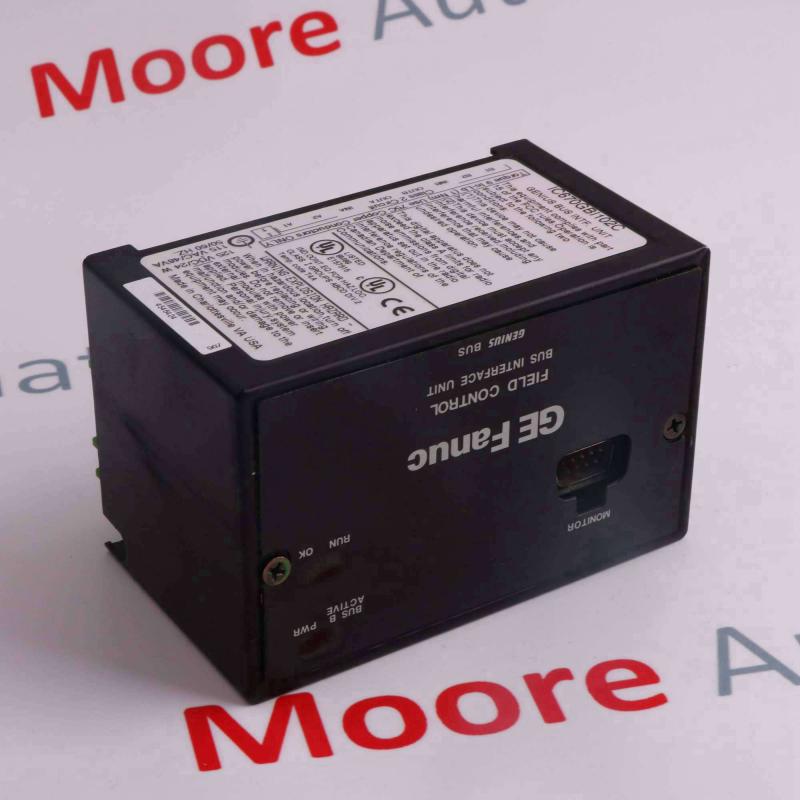

Full Description:	The GE Fanuc IC670GBI002 module is a Field Control bus interface unit. It is used for interfacing of host PLC or computer with GE Field Control I/O. During each scan, the bus interface unit can exchange a maximum of 128 KB of input and 128 KB of output. The IC670GBI002 module is also capable of handling Genius datagram communications. The unit is capable of carrying out diagnostic tests on connected I/O modules and also on itself. The diagnostic information is relayed to a host device or to a handheld monitor. The IC670GBI002 module mounts on a terminal block for bus interface units. The wiring for power connections and single/dual communications cables terminates on the compatible terminal block.

Status:	IN STOCK CAN SHIP THE SAME DAY

plcsale@mooreplc.com + 86 18030235313

dddemi33 2851195473 (Manager:Tiffany)

Hope we can do more business in future ! There will become your honest cooperation partners!

The IC670GBI002 module can be replaced without needing to reconfigure the I/O wiring. This interface unit also supports hot insertion and removal. When installed according to all of the recommended guidelines, the IC670GBI002 module is resistant to the noise levels that are typically present in industrial applications.

The working temperature range for the module is from 0 to 55 degrees Celsius and the storage temperature range is from -40 to 85 degrees Celsius. The non-condensing relative humidity range is from 5 to 95% for operation and stroage. The IC670GBI002 module is rated for a minimum mean time before failure of 183,000 hours.

The nominal DC input voltage is 24 Volts DC and the maximum power at a full load is 16.8 Watts. The holdup time for the unit is 10 milliseconds. The nominal AC input voltage is 115 Volts AC. The terminal block for the bus interface unit requires a maximum of 16 milliamps of current and it is rated for minimum mean time before failure of 600,000 hours.

Part Number	IC670GBI002
Manufacturer	GE
Place of Origin	USA
Product Type	Power Supply
Packing	Original packing with factory sealed
Size	302020cm
Weight	1 KG
Quality	100% New Original
Stock	In stock
Delivery time	1-3 days after Payment
After-sales Service	Have
Warranty	1 year
Shipping term	DHL / FEDEX/ EMS /UPS/TNT/EMS
