IC200UDD104 | GE DC inputs Module

in stock#

Brand/ Manufacturer:
General Electric
Dimensions:
3.5 cm x 13 cm x 13.5 cm
Weight:
0.3 kg
Country of Origin: :
USA
Description:

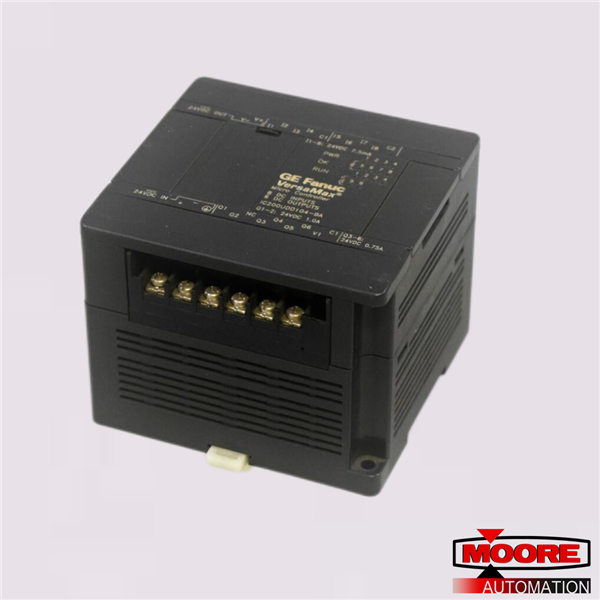

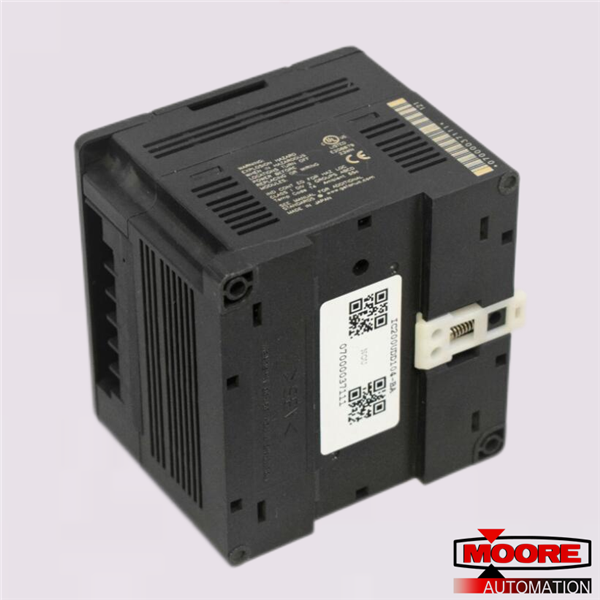

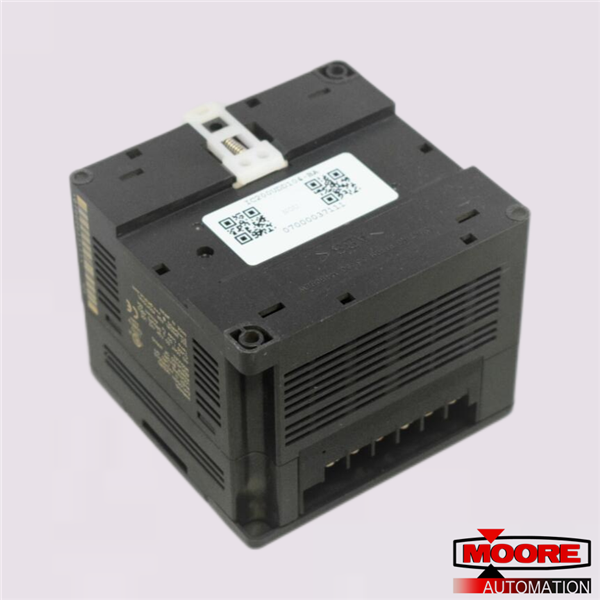

GE IC200UDD104 DC inputs Module

Inquiry now

Mfr. Part Number:	IC200UDD104

Manufacturer:	GE

Description:	GE IC200UDD104 DC inputs Module

Full Description:	GE IC200UDD104 DC inputs Module VersaMax Micro PLC IC200UDD104 accepts eight DC inputs and provides four low-current and two high-current DC transistor outputs. It uses +24VDC nominal input power for PLC operation

Status:	In stock

Click to get price : : plcinfo@mooreplc.com : +86 18020776786

: live:onlywnn_1 : mooreplc

Moore Automation Limited is not affiliated with or a distributor for GENERAL ELECTRIC. The depiction, description, or sale of products featuring names, trademarks, brands, and logos is for identification and/or reference purposes only and does not indicate any affiliation with or authorization by any rights holder.

VersaMax Micro PLC IC200UDD104 accepts eight DC inputs and provides four low-current and two high-current DC transistor outputs. It uses +24VDC nominal input power for PLC operation
Inputs Eight 24 VDC positive/negative logic input circuits
Outputs Four low-current and two high-current DC output circuits
High-speed Counters Four Type A or One Type A and One Type B
Output Power Supplies
24VDC for input circuits & user devices, 200mA max.
+5VDC on pin 7 of Serial Port, 100mA max
DC Power Specifications
Range 19.2VDC to 30VDC
Hold-up 10 ms at 19.2 VDC
Inrush Current 1A maximum at 30 VDC
Inrush Time 10 ms for 1 A
Input Current 0.16 A typical at 24 VDC
Input Power Supply Rating 4W
DC Input Specifications
Number of Inputs 8
Rated Input Voltage 24 volts DC
Input Voltage Range 0 to 30 volts DC
Input Current 7.5mA typical
Input Resistance 2.8 Kohms
Input Threshold Voltage ON: 15VDC minimum, OFF: 5VDC maximum
Input Threshold Current ON: 4.5mA maximum, OFF: 1.5mA minimum
Response Time 0.5 to 20ms configurable as regular input; 100µs as HSC input
Isolation Voltage 1500V RMS field side to logic side, 500V RMS between groups
