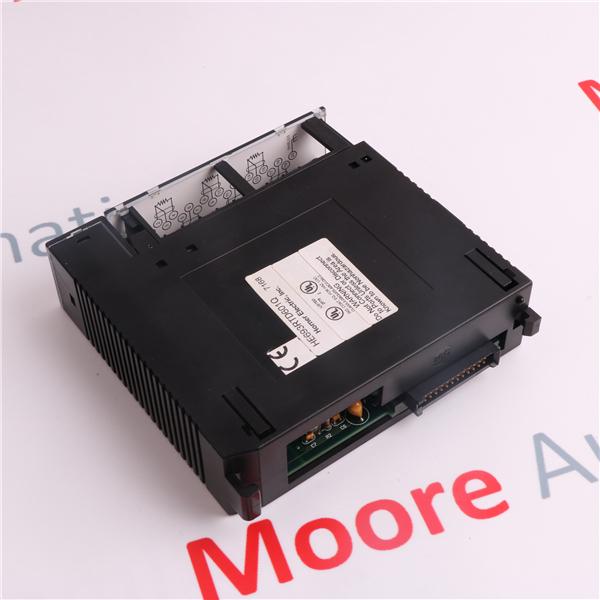

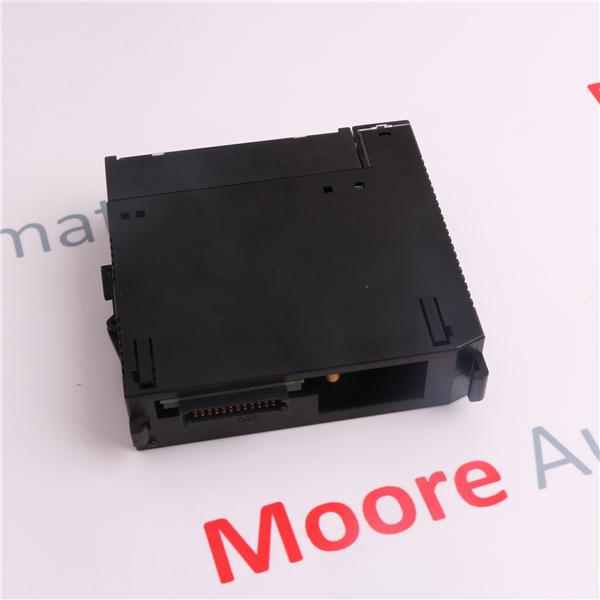

HE693RTD601Q | General Electric

Rated Voltage

120 volts AC

Output Voltage Range

85 to 132 volts AC, 50/60 Hz

Outputs per Module

12 (two groups of six outputs each)

Isolation

1500 volts between field side and logic side

Output Current t

500 volts between each group

0.5 amp maximum per point

1 amp maximum per group at 60 °C  (140°F)

Output Characteristics

2 amps maximum per group at 50 °C  (122°F)

Inrush Current

5 amps maximum for one cycle

Minimum Load Current

50 mA

Output Voltage Drop

1.5 volts maximum

Output Leakage Current

3 mA maximum at 120 volts AC

On Response Time

1 ms maximum

Off Response Time

1/2 cycle maximum

Power Consumption

210 mA (all outputs on) from 5 volt bus on backplane
