Max. power consumption: 300 mA at 24 V
Degree of protection: IP20
Input voltages: -10…10 V
Input currents: -20…20 mA
Analog to digital conversion resolution 16 bit
Inaccuracy: 0.1% of FSR
Input signal bandwidth DC to 4 kHz (-3 dB)
Output current: 0…20 mA, Rload < 500 ohms

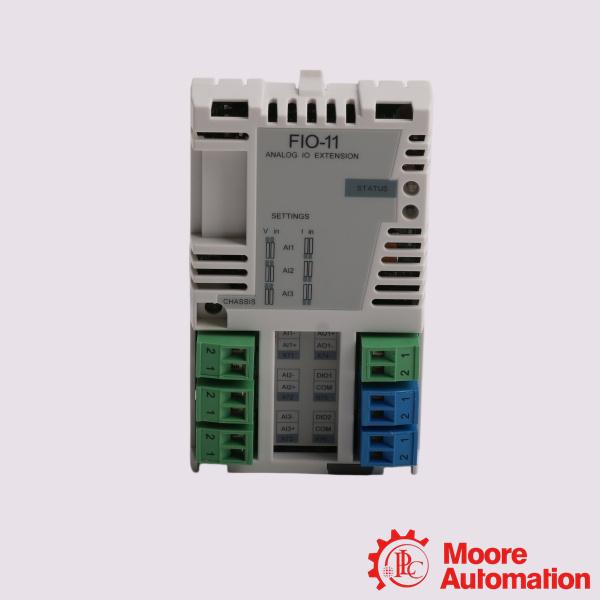

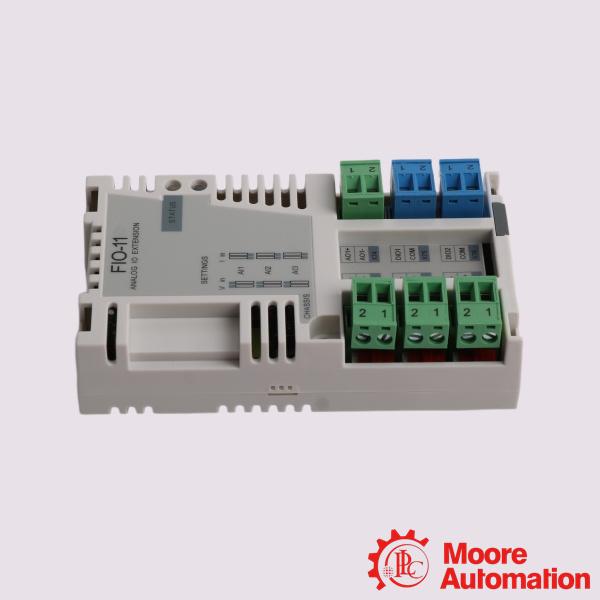

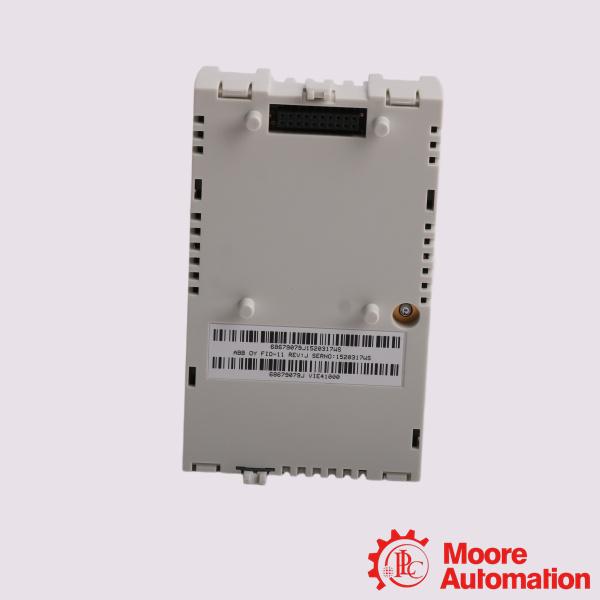

The FIO-11 is a general purpose analog and digital input/output extension. It offers three analog inputs, one analog output and two digital inputs or outputs. All inputs and outputs are in the same potential and have a common isolation to control electronics.
