DS200TBQBG1A | DS200TBQBG1ACB General Electric TERMINAL BOARD

in stock#

Brand/ Manufacturer:
General Electric
Dimensions:
28.8 cm x 7.2 cm x 3.8 cm
Weight:
0.32 kg
Country of Origin: :
USA
Description:
General Electric DS200TBQBG1ACB DS200TBQBG1A TERMINAL BOARD

Inquiry now

Mfr. Part Number:	DS200TBQBG1ACB DS200TBQBG1A

Manufacturer:	General Electric

Description:	General Electric DS200TBQBG1ACB DS200TBQBG1A TERMINAL BOARD

Full Description:	General Electric DS200TBQBG1ACB DS200TBQBG1A TERMINAL BOARD

Status:	Discontinued by manufacturer

Click to get price : : plcinfo@mooreplc.com : +86 18020776786

: live:onlywnn_1 : mooreplc

Moore Automation Limited is not affiliated with or a distributor for . The depiction, description, or sale of products featuring names, trademarks, brands, and logos is for identification and/or reference purposes only and does not indicate any affiliation with or authorization by any rights holder.

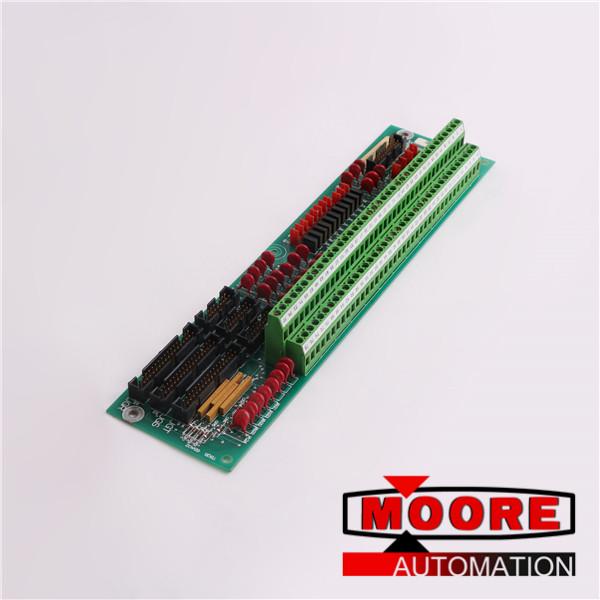

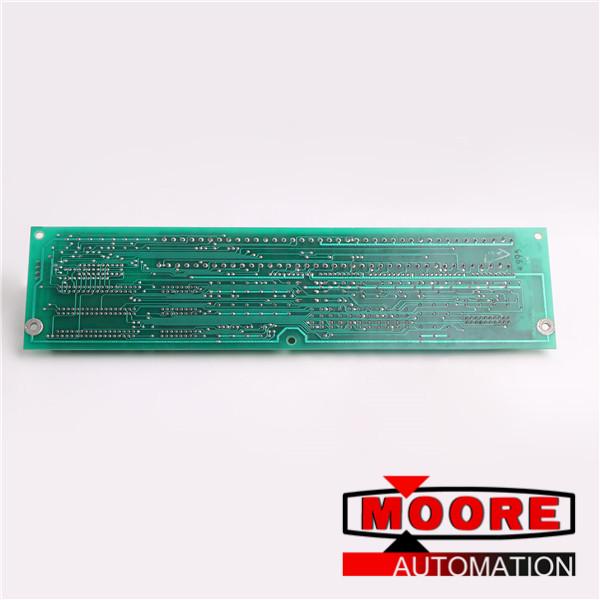

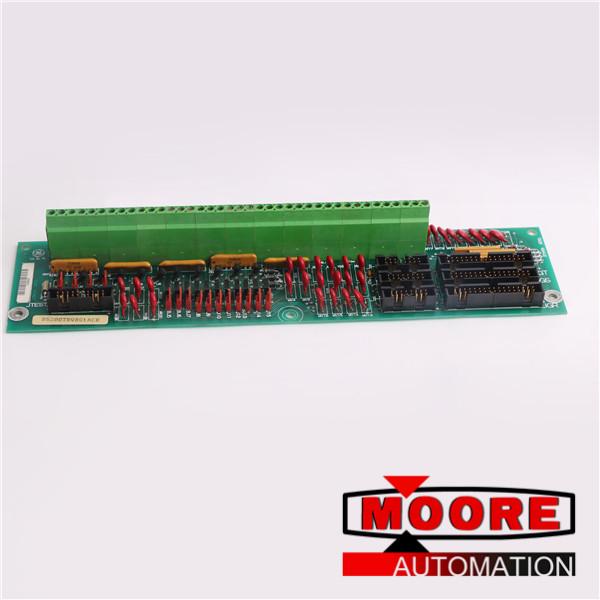

The GE RST Analog Termination Board DS200TBQBG1A features 2 terminal blocks. Each block contains 77 terminals for signal wires. The GE RST Analog Termination Board DS200TBQBG1A also contains 15 jumpers, 3 34-pin connectors, and 3 16-pin connectors. The opportunities for diagnosing the board if you suspect a problem are limited due to the lack of test points and indicator LEDs. Test points give a means of attaching the specific circuits on the board to a testing device and identifying problems. LEDs provide a means for gaining an indication of the general health and processing activity in the board.
DS200TBQBG1A's BJ1 through BJ4 jumpers are used to fan out the pressure transducer #1 input signal in old applications. Jumpers BJ5 through BJ7 on DS200TBQBG1A are used in connection with BJ1 through BJ4. These jumpers on DS200TBQBG1A install a burden resistor to the pressure transducer #1 input signals causing the signal to be a milliamp rather than a voltage signal. Jumpers BJ8 through BJ15 on DS200TBQBG1A configure analog inputs to be either current or voltage on DS200TBQBG1A.

If you need other brands products like below, please feel free write email to plcinfo@mooreplc.com

You will get Best price and Professional service (24/7)

General
Manufacturers	General Electric
Brand	GE Fanuc
Part Number/Catalog No.	DS200TBQBG1ACB DS200TBQBG1A
Condition	New and Original with One year Warranty
