DS200SHVMG1AED | General Electric CIRCUIT CARD

in stock#

Brand/ Manufacturer:
General Electric
Dimensions:
17.7 cm x 8.8 cm x 2.5 cm
Weight:
0.14 kg
Country of Origin: :
USA
Description:
General Electric DS200SHVMG1AED CIRCUIT CARD

Inquiry now

Mfr. Part Number:	DS200SHVMG1AED

Manufacturer:	General Electric

Description:	General Electric DS200SHVMG1AED CIRCUIT CARD

Full Description:	General Electric DS200SHVMG1AED CIRCUIT CARD General Electric’s DS200SHVMG1AED is a SCR high voltage M-frame interface board. This card was developed for the Mark V series of optional and replacement boards.

Status:	In stock

Click to get price : : plcinfo@mooreplc.com : +86 18020776786

: live:onlywnn_1 : mooreplc

Moore Automation Limited is not affiliated with or a distributor for . The depiction, description, or sale of products featuring names, trademarks, brands, and logos is for identification and/or reference purposes only and does not indicate any affiliation with or authorization by any rights holder.

DS200SHVMG1AED
CIRCUIT CARD
MARK 5
TURBINE CONTROL
MULTI INPUT/ OUTPUT
ON BOARD RAM

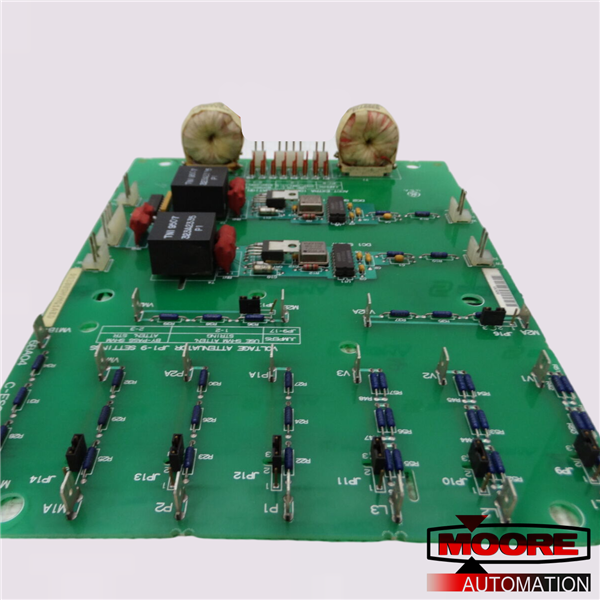

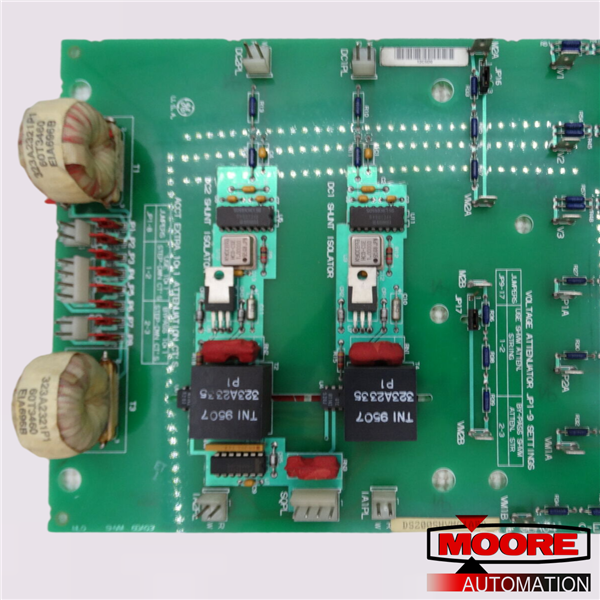

General Electric’s DS200SHVMG1AED is a SCR high voltage M-frame interface board. This card was developed for the Mark V series of optional and replacement boards. As a member of that series, this interface board can easily be installed across a wide range of GE brand drives and exciters. After installing the card, a medium for interfacing the SCR bridge from the M-frame drive and the power supplies found in either the DCFB or SDCI board as well as the power connect card, or PCCA.

A number of voltage and conversion functions are provided by installing this board into a drive. Differential frequency outputs ranging from 0 to 500 kHz are produced by the card converting shunt signals ranging between -500 and 500 mV. All conversions of these signals are performed by DC positive and negative floating shunts in the voltage controlled oscillator (VCO) circuits. Once converted, the differential frequency outputs are sent to the DCFB/SDCI board or the PCCA card. AC line currents on the board are provided a 10:1 current transformer attenuation. There are 17 configurable jumpers on board, allowing users to select attenuation rates.

If you need other brands products like below, please feel free write email to plcinfo@mooreplc.com

You will get Best price and Professional service (24/7)

General
Manufacturers	General Electric
Brand	General Electric
Part Number/Catalog No.	DS200SHVMG1AED
Condition	New and Original with One year Warranty
