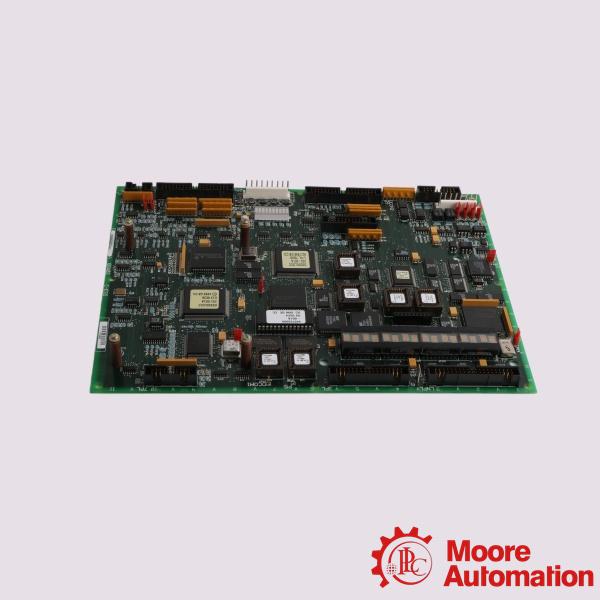

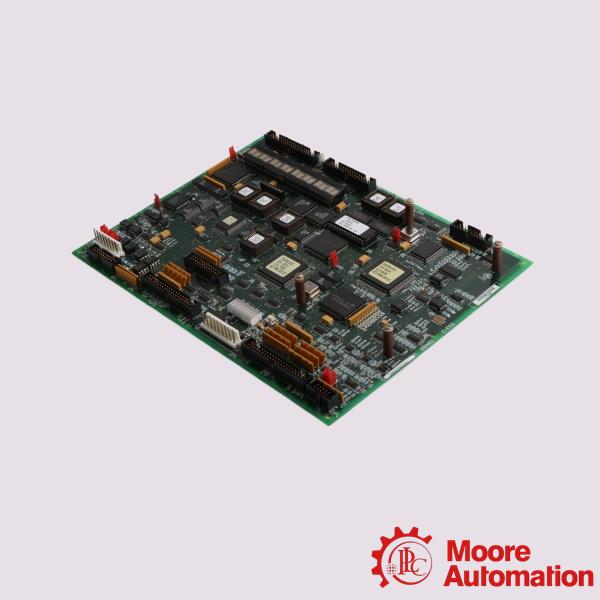

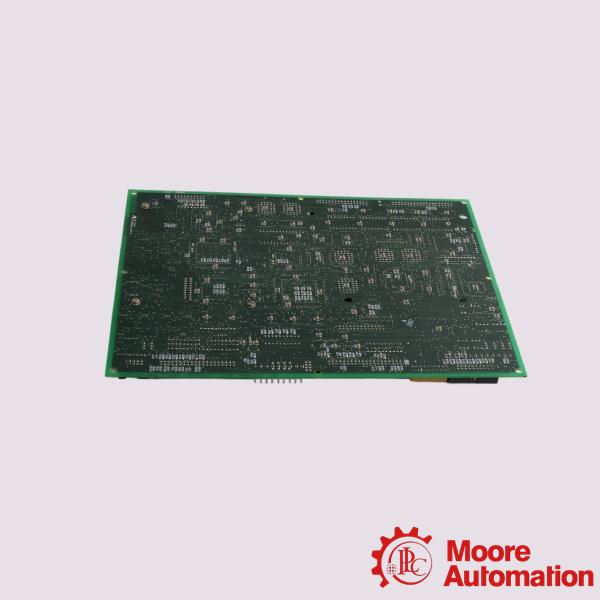

DS200LDCCH1AKA | GE Communications Board

Description

The DS200LDCCH1AKA features a powerful multi-processor architecture consisting of four dedicated microprocessors, including the Drive Control Processor (DCP), Motor Control Processor (MCP), Co-Motor Processor (CMP), and LAN Control Processor (LCP). These processors work together to provide high-speed real-time processing for drive operations, motor control algorithms, digital and analog I/O management, and industrial network communications. The DCP handles peripheral processing tasks such as timers and encoder interfaces, while the MCP manages motor control and I/O communications. For complex mathematical calculations and advanced processing requirements, the CMP provides supplemental computational capability.

Parameter

Optional Serial Ports: RS-232 / RS-422 / RS-485
Flash PROM Locations: U6, U7, U11, U12, U22, U23
Input Power Supply: 24 VDC / 125 VDC
Operating Temperature: -30°C to +65°C
Protection Level: IP20
Typical Relay Capacity: 5A–10A @ 120/240VAC
Approximate Dimensions: 220 mm × 165 mm × 25 mm

Frequently asked questions

Which control platform uses the General Electric DS200LDCCH1AKA Communications Board?
The General Electric DS200LDCCH1AKA Drive Control/LAN Communications Board is used in the GE Mark V turbine control platform and DIRECTO-MATIC 2000 systems.

What input voltage is supported by the General Electric DS200LDCCH1AKA Communications Board?
The General Electric DS200LDCCH1AKA Drive Control/LAN Communications Board supports 24 VDC and 125 VDC input power supplies.

Can the General Electric DS200LDCCH1AKA Communications Board support LAN communication?
Yes, the General Electric DS200LDCCH1AKA Drive Control/LAN Communications Board includes LAN communication functions for industrial systems.

Application areas:
Industrial Manufacturing: Supports automated production lines, multi-motor coordination, and industrial process control in sectors such as steel, cement, paper, and metallurgy manufacturing.

Oil & Gas: Applied in compressor stations and motor drive control systems where reliable industrial communication and high-speed data processing are required.

Power Generation: Used in gas turbines and generator control systems for drive control, LAN communications and real-time monitoring in thermal and combined-cycle power plants.

Wind Power & Renewable Energy: Integrated into wind turbine drive and excitation systems for communication management, equipment synchronization, and operational monitoring.
