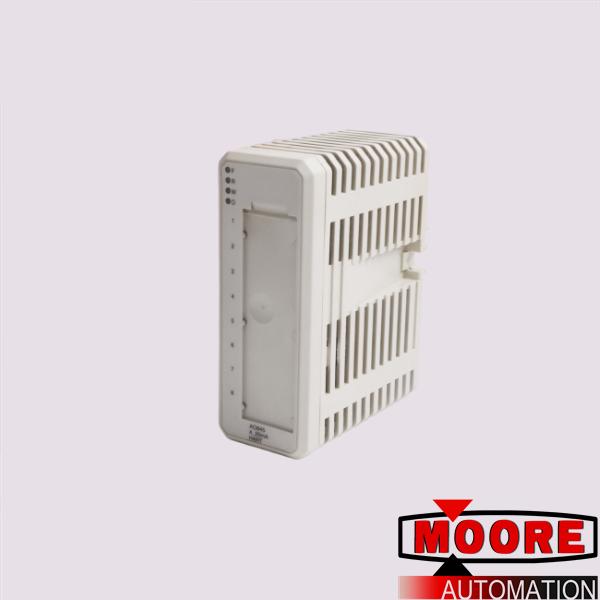

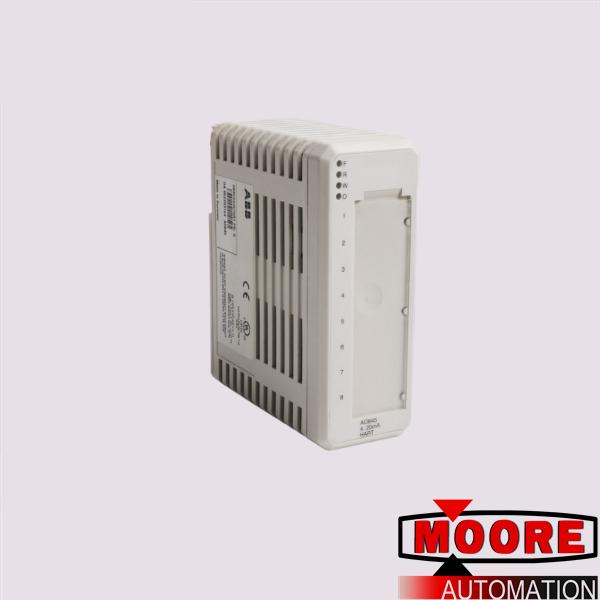

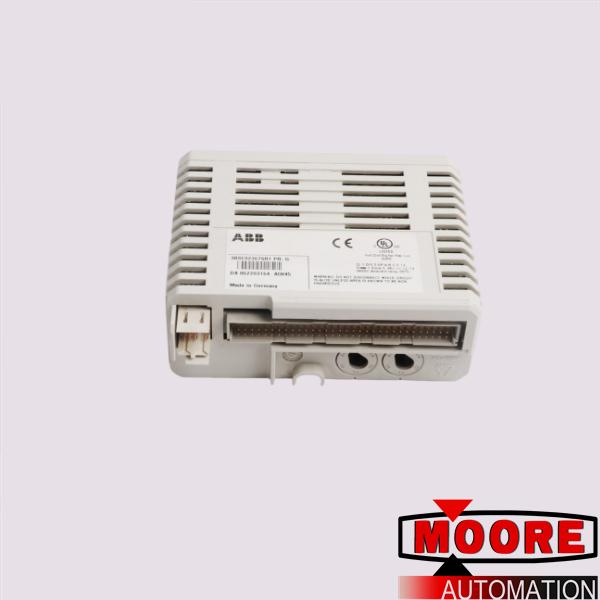

AO845 3BSE023676R1 | ABB | redundant analog output

Order(MOQ):
1
Brand/ Manufacturer:
ABB
Dimensions:
4.5cm*10.5cm*12cm
Weight:
0.22kg
Country of Origin: :
Sweden
Description:
Analog Input Module

Inquiry now

Mfr. Part Number:	AO845 3BSE023676R1

Manufacturer:	ABB

Description:	Product Model: AO845 Spare Model: 3BSE023676R1 Product Parameters: Redundant Analog Output Module In stock ready to ship

Full Description:	4..20mA, 12bit, 0.1%, RLmax 750 ohm, Rated isol. 50V. Advanced on-board diagnostics. Use Module Termination Unit TU810, TU812, TU814, TU830, TU833, TU842, TU843.

Sales manager: Tiffany Guan plcsale@mooreplc.com + 86 18030235313 dddemi33 2851195473

Technical

Channel Type:AO
Number of Input Channels:0
Number of Output Channels:8

Features and benefits

8 channels of 4...20 mA
For single or redundant applications
1 group of 8 channels isolated from ground
Analog inputs are short circuit secured to ZP or +24 V
HART pass-through communication

The AO845/AO845A Analog Output Module for single or redundant applications has 8 unipolar analog output channels. The module performs self-diagnostic cyclically. Module diagnostics include:

External Channel Error is reported (only reported on active channels) if the process power supply that supply voltage to output circuitry is too low, or the output current is less than the output set value and the output set value > 1 mA (open circuit).

Internal Channel Error is reported if the output circuit can not give the right current value. In a redundant pair the module will be commanded to error state by the ModuleBus master.

Module Error is reported in case of Output Transistor Error, Short Circuit, Checksum Error, Internal Power Supply Error, Status Link Error, Watchdog or Wrong OSP behavior.
