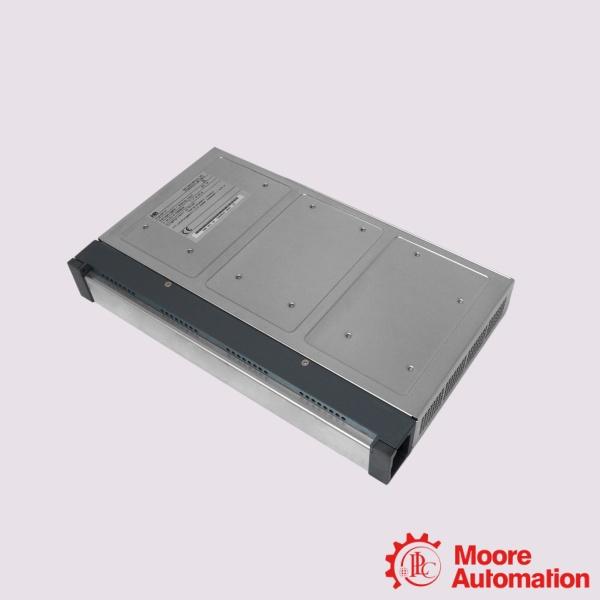

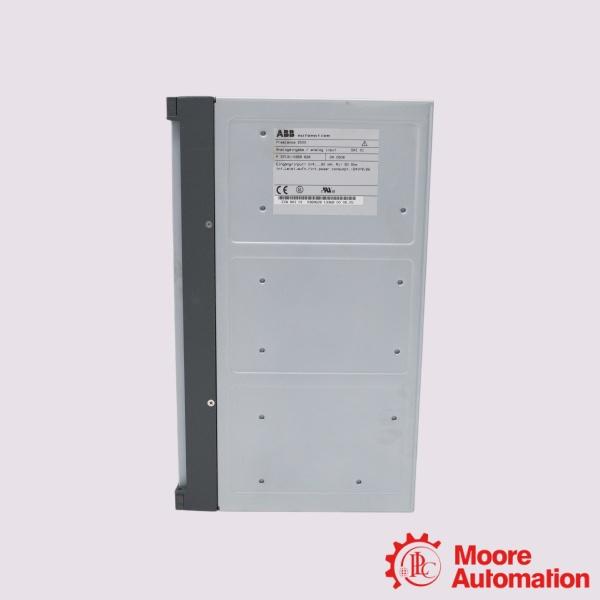

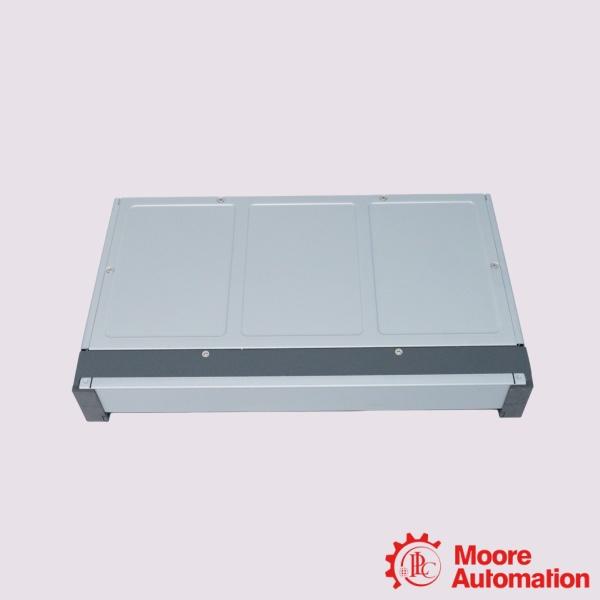

ABB AI02J 16 Channel Analog Input Module

Parameter

Model: AI02J 16 Channel Analog Input Module
Input Power Supply: 24 VDC ±10%
Galvanic Isolation: 1500 V (Between field circuitry and logic circuitry)
Configurable Input Types: 4 to 20 mA current loops OR 1 to 5 VDC voltage inputs
Module Update Time: ≤ 100 ms (All 16 channels refreshed completely)
Measurement Accuracy: ±0.1% of full-scale range
Channel Variable Capacity: Maximum of 4 secondary variables per individual input channel

Description

The ABB AI02J is a 16-channel analog input module for the ABB Ability™ Symphony® Plus SD Series I/O platform. It is designed to process high-level analog field signals, with each channel independently configurable for either 4–20 mA current or 1–5 VDC voltage inputs. The module supports flexible signal acquisition for a wide range of industrial process control applications while allowing individual channel configuration through the Symphony Plus engineering tools. The module features a single A/D converter capable of updating all 16 input channels within 100 ms. Its analog-to-digital conversion resolution is configurable from 12 to 16 bits with polarity, providing accurate measurement of field signals. In current input mode, the AI02J supports HART® Version 5.4 communication, enabling access to up to 24 secondary HART variables per module, with a maximum of four secondary variables per input channel available for use by the control system. Measurement accuracy is specified as ±0.1% of full-scale range, ensuring reliable signal acquisition for demanding industrial processes. For dependable operation in industrial environments, the AI02J incorporates 1500 V galvanic isolation between field signals and the logic circuitry, along with group isolation across all 16 channels. The module includes short-circuit protection, limiting current to 96 mA in current mode, and can detect an open circuit in less than five seconds.

Frequently asked questions

What is the ABB AI02J?
The ABB AI02J is an analog input module for the ABB Ability™ Symphony® Plus SD Series I/O platform. It processes up to 16 group-isolated analog input channels, with each channel independently configurable for 4–20 mA or 1–5 VDC input signals.

How many input channels does the AI02J provide?
The AI02J supports 16 independently configurable analog input channels, allowing different signal types to be used simultaneously within the same module.

Does the AI02J support HART devices?
Yes. When operating in 4–20 mA current mode, the AI02J supports HART v5.4 field instruments and provides access to up to 24 secondary HART variables, with a maximum of four secondary variables per input channel available to the control system.

Application areas:
Boiler Control & Monitoring: Tracks critical furnace pressures, steam temperatures, and feedwater drum levels via high-accuracy 4–20 mA transmitters.

Hazardous Area Instrument Monitoring: Connects to intrinsically safe field barriers to manage pressure and temperature loops inside explosive chemical zones.

Ore Washing & Smelting: Captures analog data from heavy industrial slurry density meters and high-temperature smelting exhaust monitoring sensors.
