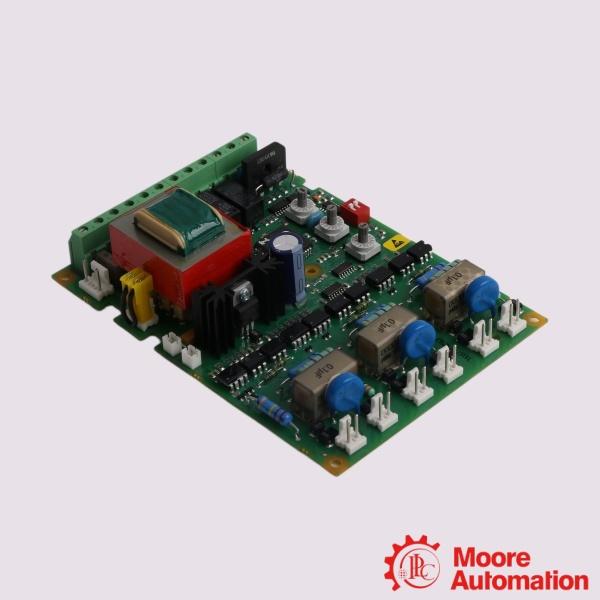

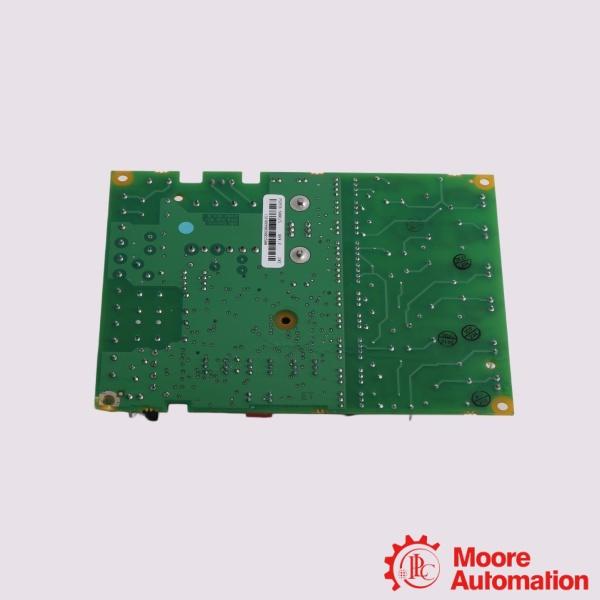

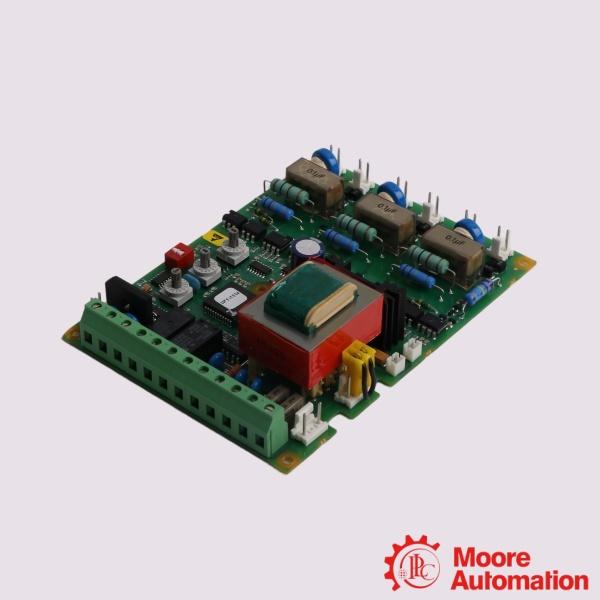

ABB 1SFA899301R1007 PSPCB-CB-1 1SFB536268D1007 Printed Circuit Board

Parameter
Model: 1SFA899301R1007 PSPCB-CB-1 1SFB536268D1007Printed Circuit Board
Equipment Compatibility: PSTX30 to PSTX170 Softstarters (Entire range)
Control Logic Supply: 100 to 250 VAC, 50/60 Hz (Derived from main softstarter feed)
Processing Power: 32-bit microprocessor framework managing thyristor firing algorithms
Coating Type: Standard protective conformal coating against harsh dust/moisture
Material Compliance: RoHS Compliant
Ambient Temperature: -25 to +60 °C
Transport Temperature: -40 to +70 °C

Description

The ABB 1SFA899301R1007 PSPCB-CB-1 1SFB536268D1007 is an original control board developed for the ABB PSTX series softstarters, specifically supporting PSTX30 to PSTX170 models. As the primary control board within the softstarter, it performs the essential control and processing functions required for normal drive operation, coordinating internal control logic and communication between the electronic circuits that manage motor starting and stopping. Designed as an original ABB spare part, the board provides a direct replacement solution for compatible softstarters, helping restore equipment to its original operating condition without modifying the existing hardware configuration. Manufactured to ABB's original specifications, the PSPCB-CB-1 is intended for seamless integration with the PSTX softstarter platform. The board is supplied as a dedicated replacement component and maintains compatibility with the electrical and mechanical design of supported drive models. Its standardized construction allows service engineers to replace the control board during maintenance or repair while preserving the original functionality and performance of the softstarter. As an official ABB spare part, it meets the same quality and reliability standards as the factory-installed component. The 1SFA899301R1007 is used in industrial motor control systems where ABB PSTX softstarters provide controlled motor acceleration and deceleration. As part of ABB's spare parts program, it simplifies maintenance by allowing the control board to be replaced independently, reducing equipment downtime and extending the service life of the softstarter.

Frequently asked questions

Q:What is the ABB 1SFA899301R1007 PSPCB-CB-1?
A:The ABB 1SFA899301R1007 (PSPCB-CB-1) is an original control board (PCB) designed as a spare part for ABB PSTX series softstarters. It serves as the main electronic control board responsible for the softstarter's control functions.

Q:Can the control board be replaced without replacing the entire softstarter?
A:Yes. ABB supplies the PSPCB-CB-1 as a field-replaceable spare part, allowing the control board to be replaced during maintenance without replacing the complete softstarter, provided the replacement follows ABB service procedures.

Q:What should be checked before installing the 1SFA899301R1007?

A:Before installation, verify that the softstarter model is within the PSTX30–PSTX170 range, confirm the ABB part number 1SFA899301R1007, follow appropriate ESD handling procedures, disconnect all power sources, and perform the recommended functional checks after replacement according to ABB service instructions.

Application areas

The PSPCB-CB-1 main control board serves as the central processing unit for ABB PSTX30 to PSTX170 smart softstarters. It is heavily used across various heavy industries for applications requiring smooth acceleration/deceleration and high mechanical protection.

• Sewage Pumps: For applications with high start-stop frequencies, the board monitors real-time motor load and activates anti-clogging or reverse-clearing functions to clear debris from the pump impeller.
• Cooling Tower Fans: In highly humid environments, the board coordinates the dynamic "Jog" function for slow-speed rotation, which is used to clear ice buildup from the fan blades or perform visual inspections.
• Belt Conveyors: Long-distance conveyor belts can stretch, snap, or spill materials if accelerated too aggressively. The control board utilizes torque control for linear acceleration, protecting the belt carcass and structural splices.
