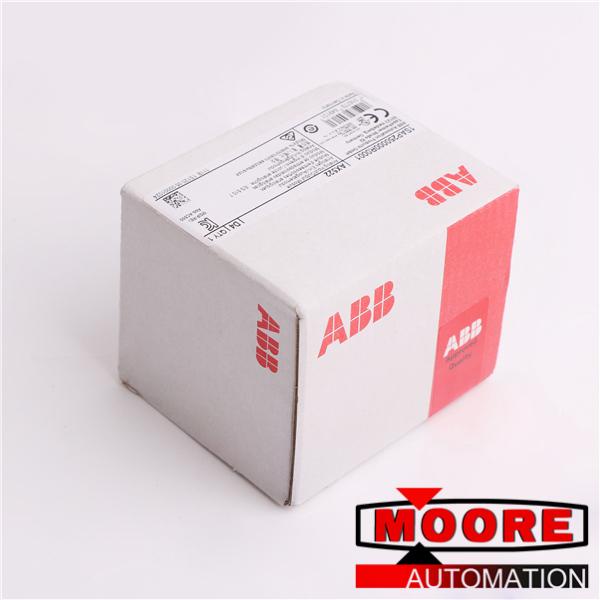

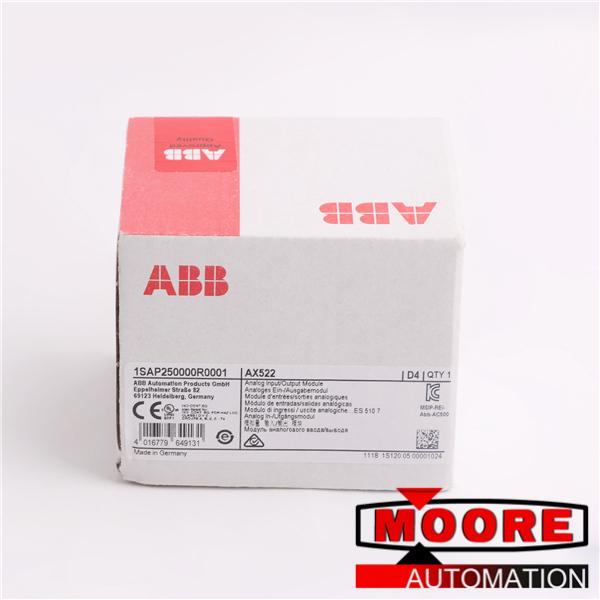

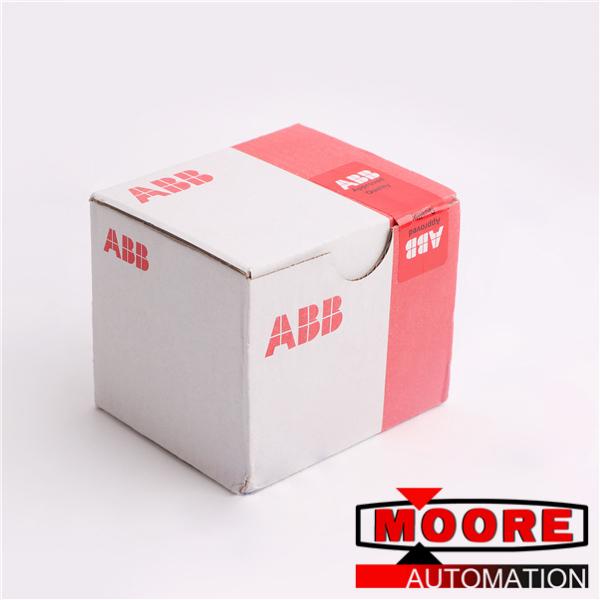

1SAP250000R0001 | AX522 ABB Analog I/O Module

in stock#

Brand/ Manufacturer:
ABB
Dimensions:
8.5 cm x 7 cm x 7 cm
Weight:
0.14 KG
Country of Origin: :
Switzerland
Description:
ABB AX522 1SAP250000R0001 Analog I/O Module

Inquiry now

Mfr. Part Number:	AX522 1SAP250000R0001

Manufacturer:	ABB

Description:	ABB AX522 1SAP250000R0001 AX522:S500,Analog I/O.Mod.8AI/8AO,U/I/RT

Full Description:	ABB AX522 1SAP250000R0001 S500,Analog I/O.Mod.8AI/8AO,U/I/RT 12bit+sign,24VDC,2/3-wire

UPC / GTIN:	10612598003652

Status:	Current Product

Click to get price : : plcinfo@mooreplc.com : +86 18020776786

: live:onlywnn_1 : mooreplc

Moore Automation Limited is not affiliated with or a distributor for ABB. The depiction, description, or sale of products featuring names, trademarks, brands, and logos is for identification and/or reference purposes only and does not indicate any affiliation with or authorization by any rights holder.

The analog input/output modules AX521 and AX522 can be used as remote expansion modules at the
FBP Interface Module DC505-FBP, at the CS31 Bus Module DC551-CS31 or locally at an AC500 CPU.
They contain 8 or 16 channels each with the following features:
AX521:
• 4 configurable analog inputs in one group (1.0...2.3)
• 4 configurable analog outputs in one group (3.0...4.3)
AX522:
• 8 configurable analog inputs in one group (1.0...2.7)
• 8 configurable analog outputs in one group (3.0...4.7)
The configuration is performed by software.
The modules are supplied with a process voltage of 24 V DC. The analog inputs and outputs are electrically isolated from the rest of the modules' electronics.

The input/output modules are plugged on I/O Terminal Units TU515 or TU516. Properly seat the modules and press until they lock in place. The Terminal Units are mounted on a DIN rail or with 2 screws plus the additional accessory for wall mounting (TA526).
The electrical connection of the I/O channels is carried out using the 40 terminals of the I/O Terminal Unit. I/O modules can be replaced without re-wiring the Terminal Units.

If you need other brands products like below, please feel free write email to plcinfo@mooreplc.com

You will get Best price and Professional service (24/7)

General

Manufacturers

Automation/

Brand

Ambient Air Temperature

Operation 0 ... +60 °C
Storage -40 ... +70 °C

Analog Inputs

8 channels, 0 ... 20mA, 4 ... 20mA, -10 ... +10V, 0 ... +10V, PT100, PT1000, NI1000, usable as DI, 12bit + sign

Analog Outputs

8 channels, 0 ... 20mA, 4 ... 20mA, -10 ... +10V, max. 4 current outputs, 12bit + sign

Country of Origin

Germany (DE)

I/O Option

IO module with Onboard IO - 8AI / 8AO

Invoice Description

AX522:S500,Analog I/O.Mod.8AI/8AO,U/I/RT

Power Supply

24 V DC

Condition

New and Original with One year Warranty
