PLC 2711P-K12C4A8 PanelView Plus 6 Operator Terminal

Frequently asked questions
Q:What software is used with the 2711P-K12C4A8?
A:The terminal supports FactoryTalk View Machine Edition applications for creating and running HMI projects.

Q:What type of operator input system is used in the 2711P-K12C4A8?

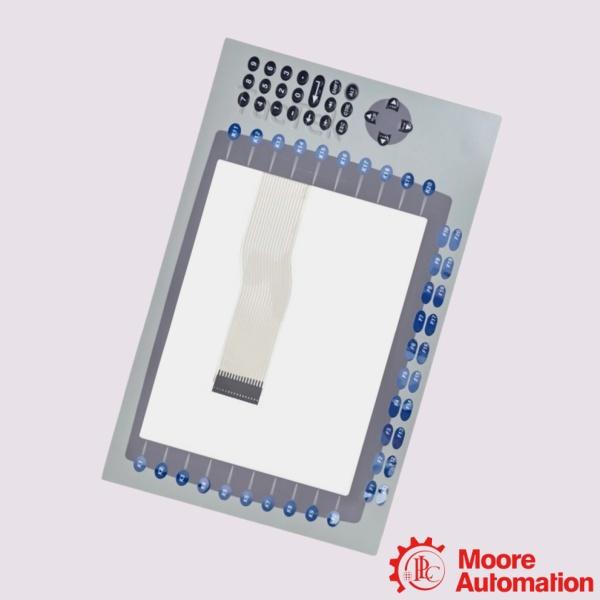

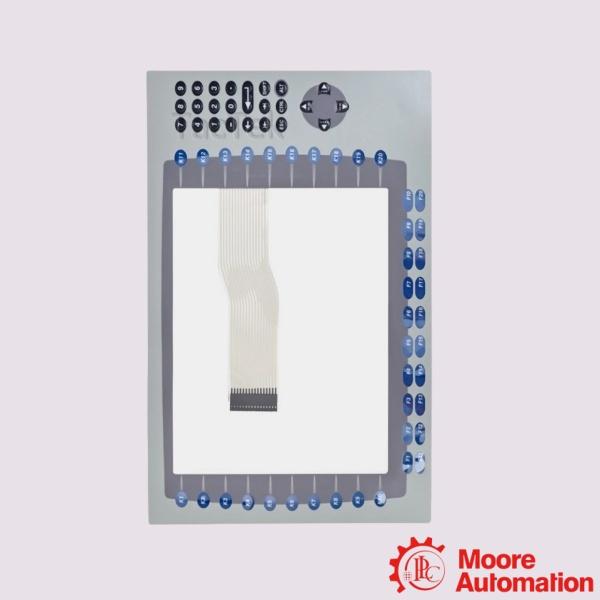

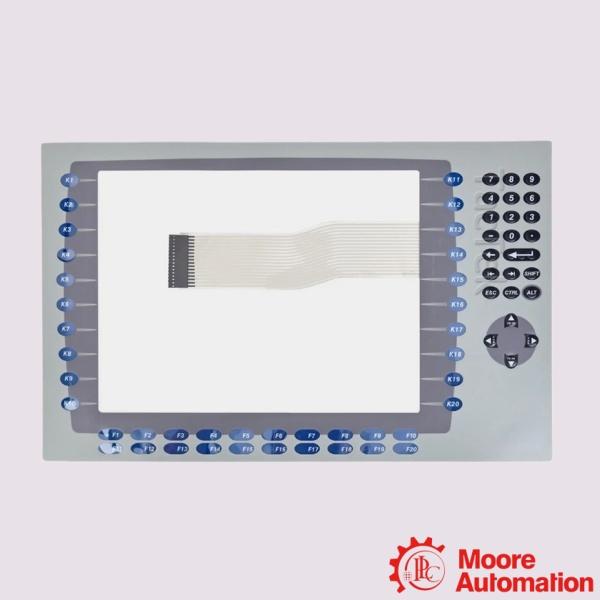

A:The terminal uses a keypad interface protected by a durable stainless-steel membrane. It includes navigation keys, numeric keys, and programmable function keys that allow operators to interact efficiently with industrial control systems.

Q:What power supply does the 2711P-K12C4A8 require?
A:This model uses a 100–240 VAC power input and is intended for installation in control panels with the required AC supply.

Description

The PLC 2711P-K12C4A8 terminal is used for local machine operation, parameter entry, alarm viewing, and process status monitoring in industrial control applications. The unit supports FactoryTalk View Machine Edition runtime applications and communicates with PLC and automation devices through Ethernet and RS-232 communication ports. USB ports are available for peripheral connection and application transfer. The terminal uses Windows CE 6.0 operating system with 512 MB RAM and 512 MB nonvolatile storage memory. The 2711P-K12C4A8 includes a 40-key keypad consisting of numeric keys, navigation keys, and configurable function keys. It supports SD card storage and is installed in control panels where operators need direct access to machine information and control functions.

Parameter

Model: 2711P-K12C4A8 PanelView Plus 6 Operator Terminal
Display Size: 12.1 inches
Display Type: Color active-matrix TFT
Resolution: 800 x 600, 18-bit color graphics
Keypad: 1 million presses
Input Voltage range: 100-240VAC
Input Frequency: 50-60 Hz

Application areas

The PLC 2711P-K12C4A8 detailed application areas  include:

• Slurry Pumping and Thickener Skids: Handles operational configuration adjustments for multi-stage chemical reagent pumps and settling tank valves, utilizing its clear 12.1-inch display to map out complex pipeline P&ID flows.
• Boiler Plant Auxiliary Control Rooms: Monitors feedwater pre-heaters, deaerators, and draft fan configurations inside large industrial steam facilities or university district-heating plants.
• Gas Compression and Dehydration Skids: Serves as the primary human interface on localized compressor packages, displaying real-time vibration bars, bearing temperatures, and anti-surge valve feedback.
