PLC 1336-WB035 dynamic braking chopper module

Frequently asked questions
Q:What is the function of a dynamic brake chopper module?
A:The module monitors the DC bus voltage of the drive. When regenerative energy increases the DC bus voltage during motor braking, the chopper activates the external brake resistor to dissipate the excess energy.

Q:What is the minimum brake resistance for 1336-WB035?
A:The minimum brake resistance is 9.0 ohms. Using a resistor with lower resistance may damage the chopper module. Always verify resistor value matches the module specification before installation.

Q:Does the 1336-WB035 provide fault indication?
A:Yes. The module includes a brake fault contact that can be used by the drive system for monitoring brake module status.

Description

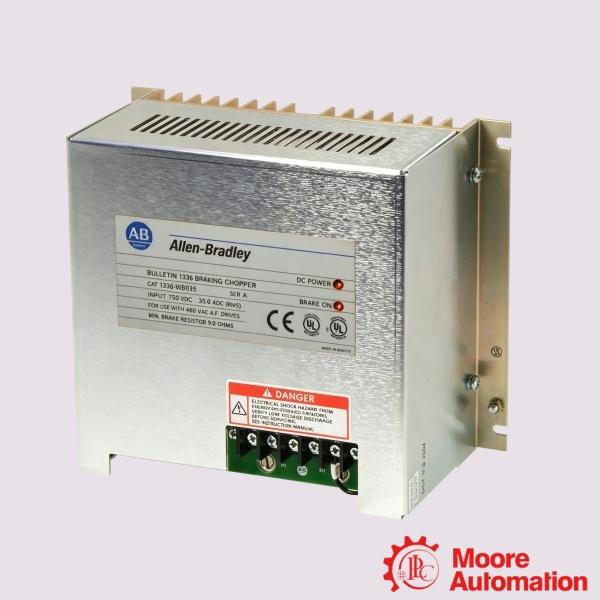

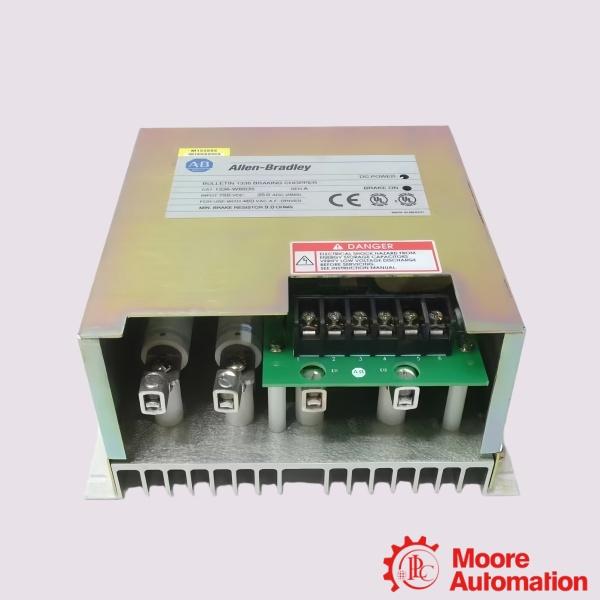

The PLC 1336-WB035 is a Dynamic Brake Chopper Module used with Bulletin 1336 AC drive systems. The module is connected to the DC bus of the drive and controls the flow of regenerative energy generated during motor deceleration. When the DC bus voltage rises above the preset level, the chopper circuit switches the external braking resistor into the circuit, converting excess electrical energy into heat. The 1336-WB035 is rated for 750 VDC input and 35 A DC (RMS) continuous braking current. It is designed for use with 460 VAC adjustable frequency drives and operates together with an external braking resistor to improve braking performance during applications requiring frequent stopping or rapid deceleration. The module includes power terminals for DC bus connection, brake resistor connection, and fault monitoring contacts for integration with the drive control system. The unit is installed in industrial motion control applications where motor loads produce regenerative energy during stopping cycles. Typical applications include cranes, hoists, conveyors, centrifuges, and other equipment using 1336 drive platforms that require additional dynamic braking capability.

Parameter

Model: 1336-WB035 dynamic braking chopper module
Minimum Brake Resistance: 9.0 Ohms
Operating Temp (Chopper): -10°C to +40°C (14°F to 104°F)
Operating Temp (Resistor): -10°C to +50°C (14°F to 122°F)
Storage Temperature: -40°C to +70°C (-40°F to 158°F)
Humidity: 5% to 95% non-condensing
Continuous Braking Current: 35 A DC (RMS)

Application areas

• Overhead Bridge Crane Hoist Units: Clamps the DC bus voltage during continuous descending cycles to prevent the drive from tripping on an overvoltage fault, which could cause a dangerous loss of load control.
• Wastewater Treatment Dewatering Centrifuges: Handles the long, high-energy braking cycles required to slow down heavy sludge separation drums during cleaning or cycle-stop sequences.
• Automotive Body Shop Assembly Lines: Regulates deceleration currents for heavy-duty skid conveyors carrying vehicle chassis between automated welding or painting robot cells.
