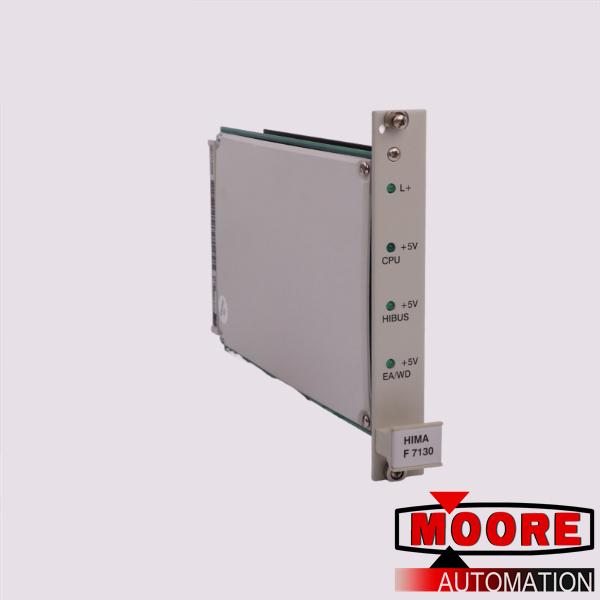

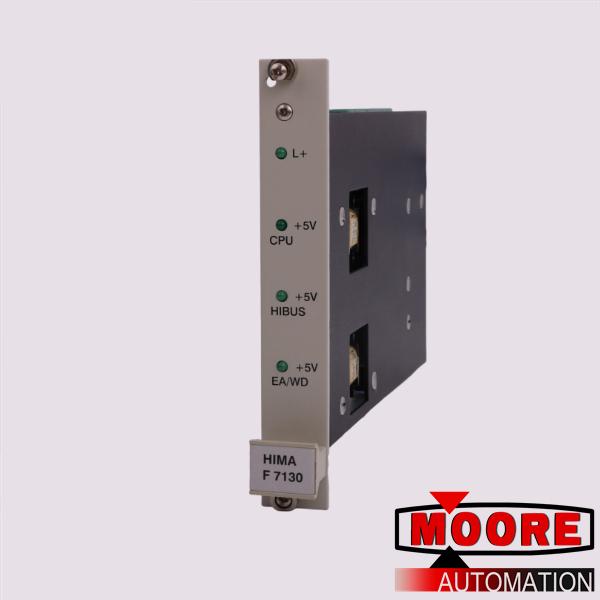

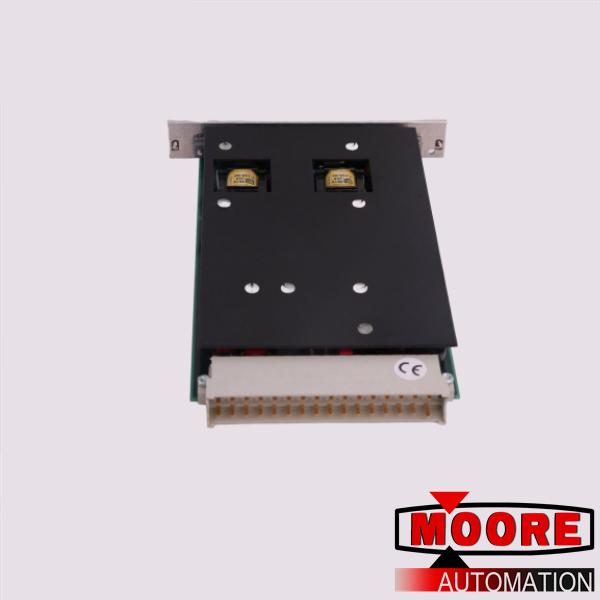

F7130A HIMA power supply module

Brand/ Manufacturer:
HIMA
Dimensions:
12.7cm*2.5cm*20.3cm
Weight:
0.3kg
Country of Origin: :
Germany
Description:
Power Distribution Module

Inquiry now

Mfr. Part Number:	F7130A

Manufacturer:	HIMA

Description:	Spare Model: F7130A Product Parameters: F7130A Power Distribution Module In stock ready to ship

Full Description:	Operating data 24 V DC, -15 ... +20 %, rpp < 15% Primary fuse 5 A gL Outputs for central device/IO modules 5 V DC, ± 0.25 V / 10 A

Sales manager: Tiffany Guan plcsale@mooreplc.com + 86 18030235313 dddemi33 2851195473

Product Describe:

Product Model: F7130A
Spare Model: F 7130A
Product Parameters: F7130A Power Distribution Module
MANUFACTURER: HIMA
Operating data 24 V DC, -15 ... +20 %, rpp < 15%
Primary fuse 5 A gL
Outputs for central device/IO modules 5 V DC, ± 0.25 V / 10 A
HIBUS 5 V DC, ± 0.25 V / 1
A Efficiency rate ≥ 70%
Space requirement 4 TE

The module supplies PES H41q with 5 VDC from a main supply of 24 VDC. It is a DC/DC con-verter with electrical isolation between input and output voltage. The module is equipped with overvoltage protection and current limitation. The outputs are short-circuit proof. The supply connections are separated for the central device/IO modules and HIBUS interface.The present input voltage (L+) and the output voltages are indicated with LEDs on the front plate. A proper operation of the module is still assured if the LED 5 V CPU/EA iluminates only slightly.

About HIMA

German hima company, founded in 1908, is a world-famous professional manufacturer of safety control systems. It is widely distributed in petrochemical, offshore oil platforms, oil and gas long-distance pipelines, metallurgy, electric power, machinery manufacturing, transportation, large public buildings and other industries all over the world.

Hima products support international standard protocols and can be seamlessly integrated into any DCS and automation environment.It has been widely used on M2M fields, such as intelligent transportation, smart grid, industrial automation, telemetry, finance, POS, water supply, environment protection, post, weather, and so on.
