in stock#
Brand/ Manufacturer:
HIMADimensions:
31 x 2.9 x 23 cmWeight:
1.4 kgCountry of Origin: :
GERMANYDescription:

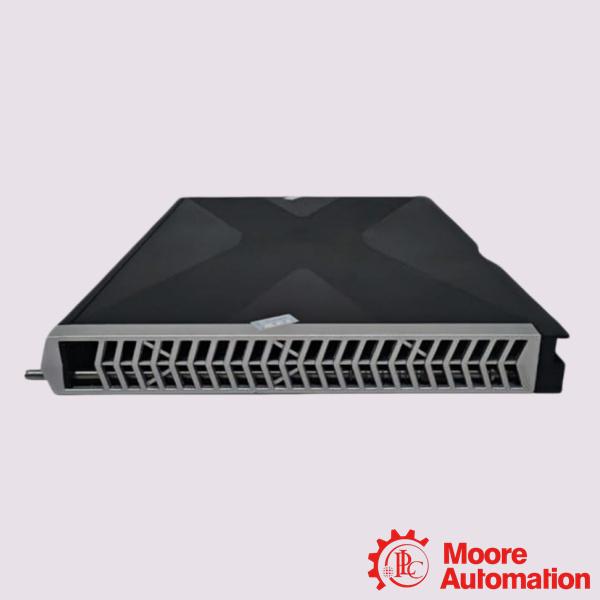

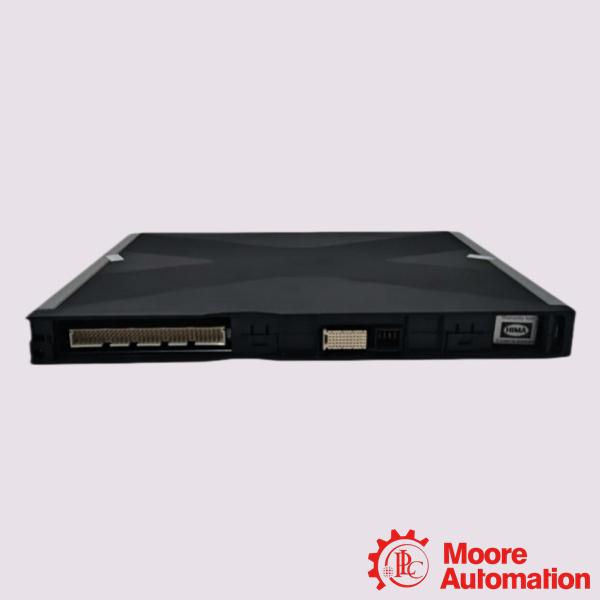

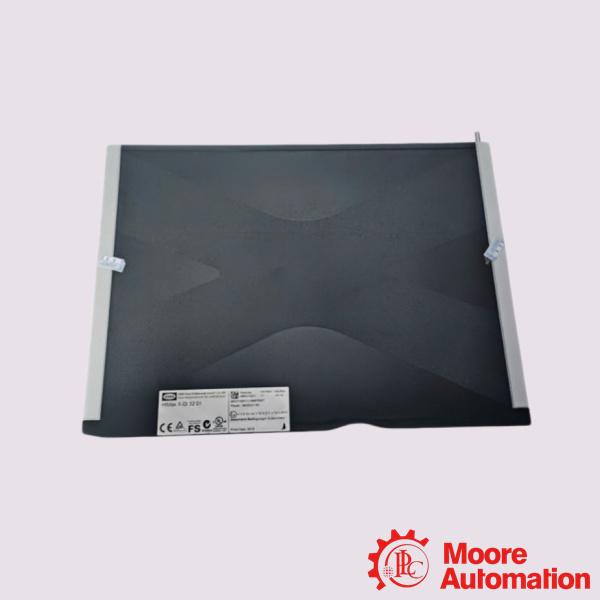

HIMA HIMAX X-AI3201 Analog input module
| Mfr. Part Number: |
HIMAX X-AI3201 |
| Manufacturer: |
HIMA |
| Description: |
HIMA HIMAX X-AI3201 Analog input module |
| Full Description: |
The HIMAX X-AI3201 analog input module is intended for use in the programmable electronic system(PES) HIMax |
| Status: |
In stock |
Click to get price :
: plcinfo@mooreplc.com
: +86 18020776786
: mooreplc
Moore Automation Limited is not affiliated with or a distributor for HIMA. The depiction, description, or sale of products featuring names, trademarks, brands, and logos is for identification and/or reference purposes only and does not indicate any affiliation with or authorization by any rights holder.
Product Description:
The HIMAX X-AI3201 analog input module is intended for use in the programmable electronic system (PES) HIMax. The module is inserted into any of the base plate slots with the exception of the slots reserved for system bus modules. The module is used to evaluate up to 32 analog input signals.
Powered by a 24 VDC supply, the HIMAX X-AI3201 ensures stable and reliable operation in demanding industrial environments. It supports a current input range with a minimum of 500 mA and a maximum of 1.5 A, enabling consistent performance when interfacing with multiple field transmitters and sensors.
Featuring a 12-bit digital resolution and a 200 Ω shunt for current measurement, the module provides precise and accurate signal acquisition. Additionally, with interference voltage suppression greater than 60 dB, the HIMAX X-AI3201 ensures robust performance and high signal integrity even in electrically noisy industrial conditions.
Application:
Offshore platforms and refineries: Monitoring pressure, level and flow for fire protection systems.
Nuclear power and conventional power plants: Monitoring cooling water temperature, steam pressure and radiation levels.
Turbine control: Providing overspeed protection for rotating machinery such as steam turbines and compressors. Water treatment and gas supply: Safety interlocks and monitoring in urban gas dispatch or large water treatment plants
Diagnostic Function:
Self-check Function: It features highly comprehensive internal self-diagnosis (Cross-check).
Channel Monitoring: It can detect open circuits, short circuits, over-limit conditions, and faults of the A/D converter.
Indicator Lights: The panel is equipped with multi-color LEDs (Run, Error, OK) to visually display the status of the module and channels.
Frequently Asked Questions (FAQ)
Q:What is the interference suppression capability of the HIMA HIMAX X-AI3201 Analog Input Module?
A:The HIMA HIMAX X-AI3201 provides interference voltage suppression greater than 60 dB, ensuring reliable signal acquisition even in noisy environments.
Q:What is the sampling time of the HIMA HIMAX X-AI3201 Analog Input Module?
A:The HIMA HIMAX X-AI3201 has a fast sampling time of 2 ms, enabling real-time monitoring and quick response in safety-critical applications.
Q:What is the resolution of the HIMA HIMAX X-AI3201 Analog Input Module?
A:The HIMA HIMAX X-AI3201 features a 12-bit digital resolution, ensuring accurate and precise signal measurement.
If you need other brands products like below, please feel free write email to plcinfo@mooreplc.com
You will get Best price and Professional service (24/7)
|
Detailed Parameter |
Part Number：HIMAX X-AI3201 |
|
Supply Voltage |
24 VDC |
|
Current Input |
Min 500mA, Max 1.5 A |
|
Operating Temperature |
0...+60℃ |
|
Storage Temperature |
-40...+85℃ |
|
Type of Protection |
IP20 |
|
Operating Range |
0...22.5 mA |
|
Digital Resolution |
12-bit |
|
Shunt for Current Measurement |
200Ω |
|
Interference Voltage Suppression |
> 60 dB |
|
Sampling Time |
2 ms |
|
Number of Transmitter Supplies |
32 |
|
