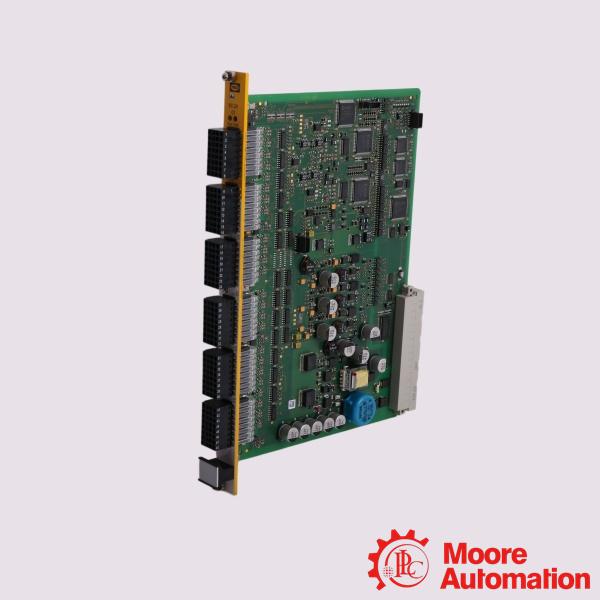

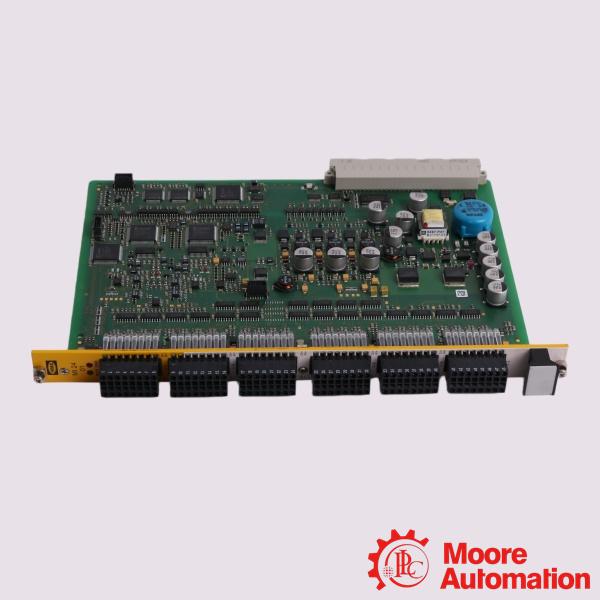

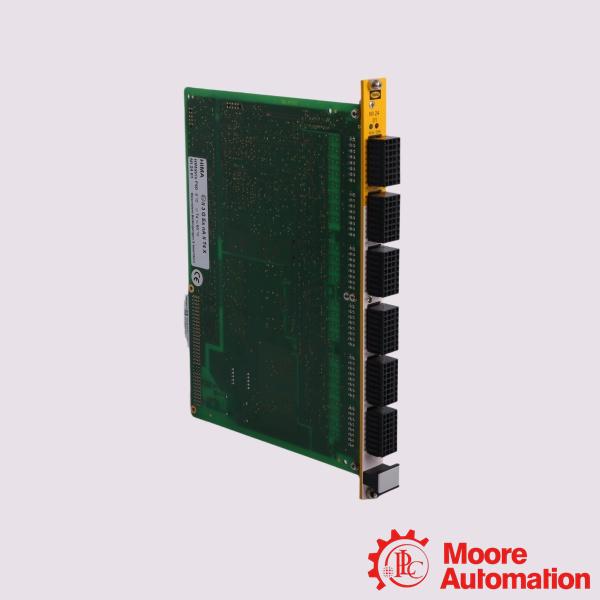

HIMAX X-AO1601 | HIMA Analog Output Module

in stock#

Brand/ Manufacturer:
HIMA
Dimensions:
2 x 18.5 x 26.1 cm
Weight:
0.34 kg
Country of Origin: :
GERMANY
Description:
HIMA HIMAX X-AO1601 Analog Output Module

Inquiry now

Mfr. Part Number:	HIMAX X-AO1601

Manufacturer:	HIMA

Description:	HIMA HIMAX X-AO1601 Analog Output Module

Full Description:	The HIMA HIMAX X-AO1601 Analog Output Module features a 4 A fuse for every 16 modules

Status:	In stock

Click to get price : : plcinfo@mooreplc.com : +86 18020776786 : mooreplc

Moore Automation Limited is not affiliated with or a distributor for HIMA. The depiction, description, or sale of products featuring names, trademarks, brands, and logos is for identification and/or reference purposes only and does not indicate any affiliation with or authorization by any rights holder.

Product Description:

The HIMAX X-AO1601 is a Analog Output Module for the HIMax scalable safety platform. Equipped with 16 safe analog output channels supporting 0/4-20 mA signals. Certified to SIL 3 (IEC 61508/61511), the HIMAX X-AO1601 ensures maximum signal integrity and fault tolerance.

Operating at a rated voltage of 24 V DC with a voltage drop of only 0.9 V, the HIMAX X-AO1601 guarantees stable and precise signal transmission. Its low ripple (≤ 10 %) and efficient fusing enhance reliability and protect the module against overcurrent conditions.The module’s power loss is kept below 500 mW, while the contact loading supports 30 V DC at 1 A, ensuring that connected actuators and devices receive consistent and accurate control signals.

Application:

Oil and Gas: Control and regulating valves, throttle valves, and management of emergency shutdown logic for refineries or offshore platforms.
Power Generation: Safety control of power station boilers and turbine control.
Chemical and Petrochemical Industries: Dynamic process control in ethylene cracking units.
Transportation: Auxiliary safety control systems for ships or rail transport.

Frequently Asked Questions (FAQ)

Q:What is the protection rating and maximum safe voltage of the HIMA HIMAX X-AO1601?
A:The HIMAX X-AO1601 module has an IP20 degree of protection and a maximum safe voltage of 250 V, suitable for safe industrial installations.

Q:What is the power loss and contact loading of the HIMA HIMAX X-AO1601?
A:The HIMAX X-AO1601 module has a power loss of ≤ 500 mW and a contact loading of 30 V DC, 1 A, ensuring efficient operation for connected actuators.

Q:What is the warranty period for HIMAX X-AO1601?
A:A standard one-year warranty is typically offered for new and original items.

If you need other brands products like below, please feel free write email to plcinfo@mooreplc.com

You will get Best price and Professional service (24/7)

Detailed Parameter	Part Number: HIMAX X-AO1601
Rated Voltage	24 V DC
Voltage Drop	0.9 V
Ripple	≤ 10 %
Fusing	4 A, in each case for 16 modules
Power Loss	≤ 500 mW
Contact Loading	30 V DC, 1 A
Ambient Temperature	-20 ... 60 °C (-4 ... 140 °F)
Storage Temperature	-40 ... 85 °C (-40 ... 185 °F)
Degree of Protection	IP20
Maximum Safe Voltage	250 V
