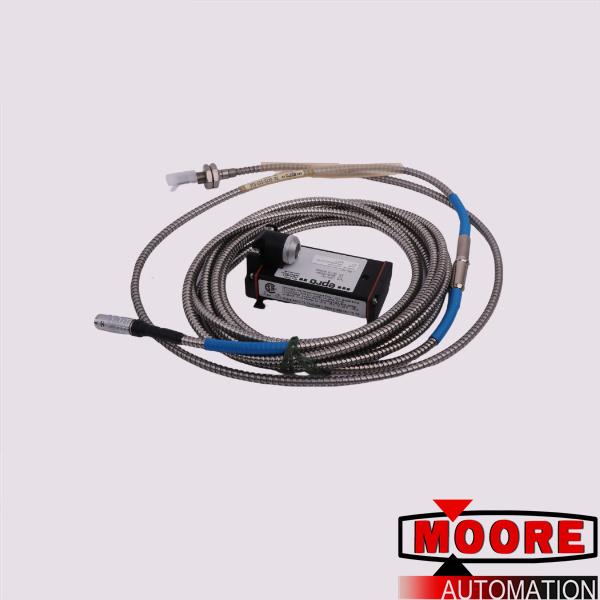

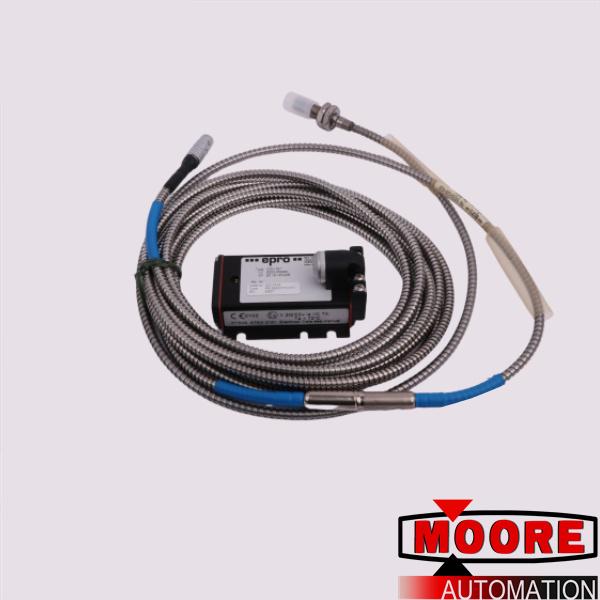

PR6423/013-000-CN Emerson Sensor

Brand/ Manufacturer:
EMERSON
Dimensions:
4.4cm*11.4cm*12.7cm
Weight:
0.3kg
Country of Origin: :
United States
Description:
Eddy Current Sensor

Inquiry now

Mfr. Part Number:	PR6423/013-000-CN

Manufacturer:	Emerson

Description:	Non-contact sensor designed for critical turbomachinery applications such as steam, gas and hydro turbines, compressors, gearboxes, pumps and fans to measure radial and axial shaft dynamic displacement; position, eccentricity and speed. IN STOCK READY TO SHIP

Full Description:	EMERSON PR6423/013-000 EPRO PR 6423/013-000 Original Sealed Package 100% Brand New. 365 days warranty.

plcsale@mooreplc.com + 86 18030235313 dddemi33 2851195473

Product Describe:

Linear Measurement Range 2 mm (80 mils)
Initial Air Gap 0.5 mm (20 mils)
Incremental Scale Factor (ISF) ISO: 8 V/mm (203.2 mV/mil) ± 5% @ temperature range 0 to 45°C (+32 to +113°F)
Deviation from best fit straight line (DSL) ± 0.025 mm (± 1 mil) @ temperature range 0 to 45°C (+32 to +113°F)

Eddy current sensor
Non-contact sensor designed for critical turbomachinery applications such as steam, gas and hydro turbines, compressors, gearboxes, pumps and fans to measure radial and axial shaft dynamic displacement; position, eccentricity and speed.

Sensor Signal Converter designed for critical turbo machinery applications such as steam, gas and hydro turbines, compressors, pumps and fans to measure radial and axial shaft displacement, position, eccentricity and speed/key

Measuring systems with eddy current transducers serve the measurement of mechanical quantities, such as shaft vibration and shaft displacement. Applications with such systems can be found in different industrial areas and laboratories. Due to the contactless measuring principle, small dimensions, a rugged construction and the endurance against aggressive media, this type of sensor is optimally suitable for the use at all kind of turbo machines.

Epro offers a wide range of devices for measuring and monitoring. Measuring quantities are e.g.: - Air-gaps between rotating and stationary parts - Vibrations of machine shafts and housing parts - Shaft-dynamic and eccentricity - Deformation and deflection of machine-parts - Axial and radial shaft displacement - Abrasion and position measurements at thrust bearings - Thickness of oil film in the bearing - Differential expansion - Housing expansion - Valve position Construction and dimensions of measuring amplifier and relevant sensors apply to international standards, e.g. API 670, DIN 45670 and ISO 10817-1.

General Electric	Foxboro	Emerson	Honeywell
FC200022-01	P0913UU-OA/P0913UTR	KJ3002X1-BG1	51198685-100 SPS5710
IC693CPU360	P0914M8B/P0913CX-OD	KJ3002X1-BB1	CC-PAIH01 51405038-175
IC693CMM321	P0913UG-OA/P0913UFA	KJ3001X1-BB1	51403519-160
IC693MDL753	P0913UTC/P0913UU-OA	KJ3004X1-EA1	MC-TDOY22 51204162-175
IC693PWR321	P0914KJE/P0914KP-OA	KJ4001X1-BA2	80363975-150
IC693ALG392	P0913UU-OB/P0913UTD	KJ4001X1-BE1	ACX633 51196655-100
IC693ACC310	P0914RCE	KJ3002X1-BC1	51402089-100
IC693ALG223	P0913YN-OA	KJ3002X1-BF1	51304754-150
IC693BEM331	P0914HJB	KJ3001X1-BJ1	MC-PLAM02 51304362-150
IC693MDL645	P0913XZF/P0913YA-OA	KJ4001X1-CG1	MC-TSIM12 51303932-476
IC200ALG264	P0914RD-OC	KJ4001X1-CH1	05701-A-0302
IC200ALG326	030340D/SY-0303440	KJ2002X1-BA1	38001704-100
IC200CPU002	SY-0303440E/SY-0303440	KJ3004X1-BA1	MC-PAOY22 80363969-150
IC200MDL241	P0914RWB	KJ1501X1-BB1	MC-PHAI01 51403479-150
IC697PWR711	P0973G6P0D	KJ4001X1-CA1	80363969-150
IC200CHS022G	RH923YUOB	KJ4001X1-CC1	51402089-100
IC200ALG240-EB	RH973GNOC	KJ4001X1-CB1	FC-SDIL-1608 V1.3
IC693MDL646C	P09145XREVD	KJ2005X1-MQ1	51303932-476
IC200MDL650E	L0122DFUSF20120117	KC3011X1-BA1	FC-SDIL-1608 V1.3
IC200PWR102D	0303383D	KJ3202X1-BA1	FC-SDOL-0424
IC200MDL750D	P0926MQOD	KJ3222X1-BA1	51304754-150
IC200ALG264C	PH916TBOA	KJ3222X1-BA1	MC-PDOY22 80363975-150
IC200ALG260D	P0915GBE	KJ2003X1-BB1	CC-PAOH01 51405039-175
