Emerson 38B5786X092 DVC6200 Valve Controllers Pneumatic Relay Assembly

Parameter

Model: 38B5786X092 DVC6200 Valve Controllers Pneumatic Relay Assembly
Max Supply Input Pressure: Up to 10.0 bar (145 psig), or maximum actuator rating
Minimum Input Requirement: 0.3 bar (5 psig) above maximum required actuator pressure
Output Delivery Range: 0 to 100% of maximum supply pneumatic pressure
Air Quality Standards: ISO 8573-1 compliant; Max particle size ≤ 40 μm
Pneumatic Connections: 1/4-18 NPT internal thread interface
Compatible Supply Fluids: Clean, dry air or non-corrosive natural gas

Description

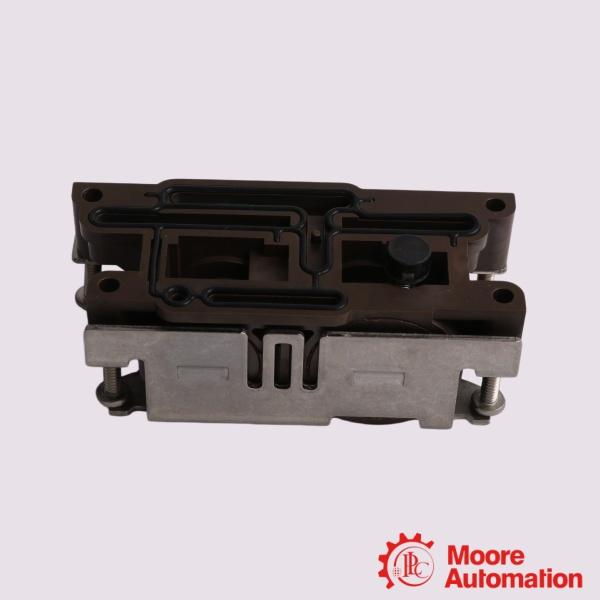

The Fisher 38B5786X092 is a genuine relay assembly for Emerson Fisher FIELDVUE DVC6200 and DVC6205 digital valve controllers. It is configured as a Housing B, single-acting reverse (Relay B) assembly with a standard bleed design and is intended for use with all compatible actuators except GX actuators. As a complete replacement assembly, it includes the relay body, shroud, relay seal, and mounting screws, allowing maintenance or replacement without sourcing individual components. The relay assembly forms part of the pneumatic output section of the digital valve controller and is identified by Emerson as a recommended spare part for servicing compatible FIELDVUE instruments. It is manufactured to match the original controller configuration, ensuring proper installation and compatibility with DVC6200 and DVC6205 digital valve controllers used in process control applications.

Frequently asked questions

What is the Fisher 38B5786X092?
The Fisher 38B5786X092 is a genuine Relay Assembly for Fisher FIELDVUE™ DVC6200 and DVC6205 digital valve controllers. It is configured as a Housing B, single-acting reverse (Relay B) assembly with a standard bleed design.

Which digital valve controllers are compatible with the 38B5786X092?
The 38B5786X092 is designed for use with FIELDVUE DVC6200 and DVC6205 digital valve controllers configured with the appropriate pneumatic relay arrangement.

What is included in the Fisher 38B5786X092 relay assembly?
The assembly includes the relay, shroud, relay seal, and mounting screws, providing a complete replacement kit for maintenance and servicing.

Application areas:
Oil and Gas Refining: Controlling fuel gas feeds, distillation columns, and product separation streams.

Chemical and Petrochemical Processing: Managing chemical reactants, cooling water loops, and high-pressure steam lines.

Power Generation: Controlling boiler feedwater systems, turbine steam bypass loops, and auxiliary water treatment systems.

Pulp, Paper, and Water treatment: Regulating chemical dosing, stock flow feeds, and municipal water filtration distribution lines.
