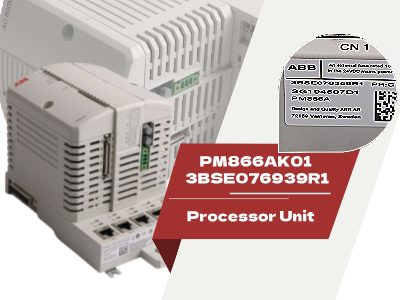

Overview of the ABB PM866AK01 Controller The ABB PM866AK01, identified by article number 3BSE076939R1, is a powerful, compact CPU controller designed for demanding industrial environments. Known for its reliability, modularity, and performance, this controller serves as an integral part of ABB’s automation solutions. With versatile connectivity, robust memory, and a unique hardware design, the PM866AK01 is well-suited for applications requiring seamless communication and efficient processing. Let’s dive into the key features and advantages that make this controller a standout choice. Key Technical Specifications of the ABB PM866AK01 The PM866AK01 controller is built to deliver high-speed processing and reliable performance for complex control applications: Clock Frequency: Operating at a clock frequency of 133 MHz, the PM866AK01 executes control instructions quickly and accurately. Performance: Capable of handling 1000 boolean operations in just 0.09 ms, the controller ensures rapid response times for critical applications. Memory: Equipped with 64 MB of RAM, with approximately 51.389 MB available for application use, it provides sufficient memory to support large and complex control programs. Real-Time Clock and Indicators: The CPU board includes a real-time clock, LED indicators for status monitoring, and an INIT push button, simplifying diagnostics and initialization. These specifications highlight the controller’s ability to handle demanding control processes while ensuring the availability of resources to meet application-specific requirements. Network Connectivity and Communication Options Connectivity is crucial for industrial controllers, and the ABB PM866AK01 excels in providing flexible options for network communication: Ethernet Ports: The base plate features two RJ45 Ethernet ports (CN1 and CN2), enabling seamless connection to a Control Network. Serial Ports: There are two RJ45 serial ports (COM3 and COM4) available. COM3 is an RS-232C port with modem control, while COM4 is isolated for connecting configuration tools, allowing for efficient management and configuration. CPU Redundancy: For applications requiring high availability, the PM866AK01 supports CPU redundancy, enhancing system reliability by allowing a secondary CPU to take over if the primary fails. This diverse connectivity suite allows the controller to be integrated into various industrial networks, ensuring reliable communication across the system. Ease of Installation and Modularity Designed with simplicity and flexibility in mind, the ABB PM866AK01 makes installation and maintenance efficient and hassle-free: DIN Rail Mounting: The controller uses a unique slide-and-lock mechanism, allowing for easy attachment and detachment on DIN rails, which simplifies installation. Modular Design: The modular construction allows for step-by-step expansion as system requirements grow, making it a flexible choice for applications of varying scales. Unique Ethernet Addressing: Each C...

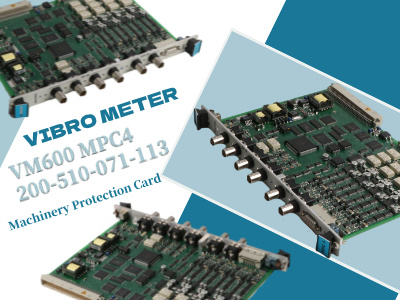

Overview of the VM600 MPC4 Machinery Protection Card The VIBRO-METER VM600 MPC4 200-510-071-113 stands as a testament to advanced technology in machinery protection systems. Developed by Meggitt’s Vibro-Meter® product line, this card is essential for safeguarding critical rotating machinery. With its ability to deliver continuous, real-time monitoring, the VM600 MPC4 provides invaluable insights into the health and performance of equipment, ensuring operational efficiency and safety. Key Features and Capabilities The VM600 MPC4 is equipped with a suite of features tailored for superior machinery monitoring and protection: Four Dynamic Signal Channels: These channels measure various parameters including acceleration, velocity, displacement, and vibration, providing a comprehensive overview of machine performance. Dual Tachometer Channels: Designed to accommodate proximity probes, magnetic pulse pickups, and TTL signals, these channels ensure precise speed monitoring, crucial for dynamic machinery. Programmable Filters: The card offers both broad-band and narrow-band filtering options, enabling targeted analysis of machinery behavior to detect anomalies early. Order Tracking Capabilities: Real-time monitoring of amplitude and phase allows for a deeper understanding of the machinery’s operational state. Adaptive Alert Levels: This feature provides customizable alarm thresholds, minimizing false alarms while ensuring reliable protection for critical systems. Advanced Signal Processing and Diagnostics The MPC4 card is built with cutting-edge Digital Signal Processing (DSP) techniques, enabling precise measurements and diagnostics: Digital Filtering: This functionality reduces noise and enhances signal clarity, using methods like RMS, mean value, or peak-to-peak rectification. Integration and Differentiation: The card can convert signals between displacement, velocity, and acceleration, increasing versatility in data interpretation. User-Friendly Front-Panel BNC Connectors: These connectors allow for easy access to buffered raw signals, facilitating quick on-site diagnostics and troubleshooting. Real-Time LED Indicators: Status and alarm updates are visually communicated through LED indicators, enhancing operational awareness. Hot-Swappable Design for Continuous Operation One of the standout features of the VM600 MPC4 is its hot-swappable design, allowing users to replace or upgrade the card without shutting down the entire system. This capability significantly reduces maintenance downtime and operational disruption. Key advantages include: Live Card Insertion and Removal: This feature permits seamless replacements and upgrades without interrupting system functionality. Multiple Version Options: The MPC4 is available in various configurations, including standard, separate circuit, and SIL-certified variants to cater to diverse industry demands. Integrated Sensor Power Supplies: The card can directly power accelerometers, proximity probes, and other...

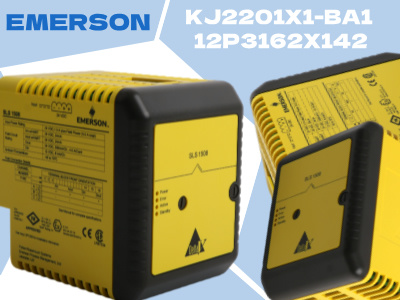

Introduction to the SLS1508 SIS Smart Logic Solver The Emerson DeltaV KJ2201X1-BA1 12P3162X142 SLS1508 Smart Logic Solver (SIS) is a critical component in process automation, known for ensuring safety and reliability in industrial operations. It is designed to meet stringent safety standards while delivering robust performance under demanding environmental conditions. In this post, we’ll explore the key power, environmental, and operational specifications of the SLS1508, along with essential guidelines for safe installation and removal. Power Specifications: Delivering Reliable Operation Local Bus Power: 24 VDC at 1 A Field Power: Maximum of 4 A The SLS1508 SIS is designed with two primary power inputs. The local bus power ensures communication within the control system, while the field power provides energy for connected field devices. With these dual power options, the logic solver guarantees smooth operation and ensures continuous performance in safety-critical environments. Environmental Specifications: Built to Withstand Tough Conditions The Emerson DeltaV SLS1508 is built for demanding industrial settings, with the following environmental tolerances: Ambient Temperature: -40°C to +70°C Shock Resistance: 10g ½ sine wave for 11 milliseconds Vibration Tolerance: 1mm peak-to-peak from 2 to 13.2 Hz; 0.7g from 13.2 to 150 Hz Additionally, the unit meets ISA-S71.04 – 1985 G3 standards for airborne contaminants, ensuring protection against harsh chemicals. Its ability to operate in 5 to 95% non-condensing humidity makes it reliable in diverse environments such as oil refineries, chemical plants, and offshore platforms. Shock and Vibration: Ensuring System Stability Industrial environments can expose equipment to significant shock and vibration. The SLS1508 is built to handle: Shock: Withstands sudden impact up to 10g without failure. Vibration: Designed to perform optimally under continuous vibration, ensuring stable operation across a wide frequency range. These specifications make it ideal for applications in environments with heavy machinery and rotating equipment, where maintaining system stability is critical for safety. Installation and Removal: Following Safety Guidelines When handling the SLS1508, it’s essential to follow specific safety procedures to avoid equipment damage and ensure user safety: Field Power Isolation: Before removing or connecting the unit, ensure field power is disconnected at either the terminal or the bus. Non-Hazardous Zones: The device should not be removed or inserted with the system powered unless the area is confirmed to be non-hazardous. These measures help maintain system integrity and prevent potential hazards during maintenance activities. Compliance with Airborne Contaminant Standards The SLS1508 is certified to meet ISA-S71.04 Class G3 standards, ensuring it can operate effectively even in environments with high levels of corrosive airborne contaminants. This compliance makes the SLS1508 ideal for chemical a...

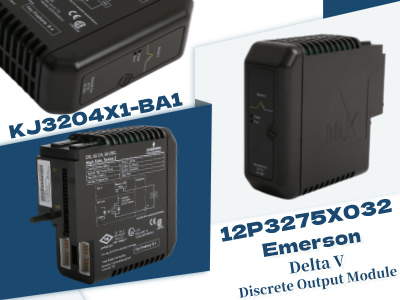

Overview of the KJ3204X1-BA1 Module The Emerson DeltaV KJ3204X1-BA1 discrete output module, identified by part number 12P3275X032, is designed to enhance control system functionality. This high-performance module supports 32 channels of discrete outputs, making it a critical component for industrial automation. Key Features and Specifications The KJ3204X1-BA1 module operates at 24 VDC and features high-side outputs, providing robust control for various applications. Its compact size, measuring 1.5" x 4.0" x 4.3" (3.8 cm x 10.2 cm x 10.8 cm), allows for easy integration into existing systems without consuming excessive space. Weighing just 0.1 kg (4 oz), it’s lightweight yet powerful. Manufacturer Insights Manufactured by Emerson, specifically under the Fisher-Rosemount brand, this module reflects the company’s commitment to quality and reliability in control solutions. Emerson is known for its innovation in automation technology, making this module a trusted choice for engineers and technicians alike. Applications in Industrial Automation The KJ3204X1-BA1 is ideal for a variety of industrial applications, including process control and equipment management. Its ability to handle multiple discrete outputs efficiently makes it suitable for sectors such as oil and gas, pharmaceuticals, and chemical processing. Installation and Compatibility Installation of the KJ3204X1-BA1 module is straightforward, ensuring compatibility with the Emerson DeltaV system. This ease of integration minimizes downtime and allows for quick implementation in operational settings. Conclusion The Emerson DeltaV KJ3204X1-BA1 discrete output module is a vital asset for any automation system, combining functionality, compact design, and reliability. Whether you’re upgrading existing equipment or building a new control system, this module stands out as an ultimate choice for industrial applications. EMERSON KJ3204X1-BA1 12P3275X022 EMERSON PR6423/000-000 CON011 EMERSON KJ3222X1-BA1 12P2532X092 EMERSON PR6423/012-100 CON011 EMERSON KJ3203X1-BA1 12P3270X032 EMERSON PR6423/00R-111 CON041 EMERSON KJ3001X1-BB1 12P0550X142 EMERSON PR6424/000-121 CON041 EMERSON KJ3001X1-BJ1 12P0555X152 EMERSON PR6423/004-111 CON041 EMERSON KJ3002X1-BA1 12P0680X122 EMERSON PR6426/000-131 CON041 EMERSON KJ3002X1-BB1 12P0683X082 EMERSON PR6423/002-030 CON021 EMERSON KJ3002X1-BG2 12P1731X062 EMERSON PR6424/006-131 CON041 EMERSON KJ3002X1-BA1 12P06801X122 EMERSON PR6423/00R-010 CON021 EMERSON KJ3002X1-BC1 12P0681X092 EMERSON PR6423/010-010 CON021 EMERSON KJ3002X1-BE1 12P0682X052 EMERSON PR6424/000-030 CON021  EMERSON KJ3002X1-BG2 12P1731X032 EMERSON PR6423/002-140 CON021 EMERSON KJ1501X1-BB1 12P0678X032 EMERSON PR6423/10R-141 CON031  EMERSON KJ3001X1-BA1 12P0549X112 EMERSON PR6423/10R-010 CON021 EMERSON KJ3001X1-BJ1 12P0555X152 EMERSON PR6423/010-110 CON021  EMERSON KJ3102X1-BA1 12P1863X032 EMERSON PR6423/010-110 CON021 EMERSON KJ3221X1-BA1 12P2531X082 EMERSON PR6423/013-030 CON021 EMERSON KJ3...

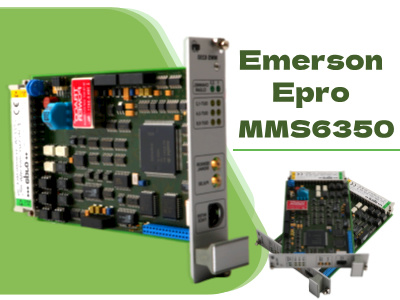

Understanding the EPRO MMS6350/DP System The EPRO MMS6350/DP digital overspeed protection system is engineered to ensure the highest safety standards in industrial settings. Certified to SIL3, it provides a robust solution for monitoring speeds and preventing overspeed situations in rotating machinery. This advanced system integrates seamlessly into existing frameworks, offering both reliability and efficiency. Core Features of the DOPS System At the heart of the EPRO MMS6350/DP is a microcontroller-based, three-channel measuring system. Each channel can handle up to six limit values, allowing for precise monitoring. The system includes dual current outputs, with one being electrically isolated, providing flexibility in operational configurations. Password protection at each monitor adds an extra layer of security, ensuring that only authorized personnel can make adjustments. Redundant Safety Mechanisms Safety is paramount in any industrial application. The DOPS systems come equipped with redundant power supplies for both monitors and backplane, which enhances system reliability. Self-test functions continuously assess the health of electronic circuits and sensors, while a mutual comparison of pulses between channels ensures that any discrepancies are detected and addressed promptly. Simplified Fault Detection and Integration The EPRO MMS6350/DP simplifies fault detection with clear, plaintext display messages. This user-friendly approach allows operators to quickly identify and rectify issues. Furthermore, the system supports easy integration into existing setups through preformed cables and offers both RS 232 and RS 485 interfaces for data exchange with host computers, facilitating real-time monitoring and analysis. Enhancing Operational Safety By incorporating advanced features like peak value memory, the EPRO MMS6350/DP allows operators to review the highest speed recorded before shutdown. This critical information aids in assessing mechanical loads and enhances safety evaluations. The system's alarm outputs, combined in a 2 out of 3 logic configuration, ensure that alerts are clear and actionable, significantly improving operational safety. Conclusion The EPRO MMS6350/DP digital overspeed protection system represents a significant advancement in the safety and monitoring of rotating machinery. With its comprehensive features, redundant safety measures, and ease of integration, it is an essential tool for industries prioritizing operational reliability. Investing in such systems not only enhances safety but also contributes to the longevity and efficiency of machinery in demanding environments.

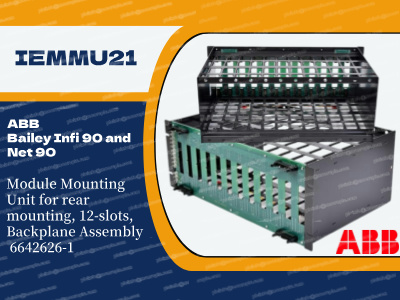

Introduction to the IEMMU21 In the fast-paced world of industrial automation, reliability and efficiency are crucial. The ABB Bailey IEMMU21Module Mounting Unit serves as a key solution for integrating ABB's Infi 90 and Net 90 systems. This article explores the features and importance of the IEMMU21 in contemporary control environments. Key Features of the IEMMU21 Designed for rear mounting configurations, the IEMMU21provides a streamlined space for module organization. Its 12-slot design facilitates extensive module integration while preserving a compact footprint. The backplane assembly (model number 6642626-1) guarantees reliable connectivity, essential for mission-critical applications. Dimensions and Specifications Dimensions play a vital role in selecting a mounting unit. The IEMMU21measures 19.0" x 7.0" x 13.0" (48.3 cm x 17.8 cm x 33.0 cm) and weighs 9 lbs 5.0 oz (4.2 kg). This balance of durability and manageability ensures straightforward installation across various setups. Compatibility with ABB Systems Tailored specifically for ABB Bailey's Infi 90 and Net 90 systems, the IEMMU21guarantees seamless integration with existing infrastructure. This compatibility allows users to meet the complex demands of industrial automation without requiring extensive modifications. Applications in Industrial Automation The ABB Bailey IEMMU21 is versatile, suitable for applications ranging from manufacturing to process control. Its modular design offers scalability, enabling businesses to adapt as operational needs evolve. Whether in a small plant or a large facility, the IEMMU21 enhances flexibility and boosts productivity. Conclusion The ABB Bailey IEMMU21 Module Mounting Unit is an indispensable asset for those using ABB’s Infi 90 and Net 90 systems. With its smart design, compact size, and robust compatibility, it stands out in the industrial automation sector. Investing in the IEMMU21 is a strategic move towards improving reliability and operational efficiency in any control system. INNIS21 YPQ103C YT204001-BG SA610 3BHT300019R1 3BHB002916R0001 UFC721AE INICT13A YPR104A YT204001-JP DO630 3BHT300007R1 3BHB000272R0001 UFC719AE01 SPASI23 YPQ102E YT204001-FT SB510 3BSE000860R1 HIEE300936R0101 UFC718AE01 SPASO11 YPQ102F YT204001-KF CI531 3BSE003825R1 3BHB003041R0101 UFC719AE01 INSEM01 YXU173E YT204001-JK CI540 3BSE001077R1 SDCS-PIN-51 3ADT220090R0006 IEMMU21 YPQ101E YT204001-FS CI543 3BSE010699R1 3BHB004661R0001 KUC711AE NTAI06 YPK107E YT204001-FY TC520 3BSE001449R1 GJR2369900R1100 83SR05F-E SPNIS21 YPC104B YT204001-BT DI651 3BHT300026R1 GJR2366000R1000 81EA02E-E SPCIS22 YPR104B YT204001-EH DI840 3BSE020836R1 GJR2372600R1515 87WF01G-E SPNIS21 YPH105E YT204001-FC AO810 3BSE008522R1 GJR2332200R0100 88FT01D SPNIS21 YPM102A YT204001-AA DI840 3BSE020836R1 GJR2355200R0001 81EB11A-E SPASI23 YPG110E YT204001-FD DSSR170 48990001-PC GJR2368900R2340 87TS01I-E SPNPM22 YPP105F YT204001-JN DSSS171 3BSE005003R1 GJR2368900R2200 87TS01I-E SPCIS22 YPP105E YT204001-FK PM...

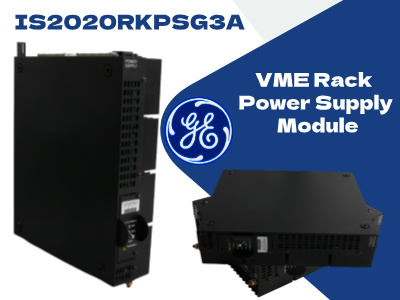

Understanding the IS2020RKPSG3A VME Rack Power Supply Module Overview of the IS2020RKPSG3A The IS2020RKPSG3A VME Rack Power Supply Module, produced by GE General Electric, plays a vital role in the Mark VI Speedtronic Control System Series. This module, known for its robustness and reliability, is designed to provide stable power within the intricate workings of turbine management systems. Features and Specifications The IS2020RKPSG3A boasts several notable specifications that set it apart in the industry. It operates with an input voltage rating of 125 Vdc and delivers a power output of 400W. Additionally, it features a Status ID output along with multiple +28V PSA outputs, making it versatile for various applications within turbine control systems. Historical Context and Development The Mark VI Series, including the IS2020RKPSG3A, is a significant advancement over its predecessor, the Mark V Turbine Control System. Introduced by GE in the late 1960s, the Speedtronic technology has evolved through several iterations, culminating in the Mark VI and VIe series, which represent some of the last iterations of this pioneering control system. Installation and Mounting Considerations Designed for efficient integration, the IS2020RKPSG3A module mounts on the right side of the VME control and interface racks. Its design ensures that it fits seamlessly into existing setups, promoting easy installation and maintenance. Protective Features A unique aspect of the IS2020RKPSG3A is its PCB coating. While it features a normal coating to protect its internal circuitry, it does not include the exhaustive conformal coating found in many similar products. This choice emphasizes the balance between reliability and manufacturing efficiency. Conclusion The IS2020RKPSG3A VME Rack Power Supply Module exemplifies GE's commitment to innovation and quality in turbine control systems. Its robust specifications, historical significance, and practical design make it a crucial component in modern industrial applications. Understanding its features and installation requirements can help users maximize the efficiency of their turbine management systems. Email: plcinfo@mooreplc.com | WhatsApp: +86-18020776786 | Skype: plcinfo@mooreplc.com IC695PBM300 IC200ALG620 IC693CMM321-KM IC693CHS391 IC200UDR005 IC200ALG331 IC693MDL740 IC698PSA100 IC200UEX636 IC200MDL741 IC695CHS012-BAMP IC3650RDG2B1B IC693MDL240 IC200PNS001 IC695ETM001 IC755CSS12CDB IC693MDL940 IC695CPU320 IC694MDL655 IC755CSS12CDB 1769-OW16 IC755CSS15CDA-AG IC695ACC302 IC698ACC701 IS200ACLEH1BAA IC200ALG320E IC698ETM001-EM IC693MDL753H IC200CHS002 IC693CBL301 IS420ESWBH1A IC693PWR331D IC200PWR001 IC695CMM004 IS200VICH1CBA IC693CPU374 IC200ALG326 IC693BEM341-CD IS200VAICH1DAB IS220UCSAH1A IC200ALG260 IC693PWR321S IS230TRLYH1B IC693CPU363 IC200MDL650 IC200CHS022 IS200TRLYH1BGG IC693ALG392 IC200MDL750 IC695ALG112 IS220PRTDH1B HE693THM166C IC693MDL645 IC695CRU320 IS200SRTDH2ACB 469-P5-HI-A20-E IC755CSW07CDA IC200PWR102 IS200VT...

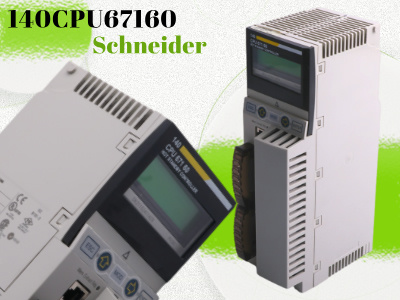

Schneider Electric 140CPU67160 CPU Module Specification Details Parameter Description Product Name 140CPU67160 Product Range Modicon Quantum Automation Platform Product Type Unity Processor Clock Frequency 266 MHz Mode of Transmission Multi Mode Number of Slots 2, 10, 16, 4, 6 Number of Racks 2 Local Racks Number of Distributed I/O Stations 63 Stations (1 Rack) - 3 Modbus Plus Networks Number of Remote I/O Stations 31 Stations (2 Racks per S908 Remote I/O) 31 Stations (2 Racks per Ethernet Quantum Remote I/O) 16 Stations (2 Racks per Ethernet X80 Remote I/O) Discrete I/O Number 31,744 Inputs, 31,744 Outputs - Remote 8,000 Inputs, 8,000 Outputs - Distributed (per Modbus Plus Network) Unlimited (31 Drops, Max 28 Slots) - Ethernet Remote I/O 0 - Local (Forbidden in Hot Standby Applications) Analog I/O Number 500 Inputs, 500 Outputs - Distributed (per Modbus Plus Network) Unlimited (31 Drops, Max 28 Slots) - Ethernet Remote I/O 1,984 Inputs, 1,984 Outputs - Remote 0 - Local (Forbidden in Hot Standby Applications) Application Specific I/O High-Speed Interrupt Inputs Serial Link Accurate Time Stamping Counter Communication Services Ethernet Router Function Number of Optional Modules 6 (Ethernet, Modbus, Modbus Plus, Profibus DP, Sy/Max)   Common Questions about Schneider Electric 140CPU67160 CPU Module What is the main function of the 140CPU67160 CPU Module? The 140CPU67160 CPU Module serves as the central processing unit for the Modicon Quantum automation platform, enabling control and monitoring of industrial processes through various I/O modules and communication networks. What is the maximum number of I/O stations supported by this module? The 140CPU67160 supports up to 63 distributed I/O stations with Modbus Plus and up to 31 remote I/O stations per S908 and Ethernet Quantum configurations. Can I use the 140CPU67160 in a Hot Standby configuration? No, the local I/O is forbidden in Hot Standby applications for this CPU module, meaning it cannot be used in such setups. What types of communication networks are supported? The module supports multiple communication networks, including Modbus, Modbus Plus, Profibus DP, and Ethernet. How many optional modules can be connected to the 140CPU67160? You can connect up to 6 optional modules to the CPU, which can include Ethernet, Modbus, Modbus Plus, Profibus DP, and Sy/Max. What is the clock frequency of the 140CPU67160? The clock frequency of the module is 266 MHz, providing sufficient processing power for automation tasks.
