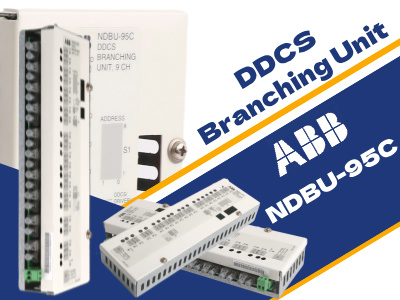

Overview of ABB NDBU-95C DDCS Branching Unit The ABB NDBU-95C DDCS Branching Unit is a highly reliable and efficient component designed for industrial systems requiring robust data communication and power conversion. As part of ABB’s suite of products, it is specifically engineered to support Direct Digital Control System (DDCS) thyristor power converters, ensuring seamless communication and operation within ABB Drives. This unit, identified by the model type 6398 5350 B, is widely recognized for its versatility and durability in demanding industrial environments. Key Features of the NDBU-95C DDCS Branching Unit The ABB NDBU-95C DDCS Branching Unit is equipped with a range of features that make it an indispensable component in industrial applications: 9-Channel Fiber Optic Connectivity: This ensures high-speed and reliable data communication between various components in the system. Compact Design: Measuring 4.0" x 2.0" x 11.0" (10.2 cm x 5.1 cm x 27.9 cm), this unit is designed to save space while maintaining operational efficiency. Lightweight Build: Weighing just 1 lb 9.0 oz (0.7 kg), it is easy to handle and integrate into existing systems. These features enable the NDBU-95C to provide seamless branching capabilities for DDCS networks, making it an ideal choice for industrial operators seeking high-performance solutions. Applications of ABB NDBU-95C in Industrial Systems The NDBU-95C DDCS Branching Unit plays a critical role in several industrial applications: Data Communication: The fiber optic channels ensure uninterrupted communication, which is essential for the coordination of complex industrial processes. Power Conversion Systems: By supporting DDCS thyristor power converters, it enhances the efficiency and reliability of power management systems. Integration with ABB Drives: This unit is designed to seamlessly integrate with ABB Drives, facilitating smoother operations and improved system performance. These applications underline the versatility and importance of the NDBU-95C in enhancing industrial automation and efficiency. Benefits of Using the ABB NDBU-95C DDCS Branching Unit Investing in the ABB NDBU-95C offers several advantages for industrial operators: Enhanced System Reliability: The high-speed fiber optic channels reduce the risk of data loss or communication delays. Space-Saving Design: Its compact size makes it suitable for installations where space is a premium. Ease of Maintenance: With its lightweight build and robust design, the unit is easy to install and maintain. These benefits make the NDBU-95C a cost-effective and reliable choice for industrial systems. Technical Specifications of the ABB NDBU-95C To better understand its capabilities, here are the technical specifications of the ABB NDBU-95C DDCS Branching Unit: Model Type: 6398 5350 B Fiber Optic Channels: 9 Dimensions: 4.0" x 2.0" x 11.0" (10.2 cm x 5.1 cm x 27.9 cm) Weight: 1 lb 9.0 oz (0.7 kg) These specifications highlight the unit’s compact yet powerful desi...

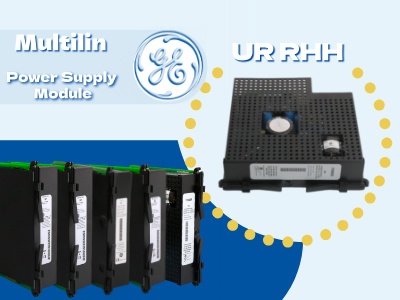

What is the UR-RHH Power Supply Module? The GE UR-RHH is a versatile power supply module designed to be integrated into the Universal Relays series. It's a crucial component that ensures reliable and consistent power delivery to the relay and its connected devices. Key Features and Specifications Voltage Ranges: Low Range (LO): 24-48V DC High Range (HI): 125-250V AC/DC Power Output: Provides power to the relay and dry contact input connections Internal Fuse: 4A/250V for protection Self-Testing: Built-in self-testing capabilities to monitor health and initiate shutdown in case of critical failures LED Indicators: Visual indicators for power status and fault conditions How Does the UR-RHH Work? Power Input: The module receives power from the external power source. Voltage Regulation: The module regulates the input voltage to provide stable output voltages to the relay and its components. Power Distribution: The module distributes power to the relay's internal circuitry and external devices connected to the dry contact inputs. Self-Testing: The module periodically performs self-tests to ensure proper operation. Fault Detection and Response: In case of a fault, the module can shut down the power supply to protect the connected devices. Benefits of Using the UR-RHH Reliability: Ensures consistent and reliable power delivery. Safety: Built-in safety features protect the device and connected equipment. Flexibility: Can be used with different voltage ranges. Easy Installation: Simple plug-and-play installation. Remote Monitoring: Can be monitored remotely for health and status. Conclusion The GE UR-RHH power supply module is a vital component of the Universal Relays series, offering reliable power delivery and advanced self-diagnostic capabilities. By understanding its features and benefits, you can effectively integrate it into your automation systems. GE IC695PBM300 GE UR RHH GE IC200CHS002 GE UR 9EH GE IC200PWR001 GE UR 8NH GE IC200ALG326 GE UR 8LH GE IC200ALG260 GE UR 6UH GE IC200MDL650 GE UR 6CH GE IC200MDL750 GE UR 6TH GE IC200MDL750 GE IS420UCSBS1A GE IC693MDL240 GE IS200VTURH28AC GE IC693MDL940 GE IS215VCMIH2CC GE IS200EMIOH1AFB GE IS200VVIBH1CAC GE IS210HSLAH1ADE GE DS200SIOBH1ABA GE IS215WEPAH2BDA GE IS200BPVCG1BR1 GE IS200VAOCH1BBA GE IS215WEPAH2BA GE IS200VTURH1BAC GE IS210BPPBH2BMD GE IS215UCVEH2A GE IS200AEPCH1ABCFA GE IS200VSVOH1BED GE IS200TBCIS2C GE IS200VCRCH1BBC GE IS220PDOAH1A GE IS200VTCCH1CBD GE IS220PAICH2A GE IS200VRTDH1DAB GE IS220PRTDH1B GE VMIVME7452 VMIVM GE IS420ESWBH3A

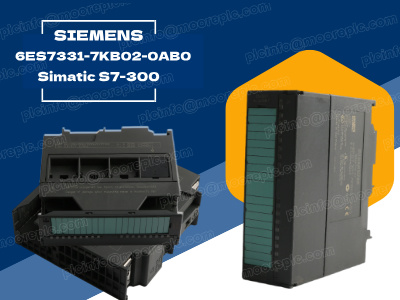

Overview of the SIEMENS 6ES7331-7KB02-0AB0 The SIEMENS 6ES7331-7KB02-0AB0 Analog Input Module, part of the SIMATIC S7-300 series, is a robust and versatile component for industrial automation systems. Designed for reliable performance, it features two analog inputs, high-resolution options, and the capability to handle various measurement types, including voltage, current, thermocouple, and resistance. With optical isolation and diagnostic capabilities, this module ensures precise and secure operations across diverse applications. Technical Specifications The SIEMENS 6ES7331-7KB02-0AB0 module operates efficiently with a 24 V DC load voltage and features reverse polarity protection. It consumes minimal current, drawing a maximum of 80 mA from the load voltage and 50 mA from the backplane bus, with a typical power loss of just 1.3 W. The module supports two analog inputs, including one input for resistance measurement, with a destruction limit for permissible input voltage up to 20 V continuously and 75 V for short durations. Additionally, it can handle input currents of up to 40 mA without damage, ensuring durability and reliability even under challenging conditions. Performance Features One of the standout features of the 6ES7331-7KB02-0AB0 is its ability to parameterize characteristic linearization for resistance thermometers, such as Pt100 and Ni100, covering both standard and climatic ranges. This flexibility ensures accurate temperature measurements across diverse industrial environments. The module provides robust interference suppression for common industrial frequencies (400 Hz, 60 Hz, 50 Hz, and 10 Hz) and supports a shielded cable length of up to 200 meters, or 50 meters for thermocouples and 80 mV inputs. These capabilities make it suitable for installations requiring long cable runs without compromising signal quality. Analog Value Creation and Resolution The measurement principle employed by the SIEMENS 6ES7331-7KB02-0AB0 module is integrating, ensuring precise analog value creation. The resolution ranges from 9 to 14 bits (including the sign for bipolar measurements), depending on the configuration. Its integration time is parameterizable, offering options of 2.5 ms, 16.67 ms, 20 ms, or 100 ms to meet specific application needs. The basic conversion times range from 3 ms to 102 ms, providing a balance between speed and accuracy in data acquisition. Diagnostic and Interrupt Features Equipped with interrupt and diagnostic capabilities, the 6ES7331-7KB02-0AB0 module enhances system reliability. It can quickly identify and report issues, reducing downtime and improving overall operational efficiency. The optical isolation feature further ensures the safety and longevity of the connected equipment by protecting it from electrical disturbances. Applications in Industrial Automation This analog input module is an ideal choice for applications that require precise data collection and control. Industries such as manufacturing, chemical proces...

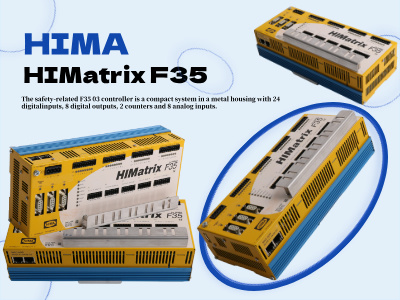

Introduction to the HIMatrix F35 Controller The HIMA HIMatrix F35 is a safety-related controller designed for high-performance industrial applications. Housed in a durable metal enclosure, this compact system features a wide range of input and output options, including 24 digital inputs, 8 digital outputs, 2 counters, and 8 analog inputs. The F35 is available in several model variants, supporting both SILworX and ELOP II Factory programming environments, making it adaptable to various industrial needs. Certified for safety-related applications up to SIL 3 by TÜV, the F35 controller complies with global standards, including IEC 61508, IEC 61511, and EN ISO 13849-1. It is also suitable for Ex-zone 2 environments, ensuring safe and reliable operations in hazardous locations. Key Features and Input Capabilities One of the standout features of the HIMatrix F35 is its 24 digital inputs, each equipped with an LED indicator to signal the state of the input (HIGH or LOW). The controller captures input signals as analog measurements and converts them into a range of INT values (0...3000, corresponding to 0...30 V). Configurable thresholds allow the system to generate BOOL values, ensuring precise monitoring and control. The default threshold settings include: Low level: < 7 V High level: > 13 V This level of configurability makes the F35 highly versatile for various industrial processes, where signal accuracy and reliability are critical. Counter Functionality and Configurability The F35 controller includes two independent counters, which can be configured for either 5 V or 24 V operation. This flexibility is achieved through the Counter[0x].5/24VMode system parameter, allowing users to customize the voltage level based on their specific application requirements. Each counter supports the following operational modes: Counter Function 1: Depends on the count direction input signal. Counter Function 2: Operates independently of the count direction input signal. Decoder Operation: Enables the use of a 3-bit Gray code input with an attached absolute rotary transducer. Additionally, the counters include inputs A (counter input), B (count direction input), and Z (zero track for reset), further enhancing their versatility. Applications in Hazardous Environments The F35 is designed to operate safely in Ex-zone 2 environments, making it an excellent choice for industries such as oil and gas, petrochemicals, and manufacturing. Its robust construction and adherence to safety standards provide users with confidence in its ability to perform under hazardous conditions. Conclusion The HIMA HIMatrix F35 Safety-Related Controller is a compact, versatile, and highly reliable solution for safety-critical industrial applications. With its advanced input/output capabilities, flexible counter functionality, and adherence to global safety standards, the F35 is an ideal choice for industries requiring robust and safe control systems. Its ability to operate in hazardous env...

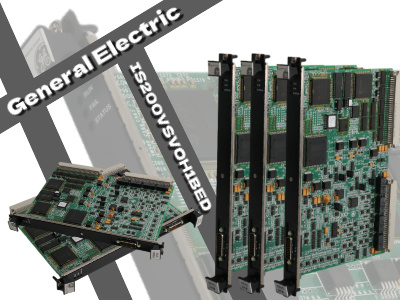

Introduction to the Mark VI System The General Electric Mark VI system is part of GE's renowned Speedtronic series, designed for the advanced management of gas and steam turbines. This series has been at the forefront of turbine control since the 1960s, beginning with the Mark I system and evolving through decades of innovation to include the Mark VI and Mark VIe models. The Mark VI system combines Ethernet communication capabilities, a PC-based operator interface, and integrated hardware/software specifically developed for turbine control. These features make it a reliable solution for industries requiring high performance and precision in turbine operations. Overview of the IS200VSVOH1BED Servo Control Board The IS200VSVOH1BED is a Servo Control Board developed for the Mark VI system. This critical component drives fuel and steam valves through its control of four electro-hydraulic servo valves. Additionally, it provides essential functions such as pulse rate flow inputs, LVDT (Linear Variable Differential Transformer) excitation, and position feedback. Designed to operate seamlessly in both Triple Redundant and Simplex systems, the IS200VSVOH1B ensures flexible and reliable turbine control. Its robust design and wide application range make it indispensable for efficient turbine management. Key Features and Components The IS200VSVOH1BED is equipped with a range of components designed to enhance its functionality and reliability: Front Panel with LED Indicators: The board features a single-slot front panel that includes: A cable connector (J5) Three LED indicators: RUN Light (Green): Indicates the board is operating normally. FAIL Light (Red): Signals a failure in the system. STATUS Light (Orange): Illuminates during an alarm condition, providing clear visual feedback for troubleshooting. Connector Configuration: The board includes six connectors for efficient communication and integration: Two backplanes (P1/P2) Four additional connectors (P3 through P6) designed with conductive traces. Integrated Circuitry: The IS200VSVOH1BED features over 70 integrated circuits, resistors, capacitors, and TP test points to support its complex operations. Inductor beads (L1-L10) and four relays (K1 through K4) enhance its stability and performance. Each relay includes a printed diagram on Applications of the IS200VSVOH1BED The IS200VSVOH1BED plays a vital role in ensuring efficient turbine control across various industrial applications. Its ability to control electro-hydraulic servo valves and provide precise feedback enables industries to maintain consistent fuel and steam flow, optimizing energy production. Its compatibility with both Triple Redundant and Simplex systems makes it suitable for a range of setups, from highly critical industrial operations to simpler turbine management systems. Maintenance and Troubleshooting The IS200VSVOH1BED is designed for ease of maintenance and quick troubleshooting. The LED indicators on the front panel provide instant s...

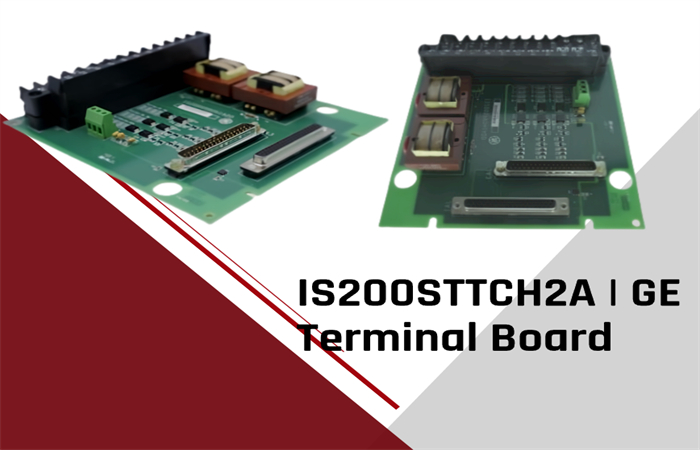

What is the GE IS200STTCH2A Terminal Board? The GE IS200STTCH2A is a versatile and efficient terminal board designed for industrial automation systems. Manufactured by General Electric (GE), this compact component is essential for connecting and managing electrical circuits in various control systems. Its robust design and precision engineering ensure reliability and optimal performance in demanding environments. Dimensions and Weight of the IS200STTCH2A Terminal Board The IS200STTCH2A terminal board is thoughtfully engineered to fit seamlessly into various setups. Its dimensions are: Height: 12.7 cm Width: 12.7 cm Depth: 13.2 cm Weight: 0.4 kg These compact dimensions and lightweight design make the terminal board easy to handle and integrate into tight spaces without compromising functionality. Key Features of the IS200STTCH2A This terminal board comes equipped with features that enhance its efficiency and usability: Durable Construction: Built to withstand challenging industrial environments. High Compatibility: Integrates seamlessly with other components in GE control systems. Efficient Connectivity: Offers reliable and precise electrical connections for optimal performance. Compact Design: Saves space without compromising on performance. Applications of the IS200STTCH2A Terminal Board The IS200STTCH2A is widely used across industries due to its versatility and reliability. Typical applications include: Power Generation: Managing connections in turbines and generators. Industrial Automation: Enhancing the efficiency of control systems in factories. Process Industries: Supporting operations in oil, gas, and chemical plants. Renewable Energy Systems: Optimizing performance in solar and wind energy setups. Why Choose the GE IS200STTCH2A Terminal Board? Selecting the IS200STTCH2A ensures you invest in a product that combines quality, performance, and reliability. GE's commitment to innovation guarantees that this terminal board meets the demands of modern industrial systems. Its compact size, durability, and excellent compatibility make it a preferred choice for engineers and technicians. Conclusion The GE IS200STTCH2A terminal board is a testament to precision engineering and industrial innovation. Its compact design, reliable performance, and broad range of applications make it an indispensable component in automation and control systems. Whether you're upgrading existing equipment or designing a new system, the IS200STTCH2A offers a robust and efficient solution to meet your needs.

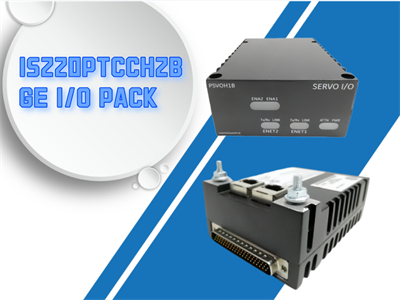

What is the IS220PTCCH2B GE I/O Pack? The IS220PTCCH2B is an advanced I/O Pack designed by General Electric (GE) to enhance industrial automation systems. This unit plays a critical role in ensuring efficient and reliable communication between control systems and field devices, making it an essential component in modern industrial environments. Dimensions of the IS220PTCCH2B One of the standout features of the IS220PTCCH2B is its compact design. The dimensions of this I/O pack are: Width: 12.7 cm Height: 12.7 cm Depth: 13.2 cm This space-saving design ensures the device can fit seamlessly into control panels without compromising performance. Weight Considerations The IS220PTCCH2B weighs approximately 0.4kg, making it lightweight and easy to handle during installation and maintenance. Its reduced weight also aids in minimizing load concerns for control panels. Key Features and Benefits Compact Design: Ideal for small spaces. Lightweight Build: Simplifies installation and transport. Reliable Communication: Ensures seamless data exchange between systems. Durability: Built to withstand demanding industrial conditions. Applications of the IS220PTCCH2B This GE I/O Pack is widely used in various industries, including: Manufacturing: For automated machinery control. Energy Production: Ensures efficient turbine monitoring. Oil and Gas: Supports reliable pipeline and equipment management. Conclusion The IS220PTCCH2B GE I/O Pack combines compact dimensions, lightweight design, and robust functionality, making it a vital tool for industrial automation. Whether you're upgrading an existing system or setting up a new one, this device provides a dependable solution for optimizing operational efficiency.

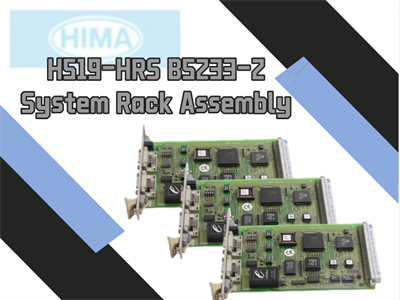

Key Features of the HIMA H519-HRS B5233-2 System The HIMA H519-HRS B5233-2 is a robust and highly efficient system rack assembly designed to meet the demands of modern industrial automation. It is engineered for seamless integration and delivers exceptional performance through its cutting-edge features. Input and Output Capabilities One of the standout features of the HIMA H519-HRS B5233-2 system is its extensive I/O capabilities. The system supports: 16 Digital Inputs: For precise monitoring and control of digital signals. 16 Digital Outputs: To drive various actuators and devices efficiently. 8 Analog Inputs: For accurate data acquisition from sensors and instruments. 4 Analog Outputs: To manage variable signal outputs for smooth operation. This versatile I/O configuration makes the HIMA system ideal for a wide range of industrial applications. Advanced Communication Options Connectivity is key in today’s industrial setups, and the HIMA H519-HRS B5233-2 system excels with multiple communication interfaces: Ethernet: Ensures high-speed data transfer and integration with industrial networks. USB: Simplifies connectivity with external devices for quick data exchange. RS-232: Provides a reliable option for legacy systems and serial communication. These communication options enhance interoperability and ensure the system is future-ready. Compact and Lightweight Design The HIMA H519-HRS B5233-2 system is designed with space efficiency and portability in mind. Its compact dimensions of 100 x 100 x 50 mm and lightweight construction, weighing just 0.5 kg, make it easy to install and integrate even in constrained spaces. Applications in Industrial Automation The HIMA H519-HRS B5233-2 system is suitable for a variety of industrial environments, including: Process control and monitoring Energy management systems Factory automation and robotics Safety-critical operations Its reliable performance and adaptability make it an indispensable tool for optimizing industrial processes. Conclusion The HIMA H519-HRS B5233-2 system rack assembly is a state-of-the-art solution for industrial automation needs. With its robust I/O capabilities, advanced communication options, and compact design, it provides unparalleled efficiency and versatility. Whether you are upgrading an existing setup or implementing a new automation system, the HIMA H519-HRS B5233-2 is a smart choice to enhance performance and reliability.
