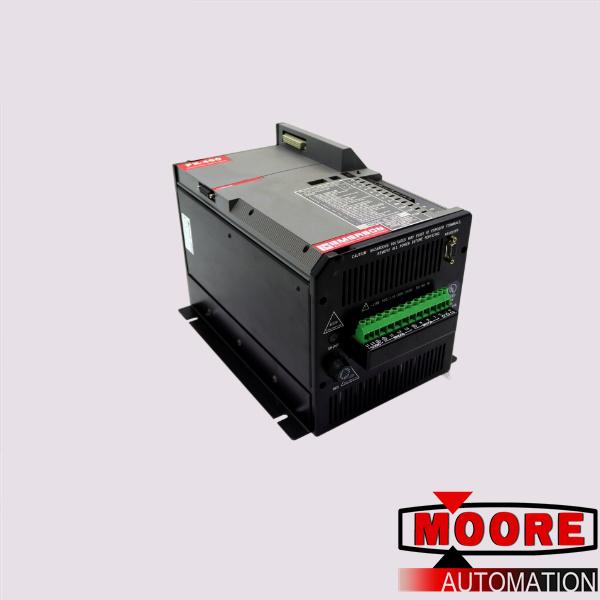

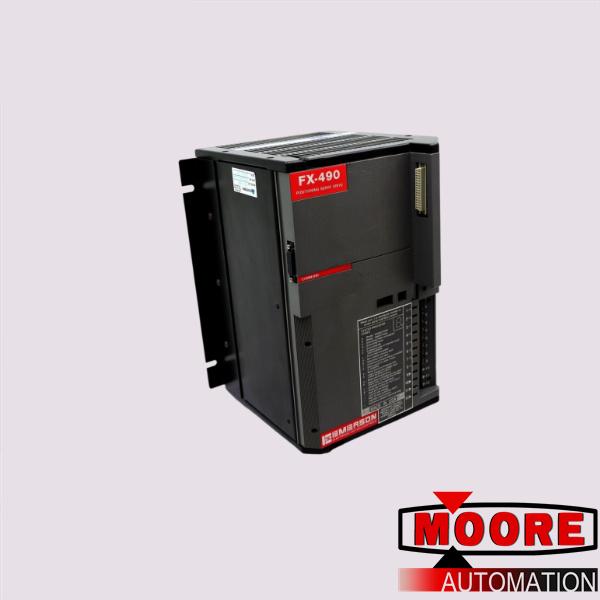

FX-490 Emerson brushless positioning servo drive

Brand/ Manufacturer:
EMERSON
Dimensions:
24cm*17cm*6.5cm
Weight:
0.68kg
Country of Origin: :
United States
Description:
Servo Drive

Inquiry now

Mfr. Part Number:	FX-490

Manufacturer:	Emerson

Description:	The FX-490 is a Emerson FX-490 Servo Drive Motion Positioning Con... that is manufactured by Control Techniques. IN STOCK READY TO SHIP

Full Description:	Emerson Motion Control FX-490 Brushless Positioning Servo Drive 8 Input and 4 Output Lines;Linear or Modified Sine Motion Profiles

plcsale@mooreplc.com + 86 18030235313 dddemi33 2851195473

Production Description

SERVO DRIVE
VOLTAGE INPUT/OUTPUT: 240 VAC
CURRENT INPUT: 9.6 AMP
CURRENT OUTPUT: 14.0 AMP
FREQUENCY INPUT: 60 HZ
FREQUENCY OUTPUT: 16 KHZ
3 PHASE INPUT AND OUTPUT

Configuration:
• Suggested Line Amps: 20
• RMS Motor Torque: 90 lb-in (10.20 Nm)
• Peak Motor Torque: 180 lb-in (20.30 Nm)
• Maximum Motor Speed: 3000 RPM

Features:
8 Input and 4 Output Lines
Linear or Modified Sine Motion Profiles
LED Display for Operating and Diagnostic Status
Auxiliary Logic Supply Provision

The Emerson Motion Control FX Series Brushless Positioning Servo Drive Systems are designed to provide trouble-free solutions for a wide variety of industrial automation applications. Each FX Positioning Servo Drive System integrates the position control, I/O, feedback, servo amplifier and power supply in one housing.The drive design allows the unit to operate on a wide range of voltage sources without needing expensive isolation transformers. Models in the FX Drive Series provide up to 1000 lb-in of continuous torque. FX Amplifiers providing 8 to 120 lb-in continuous torque are UL Listed, Canadian UL Listed and CE Certified. These amplifiers are also designed to meet IEC801 specifications for noise immunity.
