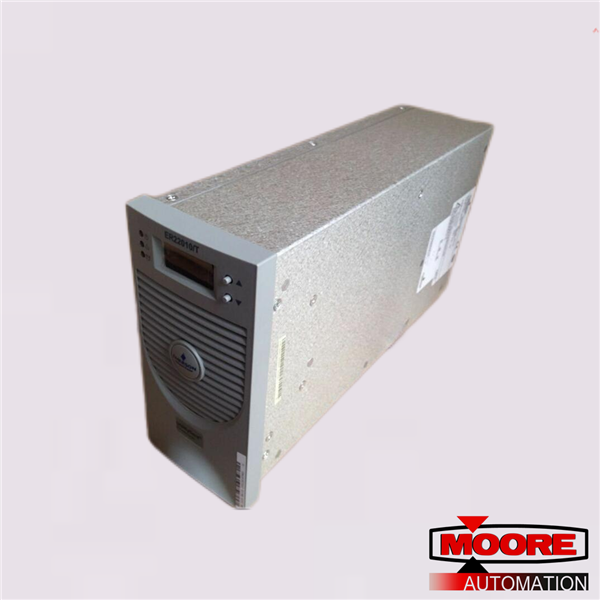

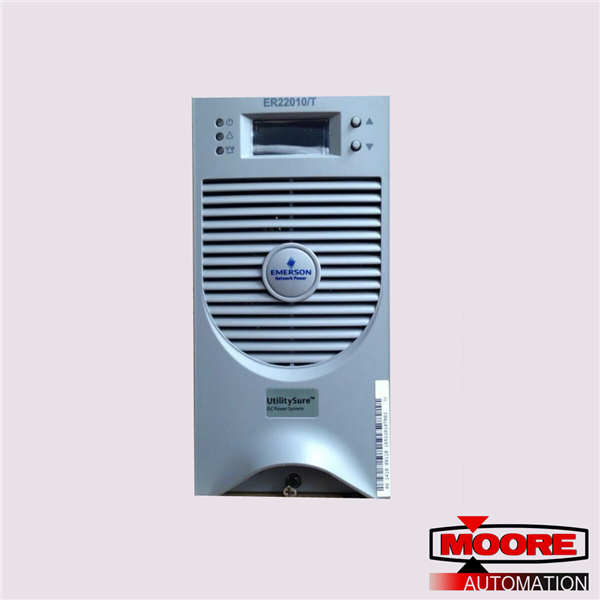

ER22010/T | Emerson Rectifier Module

in stock#

Brand/ Manufacturer:
EMERSON
Dimensions:
13.0 cm x 1.9 cm x 19.1 cm
Weight:
0.2 kg
Country of Origin: :
USA
Description:
Emerson ER22010/T Rectifier Module

Inquiry now

Mfr. Part Number:	ER22010/T

Manufacturer:	EMERSON

Description:	Emerson ER22010/T Rectifier Module

Full Description:	Emerson ER22010/T Rectifier Module The Emerson rectifiers comprise two parts: 3-phase passive PFC and DC/DC converter circuit. Besides, there are the auxiliary power supply and the I/O detection protection circuit. The operation principle of rectifiers is shown in Figure ER22010/T

Status:	In stock

Click to get price : : plcinfo@mooreplc.com : +86 18020776786

: live:onlywnn_1 : mooreplc

Moore Automation Limited is not affiliated with or a distributor for EMERSON. The depiction, description, or sale of products featuring names, trademarks, brands, and logos is for identification and/or reference purposes only and does not indicate any affiliation with or authorization by any rights holder.

The Emerson rectifiers comprise two parts: 3-phase passive PFC and DC/DC converter circuit. Besides, there are the auxiliary power supply and the I/O detection protection circuit. The operation principle of rectifiers is shown in Figure ER22010/T
1) The 3-phase passive PFC circuit at the front-end comprises input EMI and passive PFC, which are used to rectify and filter the AC input, and to calibrate the input current, so as to ensure that the power factor of the input circuit is bigger than 0.94, meeting the related EMI and EMC standards in GB/T 17794.2.2-2003, as well as the 3-phase harmonic standard in DL/T781-2001.
2) The DC/DC converter circuit at the back end uses PWM generator to control the PFC-output DC voltage, and output DC voltage through high frequency transforming, rectification and filtering. It is used to convert the rectified voltage from the front end into the steady DC voltage output as required by the power system.
3) The auxiliary power supply is located between the input passive PFC and the DC/DC converter. It uses the DC output from the 3-phase passive PFC and powers the control circuits.
4) The input detection circuit can detect input over/under-voltage and phase failure, while DC/DC detection circuit can detect output voltage/current and heat sink temperature. All these signals are used for the control and protection of DC/DC conversion.

If you need other brands products like below, please feel free write email to plcinfo@mooreplc.com

You will get Best price and Professional service (24/7)

General
Manufacturers	EMERSON
Brand	EMERSON
Part Number/Catalog No.	ER22010/T
Status	In stock
