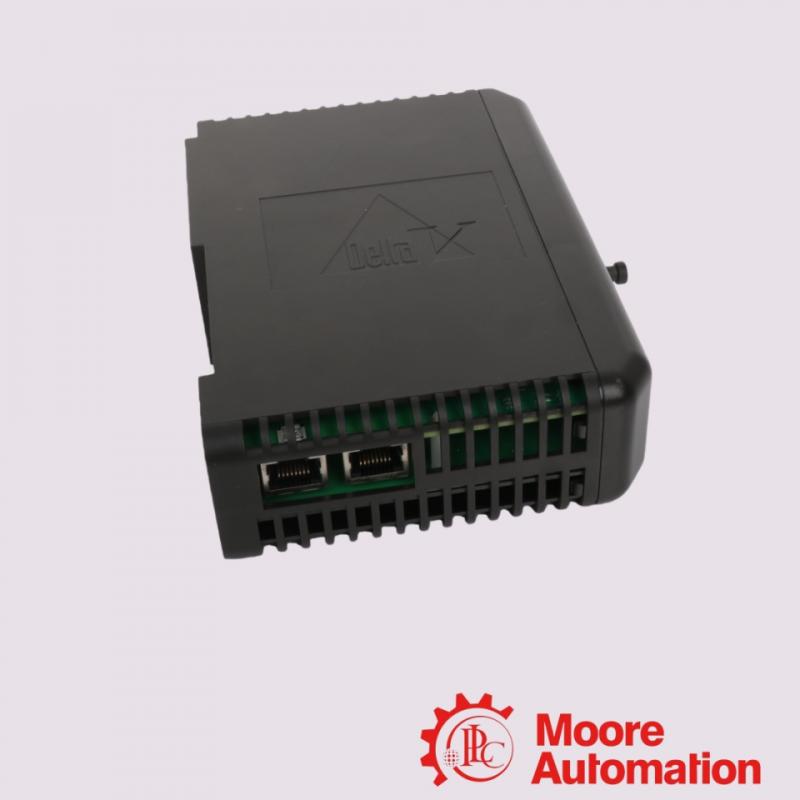

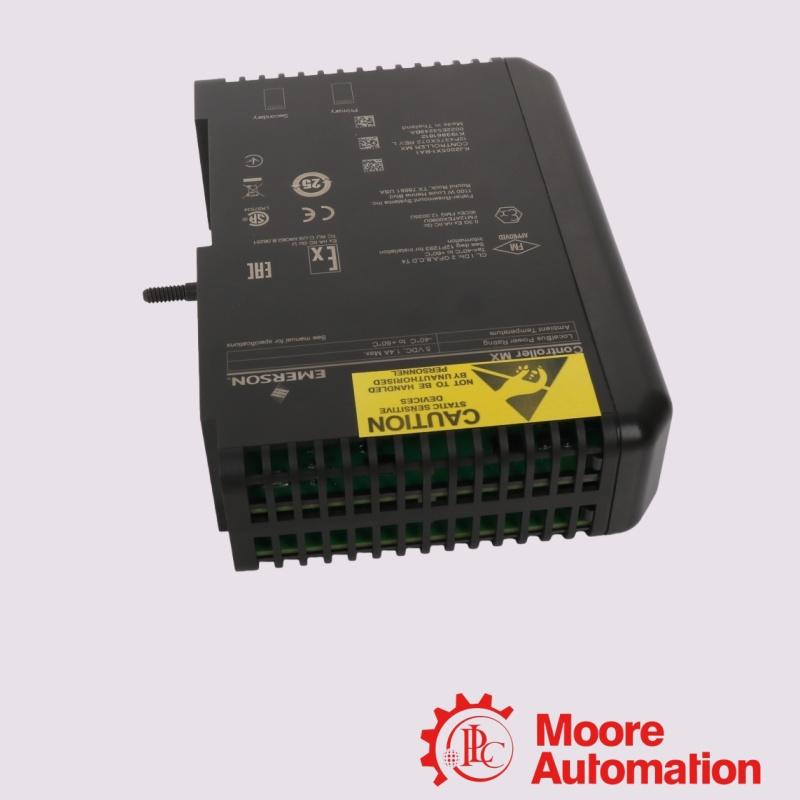

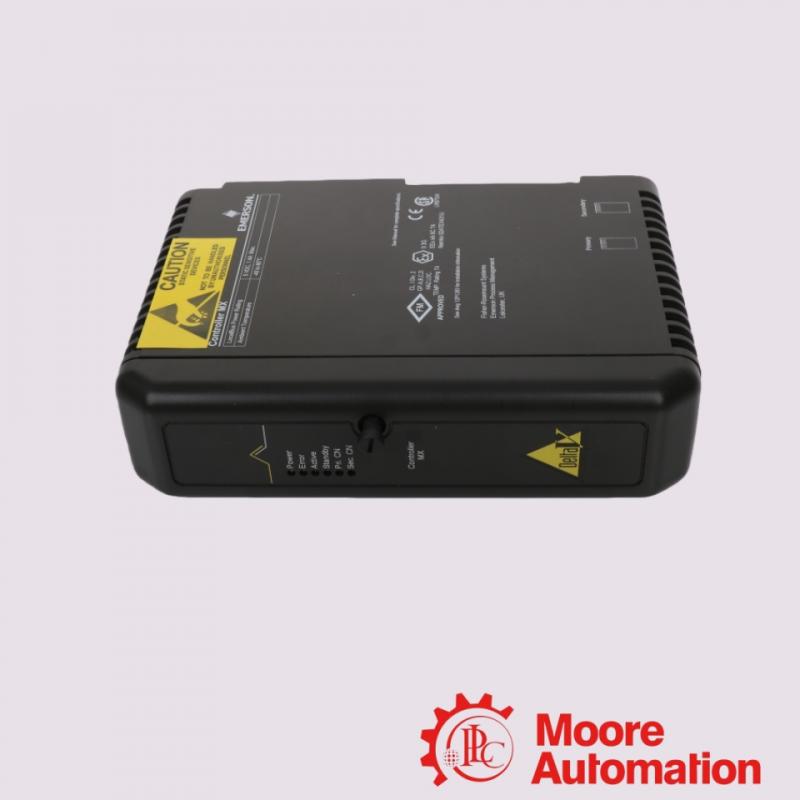

EMERSON KJ2005X1-BK1 SE3007 Controller Module

Parameter
CPU Type: High-Performance 32-bit RISC Processor
CPU Clock Speed: 600 MHz (±1%)
Internal Data Bus Width: 64-bit
Floating-Point Unit: Integrated Hardware FPU
Real-Time Operating System: Proprietary RTOS, deterministic kernel
Memory Configuration: 128 MB DRAM , 64 MB Flash (NOR Flash)
Memory Access Time: DRAM: <15 ns typical, Flash: 90 ns read cycle time
Boot Time from Power-Up: < 45 seconds to operational state
Operating Temperature Range: 0°C to +60°C
Storage Temperature Range: -40°C to +85°C (-40°F to +185°F)
Thermal Gradients: Maximum 10°C per hour
Altitude Rating: 0 to 3000 meters (0 to 9842 ft) without derating
Power Supply Requirement (Backplane): +5V DC (±5%), +3.3V DC (±5%)
Nominal Current Draw: +5V: 850 mA typical, 1100 mA max;
Typical Power Consumption: 4.5 Watts
Maximum Power Consumption: 6.8 Watts
Heat Dissipation: 23.2 BTU/hr maximum
Input Voltage Noise Tolerance: ±200 mV peak-to-peak on +5V line
Power-On Reset Threshold: +4.5V DC (±2%)

FAQ

What is  KJ2005X1-BK1 SE3007   ？
KJ2005X1-BK1 SE3007  is a Controller Module

What is a controller module?
A control module is a collection of sensors, actuators and basic control logic that acts as either a regulating device, a state-oriented device or a combination that is operated as a single device. Examples of control modules are PID controllers and block valve controllers (refer Figure 4.8)

What are the 4 types of controllers?
Abstract: Four common controllers are presented and compared: Proportional-integral (PI), Proportional-integral-differential (PID), Proportional (P), and Proportional-differential (PD).

What is the difference between module and controller?
The module is a container for the different parts of an application. The module is a container for the application controllers. Controllers always belong to a module.
