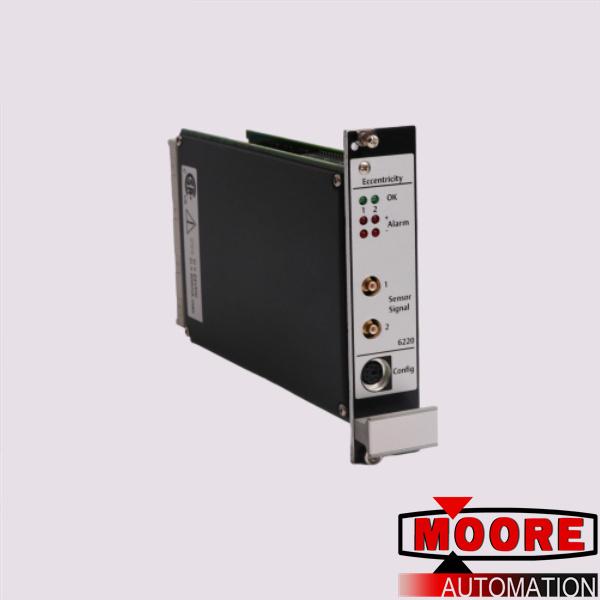

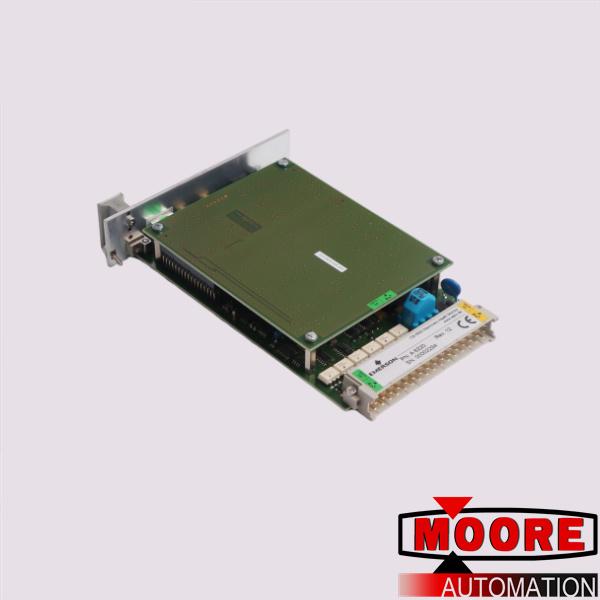

A6220 Emerson machinery health monitor

Brand/ Manufacturer:
EMERSON
Dimensions:
3.1cm*19cm*12.8cm
Weight:
0.3kg
Country of Origin: :
United States
Description:
Dual Channel Eccentric Vibration Monitoring Module

Inquiry now

Mfr. Part Number:	A6220

Manufacturer:	Emerson/epro

Description:	EMERSON A6220 9199-00009 Machinery Health Monitor The controller manages all control activities for the I/O interface channels. IN STOCK READY TO SHIP

Full Description:	Emerson Epro A6220 Machinery Health Monitor,EPRO A6220 eccentric module series linear differential transformer displacement sensor adopts if differential transformer displacement sensor as the sensing element, which is a kind of LVDT displacement sensor with high reliability.

plcsale@mooreplc.com + 86 18030235313 dddemi33 2851195473

Main technical parameters of EPRO A6220 eccentric module
1. Range :TD-2 thermal expansion sensor: 0~ 25mm, 0~35mm. 0~ 50mm
2. Excitation: 1500Hz, 10~ 20VAC
3. Linear impedance: 2500+502
4. Linearity: +1.5% of effective full range
5. Service temperature: -10~ 100°C
6. Relative humidity :≤90% non-condensation
7. Description: Dual Channel Eccentric Vibration Monitoring Module
8. Dimensions: 3.1x19x12.8cm
9. Weight: 0.3 kg

Emerson A6220 Monitoring Module Features
1. Double-channel eccentricity measurement module to monitor the eccentricity of the shaft.
2. Built-in microprocessor.
3. Extended self-check function, built-in sensor self-check function, password protection operation level.
4. Can be replaced in operation, can be used alone, redundant power input.
5. Applicable eddy current sensor PR642./.. Series preprocessor CON0X1.
6. Rs232/485 port is used for field configuration and communication, and the measured value can be read out.
7. Record and store measurements from the last start/stop.

Emerson Epro A6220
EPRO A6220 eccentric module series linear differential transformer displacement sensor adopts if differential transformer displacement sensor as the sensing element, which is a kind of LVDT displacement sensor with high reliability. The local indication has a large visual field, and the remote indication is digital display, which is clear and intuitive. The LVDT displacement sensor adopts the intermediate frequency differential transformer as the sensing element, which is a highly reliable displacement sensor. It has strong anti-interference ability, good linearity, simple structure, and is not easy to be damaged. It can be used continuously for a long time, and can be used for steam turbine.
