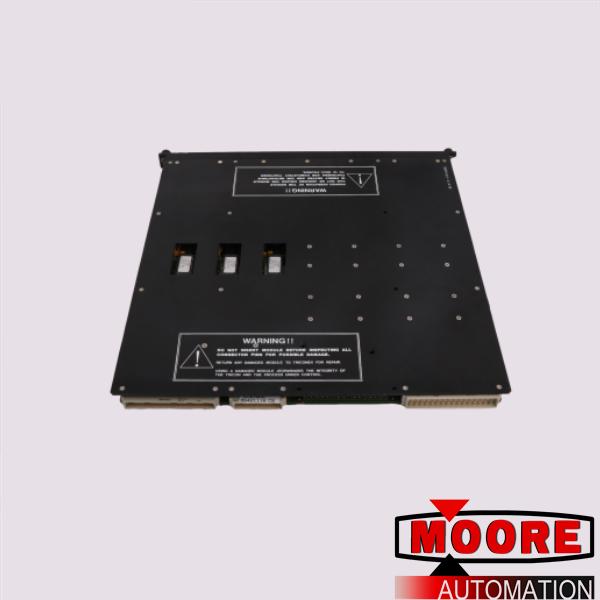

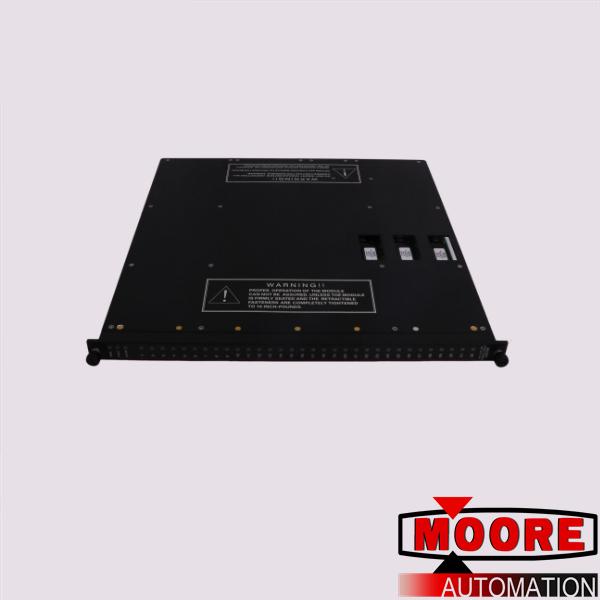

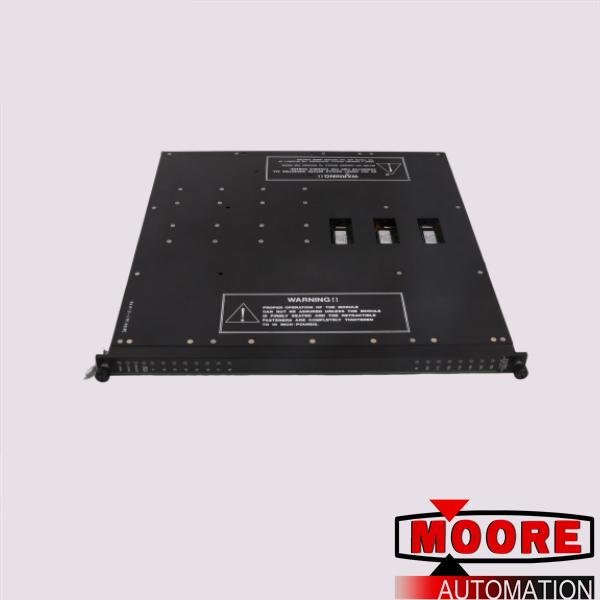

3601E | Triconex | OUTPUT MODULE


3601E
3601E 3601E 3601E

3601E | Triconex | OUTPUT MODULE

  • Brand/ Manufacturer:

    Triconex

  • Dimensions:

    49cm*45.3cm*6.8cm

  • Weight:

    3.75kg

  • Country of Origin: :

    United States

  • Description:

    OUTPUT MODULE DIGITAL
Inquiry now

Mfr. Part Number:

3601E

Manufacturer:

Triconex

Description:

TRICONEX 3601E, OUTPUT MODULE DIGITAL 115VAC 16PTS TMROPTO ISOL

IN STOCK READY TO SHIP

Full Description:

Product Parameters: Digital Output Module;Opto-Isolated, Non-commoned
OUTPUT MODULE DIGITAL 115VAC 16PTS TMROPTO ISOL

The Triconex line allows clients to optimize their choice of safety system for their specific requirements


       plcsale@mooreplc.com    + 86 18030235313      dddemi33     2851195473

Description

Model Number：  3601E
Nominal Voltage ： 115 VAC
Type：  TMR, DO
Output Signals：  16, non-commoned
Voltage Range：  80-155 VAC
Voltage Drop1：  < 3V, typical
Frequency Range：  47-63 Hz
Current Ratings, ： 2A per point
Maximum ： 12A surge/cycle
Load Leakage ： 2 mA maximum @ 60 Hz
Chassis Leakage ： 4 mA maximum @ 60 Hz
Fuses (on Field  1 per output,  Termination) ： 3A fast-acting
Point Isolation ： 1,500 VDC/ 2500 VDC2
Diagnostic ：Indicators
On or Off state： 1 per point
Module Status ：PASS, FAULT, ACTIVE
Field Alarm ： LOAD/FUSE
Color Code  ：Green
MFG: TRICONEX, Made in USA

Tricon system

A powerful, scalable design with assurance of continuous operation, the Tricon system complies with international safety standards such as IEC61508 and fulfils the requirements for applications such as Emergency Shutdown (ESD), Fire and Gas Protection (F&G), Burner Management (BMS), High Integrity Pressure Protection (HIPPS) and Turbomachinery Control (TMC). The redundant high availability architecture provides a flexible, robust, reliable and powerful solution that is ideal for clients looking to achieve environmental and safety excellence.


The Tricon system is a must for clients who need to maximize the safety and performance of their assets. If you are challenged with reducing investment and lifecycle costs, meeting new safety standards, combating tough competitive pressure in your markets as well as the welfare of your employees and the environment, then the Tricon system is designed for you.

The Triconex line allows clients to optimize their choice of safety system for their specific requirements. Our strong parts are Tricon Rack, Tricon Power Modules, Main Processor Module, Input Module, Output Module, Tricon Communication Module TCM.
