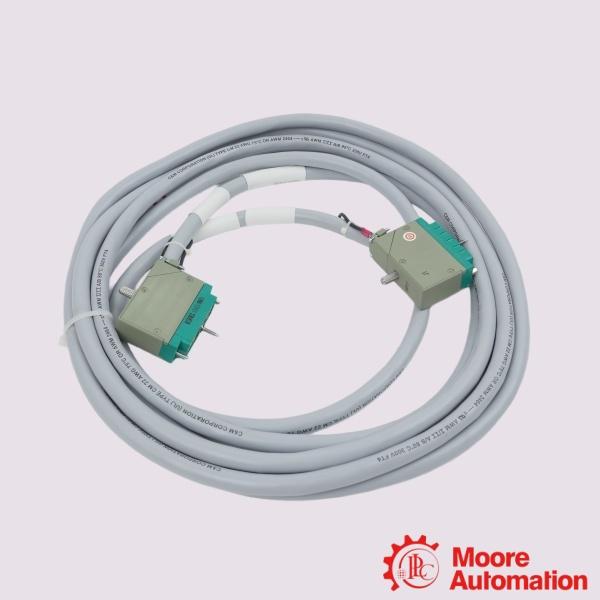

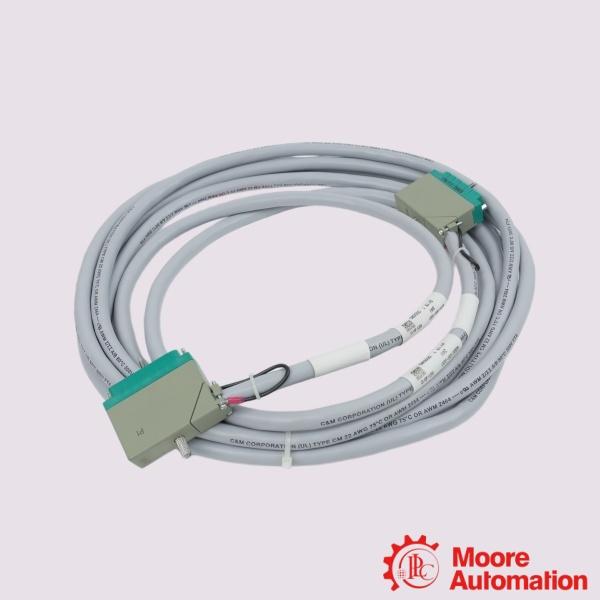

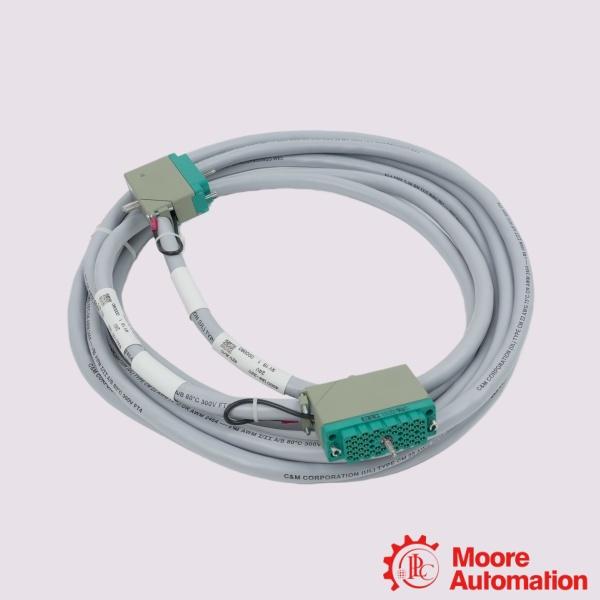

Triconex 4000188-320 Interface Cable

Description

The Triconex 4000188-320 is a communication cable for the Tricon™ safety system. It is used to connect compatible system components during installation, commissioning, routine operation, and maintenance. As a Tricon system accessory, the cable interfaces with supported communication ports and carries data between connected devices within the safety control system. The cable is manufactured for the Tricon platform and matches the electrical and mechanical characteristics required by the associated equipment. It connects compatible modules and service interfaces without requiring changes to the existing hardware configuration. This allows communication tasks, system diagnostics, and maintenance procedures to be carried out using the specified cable assembly. Used with compatible Tricon components, the 4000188-320 forms part of the communication path within the control system. It is suitable for routine replacement when required and can be installed using the existing system hardware.

Parameter

Model: 4000188-320 is an interface cable
Physical Cable Length: 20 feet (approx. 6.1 meters)
Internal Conductor Gauge: 22 AWG multi-strand tinned copper
Current Carrying Capacity: Up to 2.0 A per conductor at 60 °C
Operating Temperature: 0 °C to +60 °C (+32 °F to +140 °F)
Maximum Operating Voltage: 300 V AC/DC

Frequently asked questions

What is the 4000188-320?
The 4000188-320 is a communication cable designed for use with the Tricon™ safety system. It is used to establish connections between compatible Tricon system components during installation and maintenance.

Does the 4000188-320 require configuration?
No. The cable itself does not require software configuration. It functions as a communication accessory between compatible system components.

Is the 4000188-320 used for permanent installation?
The cable may be used during system installation, commissioning, diagnostics, and maintenance, depending on the application and connected equipment.

Application areas:
High-Integrity Pressure Protection Systems (HIPPS): Forms the ultra-high-speed signal link for overpressure transmitters tasked with mechanical piping isolation to prevent catastrophic ruptures.
Boiler Drum Level Low-Low Interlocking: Coordinates isolated safety signals from differential pressure transmitters to trip boiler feed pumps during dry-run conditions.
Toxic Chemical Storage Tank Farm Monitoring: Feeds level, temperature, and leakage block alarms from high-risk chemical storage areas into the primary safety network.
