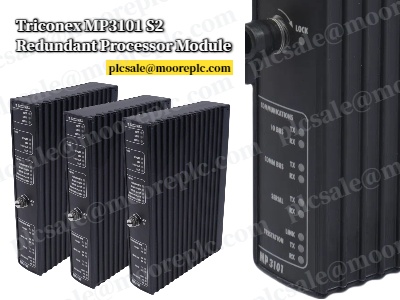

Overview of the MP3101 Processor Module The MP3101 is a high-reliability redundant processor module developed by Triconex, part of Schneider Electric’s industrial safety solutions portfolio. Designed for the Trident safety system, this module plays a crucial role in maintaining consistent and fault-tolerant operation in mission-critical environments. The Trident system is widely implemented in industries such as oil and gas, petrochemicals, power generation, and refining, where zero downtime and maximum safety assurance are required. The MP3101 module ensures uninterrupted control by offering a triple modular redundancy (TMR) architecture. Key Features and Technical Highlights The MP3101 integrates three independent processors that continuously monitor and validate each other’s outputs. If one processor detects an error in the other, it can isolate the fault without affecting the system’s overall functionality — this is the core of TMR design. Highlighted technical features include: Triple Modular Redundancy (TMR) for continuous fault tolerance Hot-replaceable design, allowing modules to be exchanged without shutting down the system High-speed processing for critical real-time control Built-in diagnostic and error-checking functions Seamless integration into Triconex Trident chassis systems The MP3101 is not only a processing unit but also acts as a coordination hub for safety functions, communication, and diagnostics in complex automation environments. Industrial Applications of MP3101 Due to its dependable performance, the MP3101 is deployed across industries that demand high-integrity safety systems. These include: Chemical processing plants – for handling volatile and hazardous materials Oil and gas extraction and refining – where real-time safety control is vital Power generation facilities – ensuring turbine, boiler, and generator protection Pharmaceutical production lines – for critical process monitoring and alarm systems In each application, the MP3101 provides a layer of protection that ensures system continuity even in the event of hardware faults, making it a cornerstone in functional safety compliance (IEC 61508, SIL 3). Integration within the Trident System The MP3101 module is purpose-built for the Trident SIL 3 safety platform. When installed in a Trident chassis, it interfaces with other modules — including I/O, communication, and power supply units — to manage complex logic functions and coordinate redundant safety loops. Its ability to synchronize across multiple Trident systems enables scalable safety architectures for distributed control systems (DCS) and emergency shutdown systems (ESD). Communication is handled via deterministic protocols, ensuring fast and reliable signal transmission in real-time operations. Reliability and Maintenance Benefits One of the most significant advantages of the MP3101 module is its built-in fault detection and diagnostics. The system automatically performs self-tests, logs anomalies, and can i...

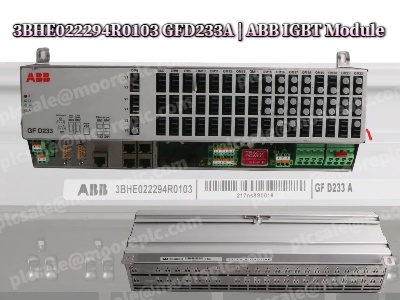

Understanding the IGBT Supply Unit (ISU) The ABB IGBT Supply Unit 3BHE022294R0103 GFD233A represents a breakthrough in power conversion technology, specifically designed for ultra-low harmonic and regenerative drive systems. This sophisticated module transforms three-phase AC voltage into stable DC voltage while maintaining exceptional efficiency. What sets it apart is its bidirectional operation capability, functioning seamlessly in both motoring and generating modes to accommodate diverse industrial applications. Advanced Features for Superior Performance Engineered with R7i/R8i and LCL filter components, the ISU delivers consistently smooth DC voltage with perfectly sinusoidal line current characteristics. Its intelligent control system achieves near-unity power factor operation while demonstrating remarkable resilience against network voltage fluctuations. The module's built-in voltage boosting capability ensures reliable performance even during line voltage dips, making it indispensable for critical industrial processes. Technical Specifications That Matter These high-performance IGBT modules 3BHE022294R0103 GFD233A operate at impressive voltage levels, with collector-emitter ratings reaching 3300V and gate-emitter tolerances of ±20V. Designed for heavy-duty applications, they handle continuous currents of 1200-1500A with peak capacity up to 3000A. The robust construction withstands junction temperatures up to 150°C while maintaining electrical isolation integrity at 6-10kV levels. Harmonic Control and Energy Efficiency ABB's Direct Torque Control (DTC) technology combined with advanced LCL line filtering achieves unprecedented harmonic suppression. This results in cleaner power delivery that meets stringent industrial standards while minimizing electrical interference. The system's regenerative capabilities contribute to significant energy savings, especially in applications with frequent braking or load variations. Industrial Applications and Reliability These IGBT modules 3BHE022294R0103 GFD233A excel in demanding environments including mining operations, marine propulsion systems, and large-scale manufacturing facilities. Their rugged design ensures long service life even under continuous heavy loads, while the sophisticated thermal management system prevents overheating during peak performance periods. Conclusion ABB's IGBT modules 3BHE022294R0103 GFD233A with ISU technology represent the pinnacle of power conversion solutions, combining precision control with robust performance. Their ability to maintain ultra-low harmonic distortion while adapting to various operating conditions makes them ideal for modern industrial applications where power quality and energy efficiency are paramount. As industries continue to demand smarter power solutions, these modules stand ready to meet evolving challenges with their proven reliability and advanced features.

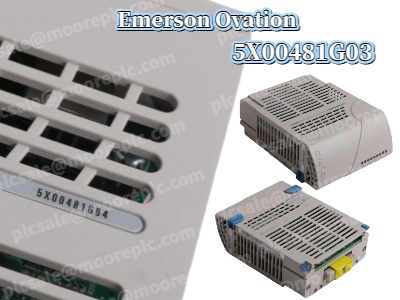

Introduction to the Ovation 5X00481G03 Controller The Emerson Ovation 5X00481G03 stands as a cornerstone in modern industrial automation, offering robust performance for critical control applications. This remote I/O controller module combines cutting-edge processing power with flexible expansion capabilities, making it ideal for power generation, oil & gas, and water treatment facilities. Engineers favor this module for its reliable 32-bit RISC architecture that delivers real-time processing without compromising system stability. Unlike conventional PLCs, the 5X00481G03 integrates seamlessly into Emerson's Ovation distributed control system (DCS), providing plant operators with unparalleled control precision. Unmatched Processing Power and Memory At the heart of the 5X00481G03 lies a high-performance 32-bit RISC processor that executes complex control algorithms with remarkable efficiency. The module's substantial 256MB RAM ensures smooth multitasking across multiple control loops, while the 64MB flash memory offers ample space for firmware and application storage. This memory configuration supports: Rapid execution of PID control loops Simultaneous handling of analog and digital signals Storage of historical data logs Firmware updates without system downtime The generous memory allocation proves particularly valuable in applications requiring data-intensive operations like predictive maintenance analytics or batch process tracking. Exceptional I/O Handling Capabilities The 5X00481G03 redefines flexibility in industrial automation with its impressive I/O capacity. The base unit supports 128 I/O points, with expansion potential through Emerson's comprehensive Ovation I/O module ecosystem. This scalability allows plants to customize their control architecture based on specific process requirements. Key I/O features include: Hot-swappable module replacement Automatic configuration recognition Built-in signal conditioning Galvanic isolation for noise immunity Field technicians appreciate the module's ability to mix different signal types - from 4-20mA analog inputs to high-speed digital counters - within the same rack space. The universal backplane design eliminates the need for separate signal converters, reducing installation complexity and potential failure points. Advanced Communication Architecture Modern industrial networks demand robust communication capabilities, and the 5X00481G03 delivers with its versatile port configuration. The dual Ethernet ports (10/100 Mbps) operate in redundant mode, ensuring uninterrupted data flow even during network disruptions. The integrated RS-485 port provides legacy system compatibility using Modbus RTU protocol. Communication highlights: <1ms cycle times for critical control loops OPC UA compatibility for enterprise connectivity Secure data transmission with AES-128 encryption Simultaneous protocol support for hybrid systems This communication flexibility enables seamless integration with third-party...

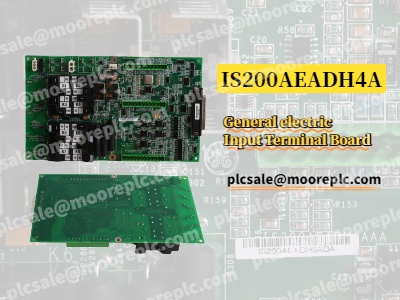

The IS200AEADH4A is an advanced input terminal board designed by General Electric (GE) for industrial drive control systems. This component plays a crucial role in connecting sensors and actuators directly to the control system, eliminating the need for additional instrumentation. By simplifying the signal transmission process, the IS200AEADH4A enhances system efficiency and reduces potential points of failure. Engineered for high-performance applications, this terminal board is commonly used in turbine control systems, where precision and reliability are critical. Its robust design ensures stable operation even in demanding industrial environments. Key Features of the IS200AEADH4A The IS200AEADH4A offers several notable features that make it a preferred choice for industrial automation: Direct Sensor & Actuator Connection – Eliminates the need for intermediate devices, reducing signal interference and improving response times. High Reliability – Built with industrial-grade components to ensure long-term durability. Simplified Installation – Streamlines system setup by reducing wiring complexity. Compatibility – Designed to work seamlessly with GE’s drive control systems. Enhanced Signal Integrity – Minimizes noise and ensures accurate data transmission. These features make the IS200AEADH4A an essential component in modern industrial control systems. Applications of the IS200AEADH4A The IS200AEADH4A is widely used in industries that require precise control and monitoring, including: Power Generation – Used in turbine control systems to manage speed, temperature, and pressure sensors. Oil & Gas – Helps monitor pipeline conditions and actuator performance. Manufacturing Automation – Integrates with robotic systems and conveyor controls. Water Treatment Plants – Ensures accurate sensor readings for flow and chemical dosing controls. By providing a direct interface between sensors and control units, this terminal board enhances operational efficiency across various in

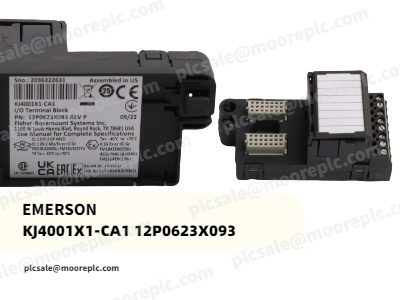

Unmatched Performance in Harsh Conditions The Emerson KJ4001X1-CA1 12P0623X093 I/O terminal block sets a new standard for reliability in industrial automation. Designed to operate flawlessly in temperatures ranging from 0°C to 60°C, this rugged component thrives where other terminal blocks fail. Its exceptional shock resistance withstands 10g impacts for 11 milliseconds, making it ideal for vibration-heavy environments like oil rigs, mining operations, and heavy manufacturing facilities. The terminal block's compliance with ISA-S71.04-1985 Airborne Contaminants Class G3 certification ensures consistent performance even in dusty or chemically aggressive atmospheres. Precision Power Management Capabilities What truly distinguishes this terminal block is its sophisticated power handling architecture. The unit efficiently manages three separate power circuits: a 24V DC input voltage, a LocalBus power rating of 12V DC at 150 mA, and a field circuit rating of 24V DC at 300 mA. This multi-tiered power distribution system prevents voltage drops and maintains signal integrity across complex automation networks. The bussed field power rating of 24V DC at 32 mA provides just enough juice for sensor networks without risking overloads, demonstrating Emerson's thoughtful engineering approach to industrial power requirements. Built for Reliability in Humid Environments In industrial settings where moisture poses constant challenges, the KJ4001X1-CA1 stands resilient. Its 5% to 95% non-condensing humidity tolerance means it won't falter in steamy food processing plants or coastal manufacturing facilities. The IP20 rating provides basic protection against accidental contact, while the carefully selected materials resist corrosion from both humidity and airborne contaminants. These features combine to deliver exceptional mean time between failures (MTBF), reducing maintenance headaches and unexpected downtime in critical operations. Seamless Integration in Modern Automation Systems This terminal block isn't just durable—it's designed for effortless integration. The clearly labeled terminals and standardized dimensions make installation straightforward, while the robust construction ensures reliable connections over years of service. Field technicians appreciate how the design accommodates both thick industrial cables and delicate sensor wiring, providing versatility without compromising performance. The unit's stable power delivery protects sensitive connected equipment from damaging voltage fluctuations, a common pain point in industrial control panels. The Ideal Solution for Industrial I/O Challenges The Emerson KJ4001X1-CA1 addresses the core challenges of industrial I/O management: maintaining signal integrity in electrically noisy environments, surviving physical punishment, and delivering consistent performance year after year. Its specifications reveal careful attention to real-world industrial requirements rather than just theoretical benchmarks. From the ...

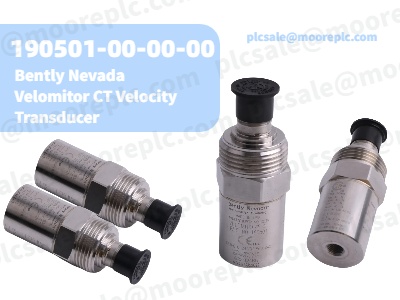

Introduction to the 190501-00-00-00 Velomitor CT Transducer The Velomitor CT Velocity Transducer is a specialized low-frequency vibration sensor designed for monitoring cooling tower fans and air-cooled heat exchangers operating at 90 RPM or higher (typically 100–300 RPM). Unlike standard velocity sensors, this model accurately captures vibrations at extremely low rotational speeds, making it ideal for detecting early mechanical faults in slow-moving industrial fan systems. 190501-00-00-00 Key Features and Applications Engineered for reliability, the Velomitor CT measures casing vibration velocity while also detecting frequencies from fan motors and speed reducers. Its piezoelectric sensing technology ensures precise readings even in challenging environments. Common applications include: Cooling tower fan monitoring HVAC system vibration analysis Predictive maintenance for slow-speed rotating equipment 190501-00-00-00 Proper Installation Guidelines For optimal performance, the transducer must be mounted correctly on the bearing housing or machine casing. Improper installation can lead to: Reduced amplitude and frequency response False vibration signals Always follow the manufacturer’s installation manuals and application notes to avoid measurement inaccuracies. 190501-00-00-00 Engineering Support and Custom Solutions Bently Nevada offers custom engineering services to assist with: Optimal sensor placement Vibration measurement analysis Troubleshooting installation issues These services ensure the transducer delivers accurate, reliable data for preventive maintenance programs. 190501-00-00-00 Compliance and Versatility While the Velomitor CT does not include certain standard approvals (such as MIL-C-5015 connections), its rugged design makes it suitable for industrial environments. Its low-frequency detection capability sets it apart from conventional vibration sensors. Conclusion The Velomitor CT Velocity Transducer is an essential tool for monitoring low-speed fan systems, helping prevent unexpected failures through early fault detection. Proper installation and expert support from Bently Nevada ensure maximum accuracy and long-term reliability in industrial applications. For specialized vibration monitoring solutions, this transducer remains a top choice for engineers and maintenance teams.

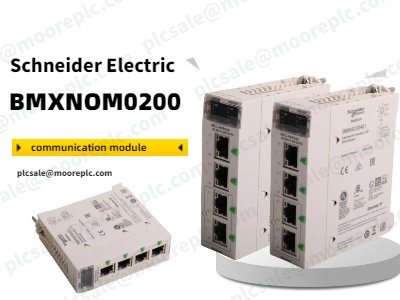

Introduction to the BMXNOM0200 Module The Schneider Electric BMXNOM0200 is a high-performance serial link communication module designed for the Modicon X80 range, compatible with Modicon M580 and M340 PLCs. Featuring dual RS-485/232 ports, it supports Modbus and character mode, making it ideal for seamless industrial automation integration. With a compact design and low power consumption (80mA at 24V DC), this module ensures reliable connectivity in medium to large-scale industrial applications. Key Features & Technical Specifications Dual Communication Ports: RS232 (RJ45, 115.2kbps) & RS485 (RJ45, 57.6kbps) Power Efficiency: Operates on 24V DC internal power supply Robust Build: IP20-rated enclosure for industrial environments Lightweight & Compact: Weighs only 0.23kg Certifications: CE, UL 508, EN 61131-2, EN 61000-6-4/6-2, EN 61010-2-201 compliant Compatibility & Integration The BMXNOM0200 seamlessly integrates with Modicon M340 PLCs, ensuring smooth data exchange in automation systems. As part of the Modicon X80 platform, it helps reduce training and maintenance costs by using standardized spare parts and unified configurations across different Programmable Automation Controllers (PACs). Industrial Applications This module is perfect for: Process automation (chemical, water treatment) Manufacturing & assembly lines Energy management systems Its high-speed communication and Modbus support make it ideal for real-time monitoring and control. Benefits of Choosing BMXNOM0200 Cost-effective: Reduces downtime with easy maintenance Future-proof: Supports Modbus & character mode for flexible deployments Reliable performance: Built for harsh industrial environments Conclusion The Schneider Electric BMXNOM0200 is a versatile, efficient, and certified communication module that enhances automation systems with seamless connectivity and low power consumption. Whether for process control or manufacturing, this module ensures reliable performance while cutting operational costs.

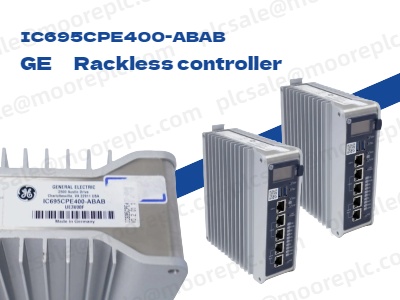

Next-Gen Processing for Demanding Applications The IC695CPE400-ABAB rackless controller represents Emerson's cutting-edge solution for industrial automation, combining robust processing power with flexible installation options. This DIN rail-mountable unit features a powerful 1.2 GHz AMD G Series quad-core processor that delivers exceptional performance for complex control tasks. Unlike traditional rack-mounted systems, its compact design saves valuable panel space while maintaining full functionality. Comprehensive Connectivity Options Engineers will appreciate the controller's extensive communication capabilities, including five LAN ports (three on the front panel and two additional interfaces) supporting 10/100/1000 Mbps speeds. The front panel also hosts two USB ports for convenient local access, while the rear panel includes an RJ45 serial COM port and video display output. Notably, the embedded IICS Cloud Port enables secure remote monitoring and maintenance, a critical feature for modern distributed control systems. Advanced Programming and Memory Features Supporting multiple programming languages including Ladder Diagram, Structured Text, and Function Block Diagram, the IC695CPE400-ABAB adapts to various engineering preferences. Its 64 MB memory efficiently handles up to 768 program blocks (max 128 KB each) while managing 32K discrete I/O points and 32K analog values. The bulk memory (%W) allocation ensures smooth data exchanges between processes, making it ideal for data-intensive applications. Robust Industrial Communication Protocols IC695CPE400-ABAB This controller excels in networked environments with support for PROFINET (8ms fast I/O updates) and SRTP protocols. The intelligent port configuration includes: LAN1 for linear communication LAN2/LAN3 with embedded switching LAN3 specifically optimized for high-speed redundant synchronization The media redundancy protocol on LAN2 enhances network reliability, while all ports accommodate both straight and crossover cables in full/half-duplex modes. Enhanced Security and Operational Features Security takes center stage with trusted platform modules, secure boot functionality, and encrypted firmware updates. The integrated OLED display provides real-time status updates including operational modes, fault alerts, and network information. Six user-accessible pushbuttons and included panel-mount adapter (alternative to DIN rail) ensure flexible installation and operation. Additional features like the micro-SD slot and compatible energy pack (IC695ACC403) extend its capabilities for data logging and backup. Conclusion: Future-Ready Industrial Control The IC695CPE400-ABAB sets a new standard for industrial controllers, blending Emerson's expertise with GE's proven PACSystem architecture. Its combination of processing power, versatile programming, robust connectivity, and advanced security makes it particularly valuable for applications requiring reliable performance in harsh industrial envir...
