Triconex CM3201 Communication Module

Interfaces, Modbus master or slave, selectable RS-232/485 serial ports, TriStation, Triconex Peer-to-Peer,TSAA, and TCP-IP/UDP-IP

The Communication Module (CM) is an optional, three-to-one interface to theMPs. Using a variety of communication methods, protocols, and physical mediatypes, the CM enables communication with:• External host computers• Distributed control systems (DCS)

• Open networks

• Network printer

s• Other Trident systems

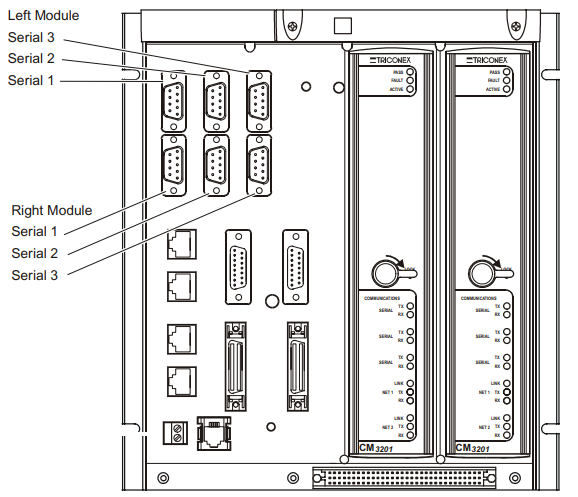

• Tricon V9 systemsA single Trident controller supports up to two CMs on one CM Baseplate.

EachCM operates independently and supports three RS-232/485 serial ports and twoEthernet ports.

Two CMs can provide redundant communication connections oradditional independent communication ports.

The CM Baseplate should be connected directly above or below an MP Baseplate.

Two MP Interconnect Assemblies are required to connect the MP Baseplate to theCM Baseplate.

Communication Capabilities

Each CM provides the following communication capabilities:

• Serial ports

• Network ports

• Protocol support

Serial Ports

Each CM provides three optically isolated RS-232/485 serial ports which are userconfigurable for Modbus point-to-point or multi-point (network) connections.Transmission rates up to 115 kilobits per second per port can be selected.

Network Ports

Each CM provides two network ports:

• One 10-megabit Ethernet port, with two connectors:

– 10BaseT– Attachment unit interface (AUI) for a 10-megabit media access unit(MAU)

• One 100-megabit Ethernet port, with two connectors:

– 100BaseTX

– Media independent interface (MII) for a 100-megabit MAUMAUs may be used in place of the 10/100 BaseT RJ-45 twisted-pair connectionsto convert the CM network ports to other Ethernet media types or to extendnetwork distances.

The Triconex CM3201 Communication Module is part of the Triconex safety systems used in critical applications for industries such as oil and gas, power generation, and chemical processing. It facilitates reliable and high-speed communication between the Triconex system and other systems or devices, ensuring the seamless transmission of data for monitoring and control purposes.

Key Features:
Redundant Configuration: Supports redundancy for enhanced reliability and system integrity.
High-Speed Communication: Designed for fast data transfer to ensure real-time process monitoring.
Protocol Support: Compatible with various communication protocols, enabling integration with different devices and networks.
Secure Data Transfer: Ensures secure and accurate communication between safety controllers and external systems.
Diagnostics: Provides built-in diagnostics for monitoring the health and status of the communication module.
