The Tricon™ platform is the gold standard in safety instrumented systems.
Overview
Based on industry-leading Triconex™ triple modular redundant (TMR) technology, Tricon has logged more than one billion hours with no failure on demand. The Tricon system is certified by TÜV Rheinland for use in safety applications up to Safety Integrity Level 3 (SIL 3). It is also marine-certified and nuclear 1E-certified.
Features
Communications and integration
Online module replacement to ensure continuous operation and plant availability
Integration with EcoStruxure Foxboro DCS and all major distributed control systems (DCSs)
Comprehensive family of I/O modules
Up to 254 nodes of peer-to-peer communications
Achilles Level 1 cybersecurity certification
Maintenance
Built-in diagnostics and redundancy management — transparent to user
Easy diagnostics for status and fault analysis
Online modifications and changes, online module replacement and hot spare slot for continuous production without halting operations
Full set of software tools for every stage of the safety life cycle (TriStation™ suite)
What is the Tricon?
The Tricon is a state-of-the art controller that provides fault tolerance by means of Triple-Modular Redundant (TMR) architecture. TMR integrates three isolated, parallel control systems and extensive diagnostics in one control system. The system uses two-out-ofthree voting to provide high-integrity, error-free, uninterrupted process operation with no single point of failure.

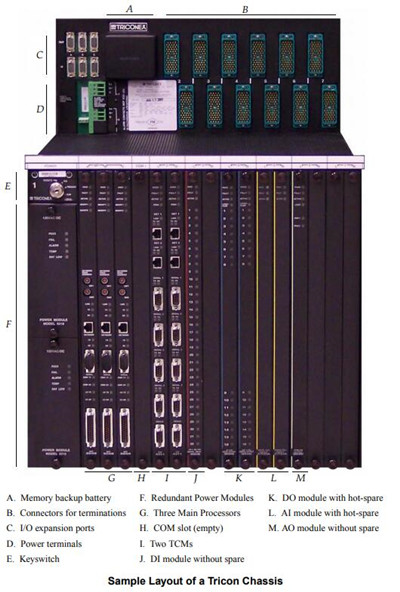

A Tricon system is composed of a main chassis and up to 14 expansion or remote expansion (RXM) chassis. The maximum system size is 15 chassis supporting a total of 118 I/O modules and communication modules that interface with OPC clients, Modbus devices, other Tricons, and external host applications on Ethernet (802.3) networks, as well as Foxboro and Honeywell distributed control systems (DCS).
Get lastest best price by Email plcinfo@mooreplc.com Whatsapp : + 8618020776786
|
Description |
Model No |
|
Chassis Assemblies |
|
|
Main Chassis, High Density Configuration, includes the Tricon printed manuals |
8110 |
|
Expansion Chassis, High Density Configuration |
8111 |
|
Remote Expansion Chassis, High Density Configuration |
8112 |
|
Power Modules |
|
|
120 VAC/VDC – 175-Watt Power Module |
8310 |
|
24 VDC – 175-Watt Power Module |
8311 |
|
230 VAC – 175-Watt Power Module |
8312 |
|
Main Processor Modules |
|
|
3008 Main Processor, 16 megabytes DRAM |
3008 |
|
Communication Hardware and Software |
|
|
Tricon Communication Module (TCM), Ethernet (802.3) and serial (RS-232/RS-485) ports |
4351A, 4352A, |
|
Enhanced Intelligent Communication Module (EICM), serial (RS-232/RS-422/RS-485) ports |
4119, 4119A |
|
Safety Manager Module (SMM), Honeywell UCN Interface |
4409 |
|
Network Communication Module (NCM), Ethernet (802.3) ports |
4329, 4329G |
|
Digital Input Modules |
|
|
115 VAC/VDC Opto-Isolated, Non-Commoned |
TMR 3501E/3501T |
|
48 VAC/VDC Commoned in Groups of 8, Self-Test |
TMR 3502E |
|
24 VAC/VDC Commoned in Groups of 8, Self-Test |
TMR 3503E |
|
24/48 VDC High Density, DC Coupled |
TMR 3504E |
|
Pulse Input Differential, AC Coupled |
TMR 3511 |
|
Digital Output Modules |
|
|
115 VAC Opto-Isolated, Non-commoned |
TMR 3601E/3601T |
|
120 VDC Opto-Isolated, Non-commoned Opto-Isolated, Non-commoned |
3603B, |
|
24 VDC Opto-Isolated, Non-commoned |
TMR 3604E |
|
24 VDC Opto-Isolated, Commoned, Supervised |
TMR 3624 |
|
24 VDC Supervised/Non-Supervised, Commoned |
TMR 3625 |
|
24 VDC Opto-Isolated, Commoned |
Dual 3664 |
|
Relay Output Non-triplicated, Normally Open |
Nontriplicated 3636R/3636T |
|
Analog Input Modules |
|
|
0-5 VDC Differential, DC Coupled |
TMR 3700A |
|
0-5, 0-10 VDC Differential, Isolated |
TMR 3703E |
|
0-5, 0-10 VDC Differential, Isolated |
TMR 3704E |
|
Thermocouple Differential, DC Coupled |
TMR 3706A |
|
Thermocouple Differential, Isolated |
TMR 3708E |
|
0–5 VDC Single-Ended |
TMR 3720 |
|
0 to 5 or –5 to +5 VDC Differential, DC Coupled |
TMR 3721 |
|
Analog Output Modules |
|
|
4-20 mA Current Loop, DC Coupled |
TMR 3805E |
|
4-20 mA and 20-320 mA Current Loop, DC Coupled |
TMR 3806E |
