Honeywell FC-RUSIO-3224 Universal IO modules
The RUSLS-3224 module has 32 universal safe IO channels with configurablechannel function; configuration is done in Safety Builder.The user can assign execution of application logics to the RUSLS-3224 modulefor one or more related FLDs; this is called logic solving. Configuration of logicsolving is done in Safety Builder.The RUSLS-3224 module can be used in applications up to SIL 3, in compliancewith IEC 61508/61511.
The RUSLS-3224 module has the following features:
• 32 universal IO channels that can be configured to control DI, AI, DO, AO
• any type of IO field signal has only to be connected to the two connections ofthe applicable universal channel on the IOTA
• proven-in-use redundant processor concept that complies with the SIL 3safety requirements in single channel operation
• logic solving that enables localized safeguarding of equipment under control(EUC)
• redundant memory for system and application programs
• a dedicated communication link between these processors
• a redundant communication link with the partner module (in redundantconfiguration)
• an Ethernet-based SM RIO link to the SM Controller in the network viadedicated switches; the SM RIO link uses a dedicated protocol
• monitoring the temperature of the electronics
• a configurable ESD function via channel 32 for dedicated safety relatedfunctions
• function-tested watchdogs that: monitor and/or handle:- monitor cycle time and supply voltage- handle the ESD function and memory errors

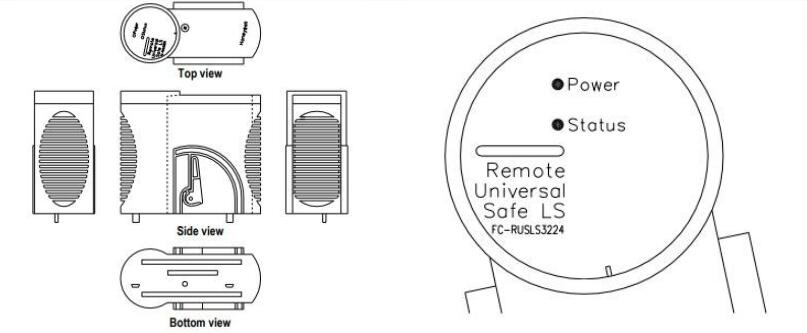

• LED indicators at the front of the module for power and health statusindication
• real-time clock for Sequence Of Event (SOE) time stamping with a resolutionof 1 msec
Logic solving
The RUSLS-3224 module is capable of logic solving. Logic solving by themodule enables localized safeguarding of equipment under control (EUC). This isachieved by the execution of the application logic (FLDs) that is assigned to themodule. Configuration of Remote Universal Safe Logic Solving is done in SafetyBuilder; for relevant details see the Software Reference.Localized safeguarding offers distinct benefits. A major advantage is that logicsolving by the RUSLS-3224 module is unaffected when:
• communication with Safety Manager is lost,
• Safety Manager experiences a shutdown.
|
Specification |
Details |
|
Manufacturer |
Honeywell |
|
Product Number |
FC-RUSIO-3224 |
|
Product Type |
Remote Universal Safe IO device (32 channels, 24 Vdc) |
|
Operating Temperature (Outside Module) |
–40°C to +70°C (–40°F to +158°F) |
|
Operating Temperature (Inside Module) |
–40°C to +90°C (–40°F to +194°F) |
|
Storage Temperature |
–40°C to +85°C (–40°F to +185°F) |
|
Relative Humidity |
10% to 95% (non-condensing) |
|
Pollution Degree |
Pollution degree 2 or better |
|
Approvals |
CE; UL, TUV pending |
|
Supply Voltage |
24 Vdc, -15% to +30% |
|
Supply Current |
Max 300mA (without field load) |
|
Reverse Polarity Protection |
Parallel diode (blows the fuse) |
|
Dimensions (L x W x H) |
7.24 cm x 16.51 cm x 14.5 cm |
|
Weight |
0.7 Kg |
|
