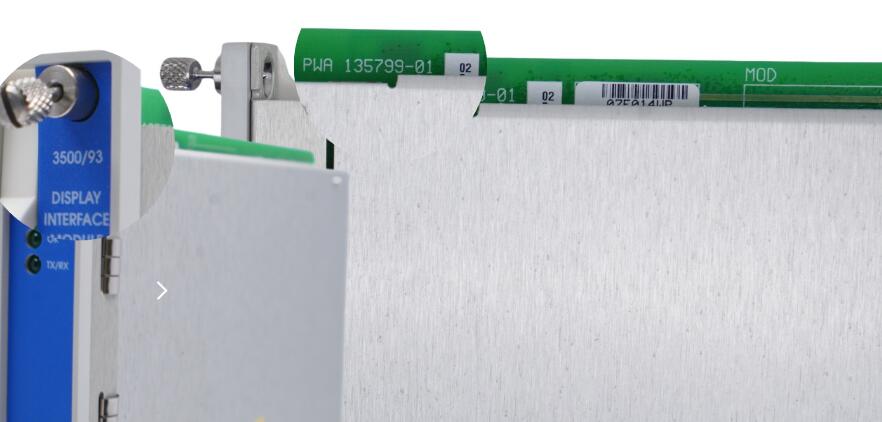

The 3500/93 135799-01 Display Interface Module is an essential component in the Bently Nevada 3500 Machinery Protection System, designed to meet the stringent requirements of the American Petroleum Institute (API) Standard 670. It provides local or remote visual indication of critical system data, including system event lists, alarm event lists, and detailed information from various modules within the rack, such as channel, monitor, relay, Keyphasor, and tachometer modules.

Key Features:

API 670 Compliance: Ensures the display meets industry standards for machinery protection.
Display Information: Provides access to all data within the 3500 rack, including event lists, alarm lists, and real-time channel data.
Rack Configuration Software: The display is configurable via the 3500 Rack Configuration Software, allowing users to easily customize the display for their specific system setup.

Mounting Options:

Face Mounting:
- Mounting Location: Directly over the front panel of a full-size 3500 rack.
- Support: Hinged support allows easy access to buffered output connectors and user-interface buttons without disconnecting the display.
- Requirement: The Display Interface Module (DIM) must be installed in slot 15 for face mounting.
- Compatibility: Not compatible with the 3500 Mini-rack.
19-Inch EIA Rack Mounting:
- Mounting Distance: Can be mounted up to 100 feet away from the 3500 System.
- Extended Distance: With the use of an external power supply, the display can be mounted up to 4000 feet away.
Panel Mounting:
- Panel Cutout: The display can be mounted in a panel cutout within the same cabinet or up to 100 feet away from the system.
- Extended Distance: With an external power supply, the mounting distance can be extended up to 4000 feet.
Independent Mounting:
- Flush Mounting: The display can be mounted flush against a wall or panel.
- Mounting Distance: Similarly, it can be located up to 100 feet away, or up to 4000 feet with the use of an external power supply.

This flexibility in mounting options ensures the 3500/93 Display can be conveniently positioned based on user requirements, whether installed locally or remotely.
